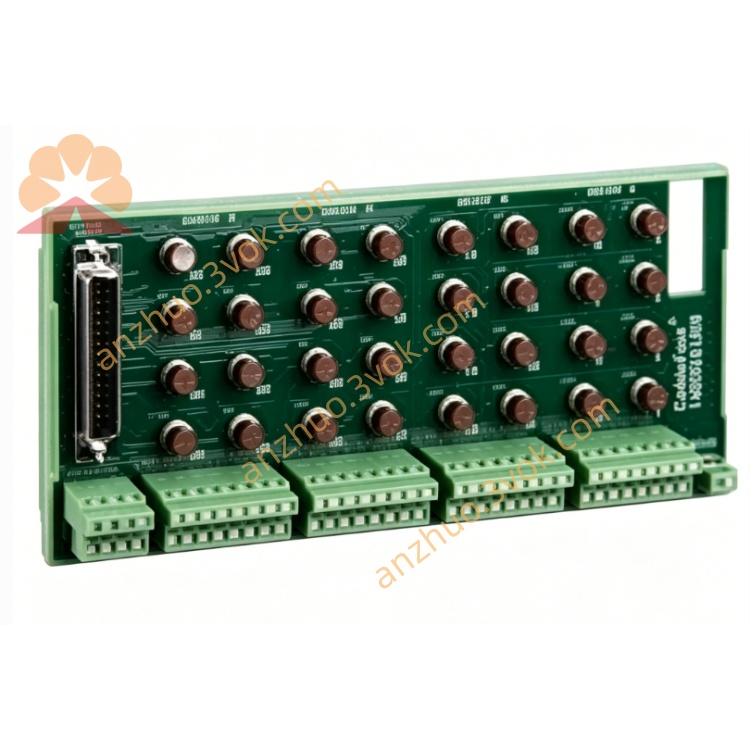

140CFE03200
Modicon Quantum CableFast Terminal Block
General Information
Manufacturer: Schneider Electric
Model: 140CFE03200
Product Type: 32 Points Fused Digital Output Terminal Block
Applicable System: Modicon Quantum 140 Series PLC
Product Description
140CFE03200 is a DIN rail installed CableFast wiring terminal block specially designed for digital output signals. It adopts 4 groups layout with 8 points per group, equipped with built-in group fuse protection. It connects with Quantum I/O modules through standard D-Sub 50 cable, realizing quick wiring for 32-channel digital output signals, simplifying internal cabinet wiring and facilitating daily maintenance and circuit inspection.
Main Technical Specifications
Channel Quantity: 32 digital output points
Group Division: 4 groups, 8 channels per group
Connection Port: 1 piece D-Sub 50 pin interface
Field Terminal: Anti-loose screw terminal
Protection Mode: Built-in group fuse overcurrent protection
Installation Method: Standard 35mm DIN rail mounting
Working Temperature: 0℃ ~ +60℃
Storage Temperature: -40℃ ~ +85℃
Protection Level: IP20
Applicable Wire Specification: 0.2~4mm²
Core Features
Fast CableFast connection design, greatly shorten wiring cycle
Independent group fuse design can effectively protect field loads and PLC modules
Firm screw terminal design, suitable for vibration industrial environment
Reasonable terminal layout with clear marking, convenient wiring and troubleshooting
Compact overall structure, save installation space inside control cabinet
Good anti-interference performance, ensure stable output signal
Application Range
It is widely matched with all kinds of Quantum digital output modules, used in industrial automation, water treatment, electric power, chemical industry and other fields to control on-site actuators such as solenoid valves, relays, indicator lights and contactors.
Compatibility
Compatible with Modicon Quantum 140 series digital output modules via special connecting cables. It is not applicable to analog modules, temperature modules and other special function modules.
