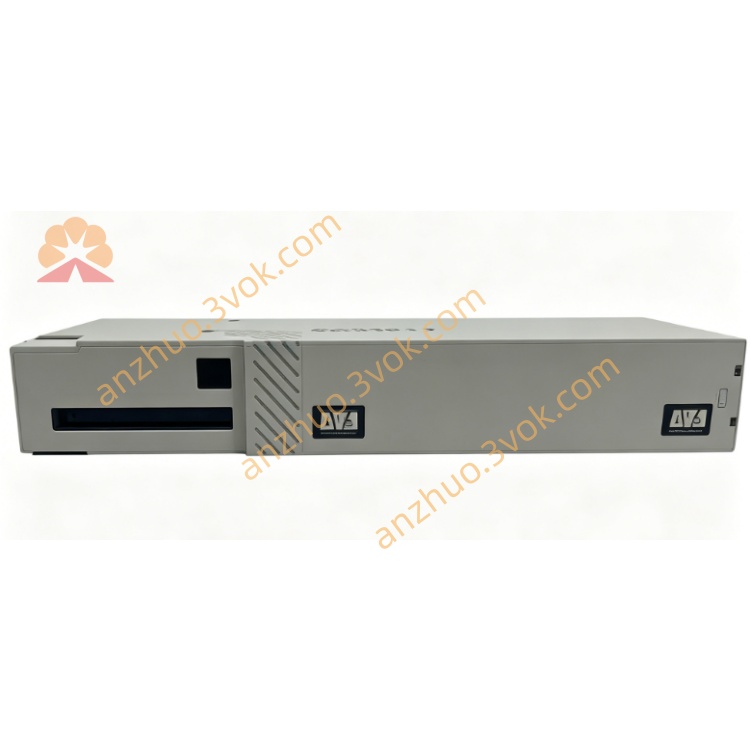

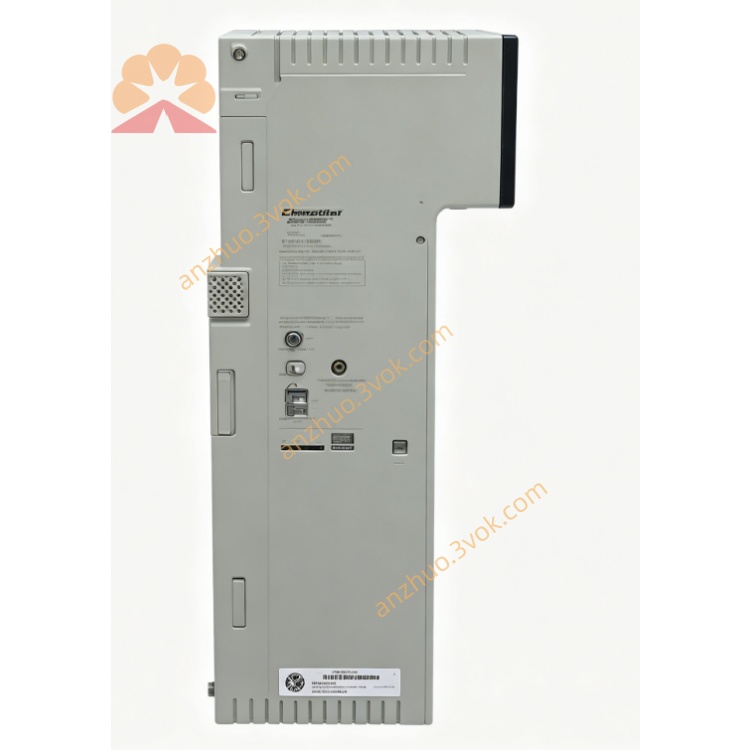

140AVI03000C

Modicon Quantum Analog Input Module

General Information

Product Description

Main Technical Specifications

1. Input Channels: 8 isolated differential analog input channels

2. Optional Signal Range

   Voltage: 0-5V, 0-10V, ±5V, ±10V

   Current: 0-20mA, 4-20mA, ±20mA

3. Resolution: 16 bits

4. Basic Accuracy: ±0.05% full scale at 25℃

5. Input Impedance: Above 20kΩ for voltage signal, 250Ω for current signal

6. Maximum Conversion Time: 10ms per channel

7. Withstand Isolation Voltage: 1780V AC for one minute

8. Module Power Consumption: 2.2W

9. Backplane Bus Current: 280mA

10. Built-in low-pass filter to ensure stable signal acquisition

Core Functions

1. Support various universal industrial voltage and current signals

2. Differential input design with strong common mode rejection capability

3. Automatic detection of channel open circuit and short circuit faults

4. LED indicators display module operating status and channel fault alarm

5. All signal ranges can be set freely through programming software

6. Built-in overvoltage and overcurrent protection circuit

7. Conformal coating design for better environmental adaptability

Environmental Parameters

1. Operating Temperature: 0℃ ~ +60℃

2. Storage Temperature: -40℃ ~ +85℃

3. Relative Humidity: 5% ~ 95%, non-condensing

4. Maximum Working Altitude: 5000 meters
