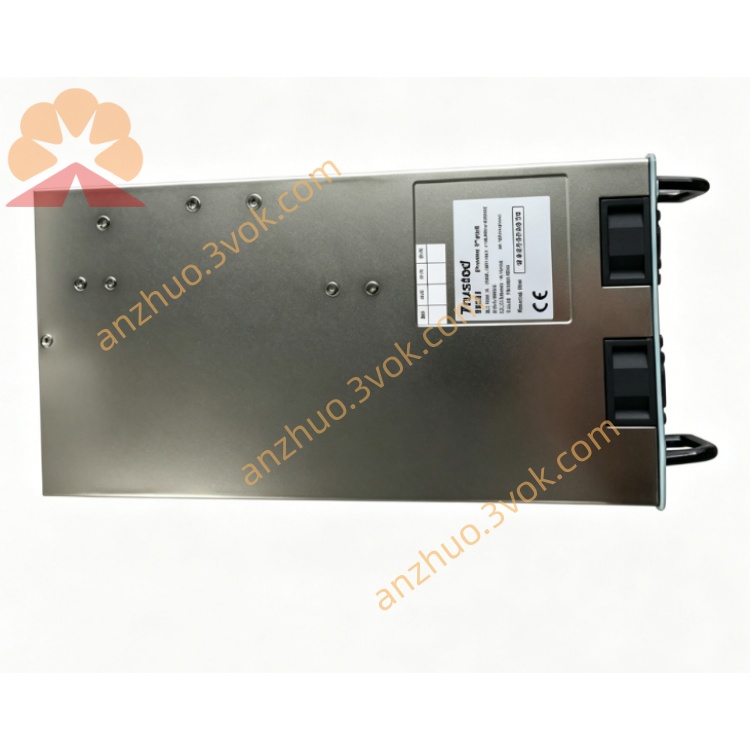

• Architecture: Full TMR (3‑channel per output, 2‑out‑of‑3 voting)

• Safety: IEC 61508 SIL 3, TÜV certified; single‑point failure immune

• Channels: 32 isolated digital outputs (sink, 24 V DC)

• Hot‑Swap: Online replacement without shutdown

• Diagnostics: Per‑channel short‑circuit/overload detection, line monitoring

• Backplane: Trusted T8100/T8300 compatible

2. Specifications

2.1 Electrical

• Output Voltage: 24 V DC nominal (backplane‑powered, 20–32 V DC)

• Output Type: Sink (current flows into module; load between +24 V and output)

• Channel Isolation: 2500 V DC (field ↔ system; channel‑to‑channel)

• Output Current:

  • Per Channel: 0.5 A max (continuous)

  • Total Module: 10 A max

• On‑State Resistance: <0.5 Ω

• Leakage Current: <100 µA (off state)

• Response Time: ≤4 ms (per channel)

• Protection: Per‑channel electronic overcurrent, short‑circuit, overtemperature (auto‑reset)

• Backplane Voltage: 20–32 V DC

2.2 Environmental

• Operating Temp: –20 °C to +60 °C

• Storage Temp: –40 °C to +85 °C

• Humidity: 5–95 % RH (non‑condensing)

• Altitude: Up to 2000 m

• Vibration/Shock: IEC 60068‑2‑6/27 (industrial)

• Protection: IP40 (chassis mounted)

2.3 Mechanical

• Form Factor: Single‑width module

• Dimensions (H×W×D): 266 mm × 61 mm × 318 mm

• Weight: ~1.8 kg

• Mounting: Slides into chassis guides; front latch secured

• Field Connector: Rear DIN41612 (32‑pin; 2×16 channels)

• Backplane Connector: Trusted TMR backplane

3. Installation

3.1 Module Insertion (Hot‑Swap Enabled)

1. Select empty single‑width slot in T8100/T8300; remove blank panel.

2. Align T8231 with chassis guides; push firmly until seated.

3. Secure front latch.

4. Confirm PWR and OK LEDs (steady green = healthy).

3.2 Field Wiring (32 Sink Outputs)

• Connector: Rear DIN41612 (pins 1–32; CH01–CH32)

• Wiring Scheme (Sink):

  • +24 V: External positive to load (solenoid/relay coil)

  • CHxx: Load negative → module output (sink)

  • GND: Field/common ground

• Cable: 18–22 AWG stranded, shielded (Belden 8760 or equivalent)

• Shielding: Connect field shield to system earth at one point only (chassis PE)

• Fusing: External 0.5–1 A fuse per channel recommended (field side)

3.3 Backplane & Grounding

• Backplane: Redundant 24 V DC power + TMR communication

• Grounding: Chassis PE to system earth; field GND isolated from chassis GND

4. Configuration (Trusted Workbench)

1. Connect PC with Trusted Workbench.

2. Select T8231 in hardware tree.

3. Set global parameters:

   • Output Mode: Sink (fixed for T8231)

   • Fault Response: Latch / Auto‑reset

   • Diagnostics: Enable short‑circuit/overload detection

4. Download configuration to module.

5. Front Panel Indicators

• PWR (Green): Steady = Normal; Flashing = Backplane power fault

• OK (Green): Steady = TMR vote healthy; Flashing = Single‑channel fault

• FAULT (Red): On = Overcurrent/short circuit; Flashing = Isolation fault

• CH01–CH32 (Yellow): On = Output active (ON); Off = Output inactive (OFF)

6. Operation

6.1 Normal Operation

• T8231 uses TMR 2‑out‑of‑3 voting: each output command executed by three independent circuits; voted result drives field device.

• Diagnostics monitor all channels; faults logged to system alarm list.

6.2 Fault Tolerance & Hot‑Swap

• Single‑Channel Fault: System runs on two healthy circuits; OK LED flashes.

• Module Failure: Hot‑swap replacement allowed; system online during swap.

• Field Fault: Short/overload triggers FAULT LED; channel disabled (configurable).

7. Maintenance & Troubleshooting

7.1 Routine Maintenance

• Quarterly: Inspect seating, latch tightness, LED status.

• Annually: Clean with dry, lint‑free cloth; check cable connections and torque.

• Diagnostics: Use Trusted Workbench to review fault logs and channel status.

7.2 Common Faults

• PWR LED Off: Check backplane voltage (20–32 V DC); reseat module.

• FAULT LED On: Identify shorted/overloaded channel via diagnostics; disconnect load and test; check external fuses.

• OK LED Flashing: Single TMR channel fault; replace module at next scheduled maintenance.

• CH LED On but Load Inactive: Verify +24 V supply to load; check wiring and load integrity.

• CH LED Always Off: Confirm output command from controller; check channel diagnostics.

8. Safety & Compliance

• Install only in Trusted T8100/T8300 safety chassis.

• Disconnect field power before wiring (except hot‑swap replacement).

• Use shielded cables; comply with IEC 61000‑6‑2/4.

• Compliant with: CE, UL, CSA, IEC 61508 (SIL 3), TÜV certified.
