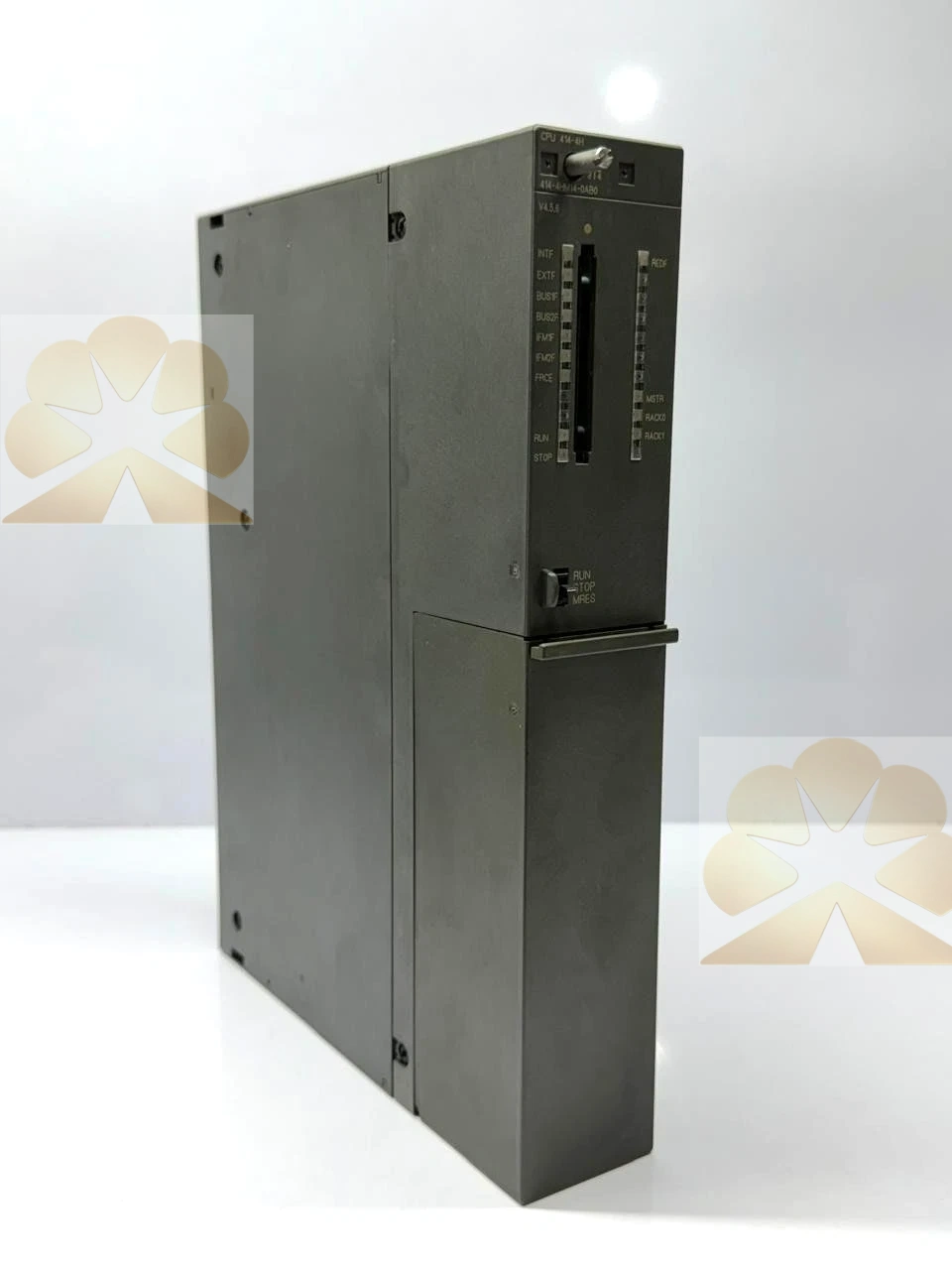

Siemens 6ES7414-4HM14-0AB0 SIMATIC S7-400H CPU Product Description

Overview

Siemens 6ES7414-4HM14-0AB0 is a SIMATIC S7-400H redundant CPU for fault-tolerant PLC systems. This 6ES7414-4HM14-0AB0 is the CPU 414-4H module, designed for hot-standby redundant control, widely used in petrochemical, power, SIS and critical production lines for high availability automation, for new redundant system construction, upgrade and spare‑part replacement of S7‑400H systems.

Features

Siemens 6ES7414-4HM14-0AB0 supports S7-400H hot standby redundancy, two synchronized CPUs run the same program; if the master fails, the slave switches over automatically without program interruption. This CPU 414-4H works with synchronization modules and optical fiber sync links for fast state synchronization. 6ES7414-4HM14-0AB0 supports STEP 7 V5.x / TIA Portal, compatible with PROFIBUS DP, PROFINET and industrial Ethernet. It has integrated process data memory, program memory, and supports F-program safety version for Failsafe safety control. It supports redundant communication with distributed ET200M, ET200SP HA I/O stations. Self-test, watchdog and data consistency check ensure reliable operation; it records diagnostic, interrupt and redundancy status information. It complies with IEC 61131-2, IEC 61508 and carries CE, UL, cULus certifications.

Specs

• Brand: Siemens

• Series: SIMATIC S7-400H

• Model: 6ES7414-4HM14-0AB0

• Type: Redundant CPU 414-4H

• Interface: Integrated MPI/DP port

• Redundancy: Hot standby, optical sync link

• Programming: STEP7, TIA Portal

• Mounting: S7-400 UR rack slot

• Application: High availability, fault tolerant control

• Standard: CE, UL, cULus

Principle

Siemens 6ES7414-4HM14-0AB0 executes user logic, process interlock and calculation. Two paired 6ES7414-4HM14-0AB0 CPUs continuously sync internal state, I/O image and timer data via fiber sync modules. The master CPU controls I/O; the slave keeps synchronized and does not output. When master CPU, power supply or rack fault occurs, the system triggers bumpless switchover to the standby CPU within milliseconds. The redundant I/O system continues to read field signals and execute control actions. Diagnostic messages are sent to HMI/SCADA for maintenance prompt.

Applications

Siemens 6ES7414-4HM14-0AB0 is deployed in chemical process plants, power station auxiliary systems, oil & gas skids, water treatment critical units and safety-related control systems. This redundant S7‑400H CPU prevents production shutdown caused by single controller failure. 6ES7414-4HM14-0AB0 fits redundant PLC overhaul and spare replacement of S7‑400H fault-tolerant controllers.

Installation & Maintenance Notes

Follow official Siemens S7-400H manual during installation of 6ES7414-4HM14-0AB0. Use ESD protection before handling the module. Back up hardware configuration, user program, safety F-runtime and redundant parameters before replacement. After replacement, download the project, set MPI address and verify redundancy synchronization. Check sync fiber cleanliness, rack power health and diagnostic buffer regularly. Confirm exact part number 6ES7414-4HM14-0AB0; non-H CPU variants cannot substitute for redundant applications.
