Eaton CKDPV4300W PVGard DC Molded Case Circuit Breaker Product Description

Overview

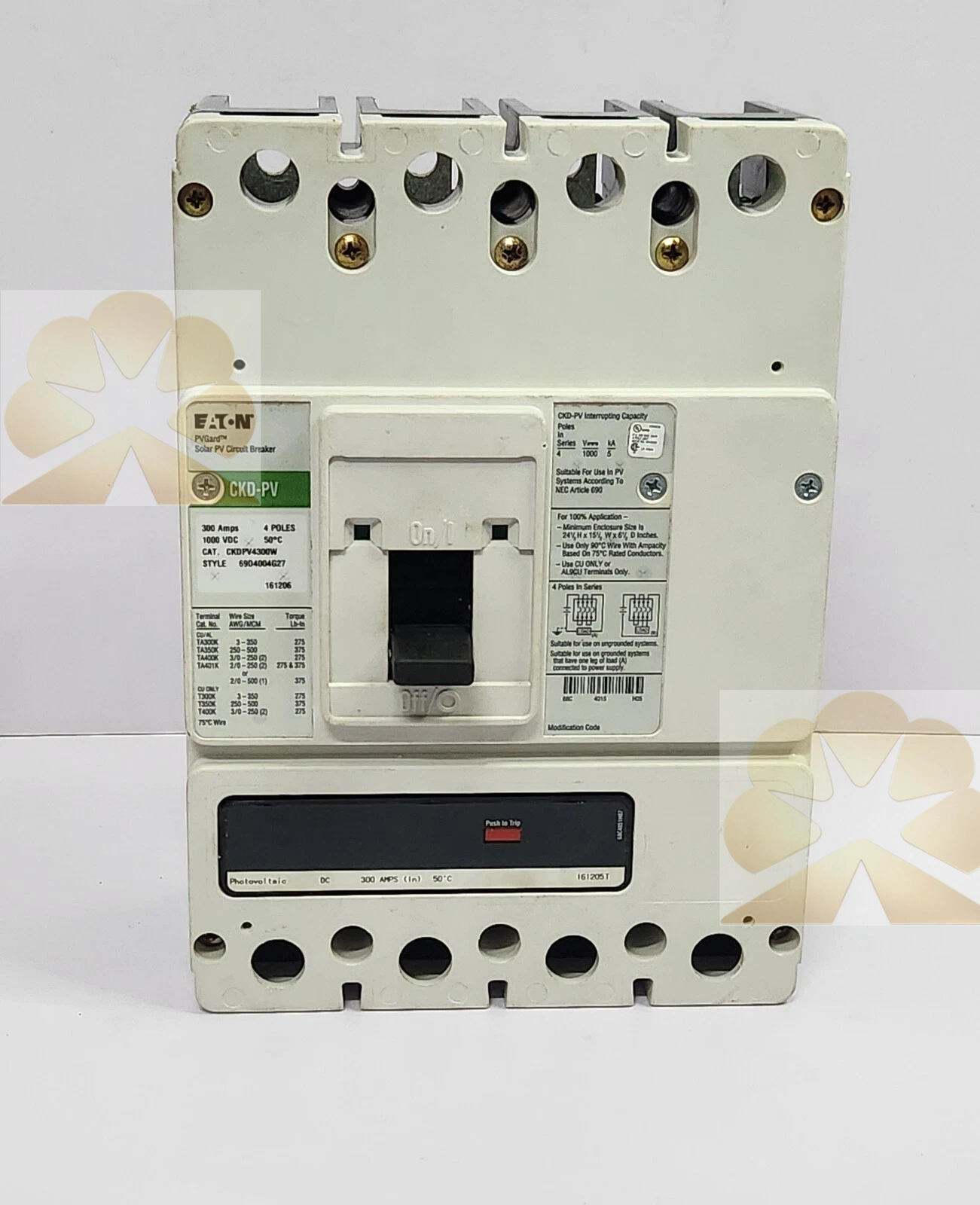

Eaton CKDPV4300W is a PVGard CKD series DC molded case circuit breaker (MCCB) designed for photovoltaic DC combiner box and battery energy storage circuits. This Eaton breaker is K-frame, 4-pole, 300 A rated, 1000 V DC rated voltage, fixed thermal-magnetic trip type, 100% rated for continuous DC duty. CKDPV4300W is widely used for solar array main DC feeder protection, energy storage cabinet DC loop protection, for new photovoltaic station construction and spare‑part replacement of PVGard DC breakers.

Features

Eaton CKDPV4300W adopts DC optimized arc extinguishing system for safe breaking of DC fault current without current zero crossing. This Eaton PV breaker has fixed thermal-magnetic trip: thermal element for overload protection, magnetic element for short-circuit instantaneous protection. CKDPV4300W is 100% current rated for DC continuous operation, no extra derating required under specified ambient conditions. It supports grounded and ungrounded PV DC system configuration, and complies with UL 489B photovoltaic DC breaker standard. Optional accessories include auxiliary contacts, alarm contacts and rotary handle for local operation.

Specs

• Brand: Eaton (伊顿)

• Series: PVGard CKD

• Model: CKDPV4300W

• Rated current In: 300 A

• Poles: 4P

• Rated DC voltage Ue: 1000 V DC

• Isc short-circuit breaking capacity: 5 kA

• Trip type: Fixed thermal-magnetic

• Rating: 100% rated continuous DC duty

• Mounting: Fixed mounting

• Standard: UL 489B

• Application: Photovoltaic DC, battery storage DC distribution

Principle

Eaton CKDPV4300W uses bimetallic thermal element to respond to long-time overload current and trigger delayed trip. Magnetic trip coil responds to large short-circuit fault current and triggers instantaneous trip. The special DC arc chute elongates, cools and deionizes DC arc rapidly when contacts separate to isolate the DC fault circuit. Auxiliary contacts synchronously output breaker status signals to PLC or combiner box monitoring unit.

Applications

Eaton CKDPV4300W is deployed in large-scale photovoltaic combiner cabinets, solar inverter DC side feeders and battery energy storage low‑voltage DC distribution cabinets. This Eaton DC breaker protects PV strings and battery main loops against overload and short-circuit faults. CKDPV4300W fits PV station overhaul and spare replacement of PVGard CKD series DC molded case breakers.

Installation & Maintenance Notes

Follow official Eaton PVGard CKD hardware manual during installation of CKDPV4300W. Strictly confirm DC polarity before powering on; reverse polarity will cause abnormal tripping or damage. Torque DC cable terminals to specified torque value to avoid overheating. Before replacement, confirm the DC system voltage and grounding scheme. After replacement, perform insulation resistance test and closing operation check. Confirm exact model CKDPV4300W, pole number and DC breaking rating before spare‑part swap‑out.
