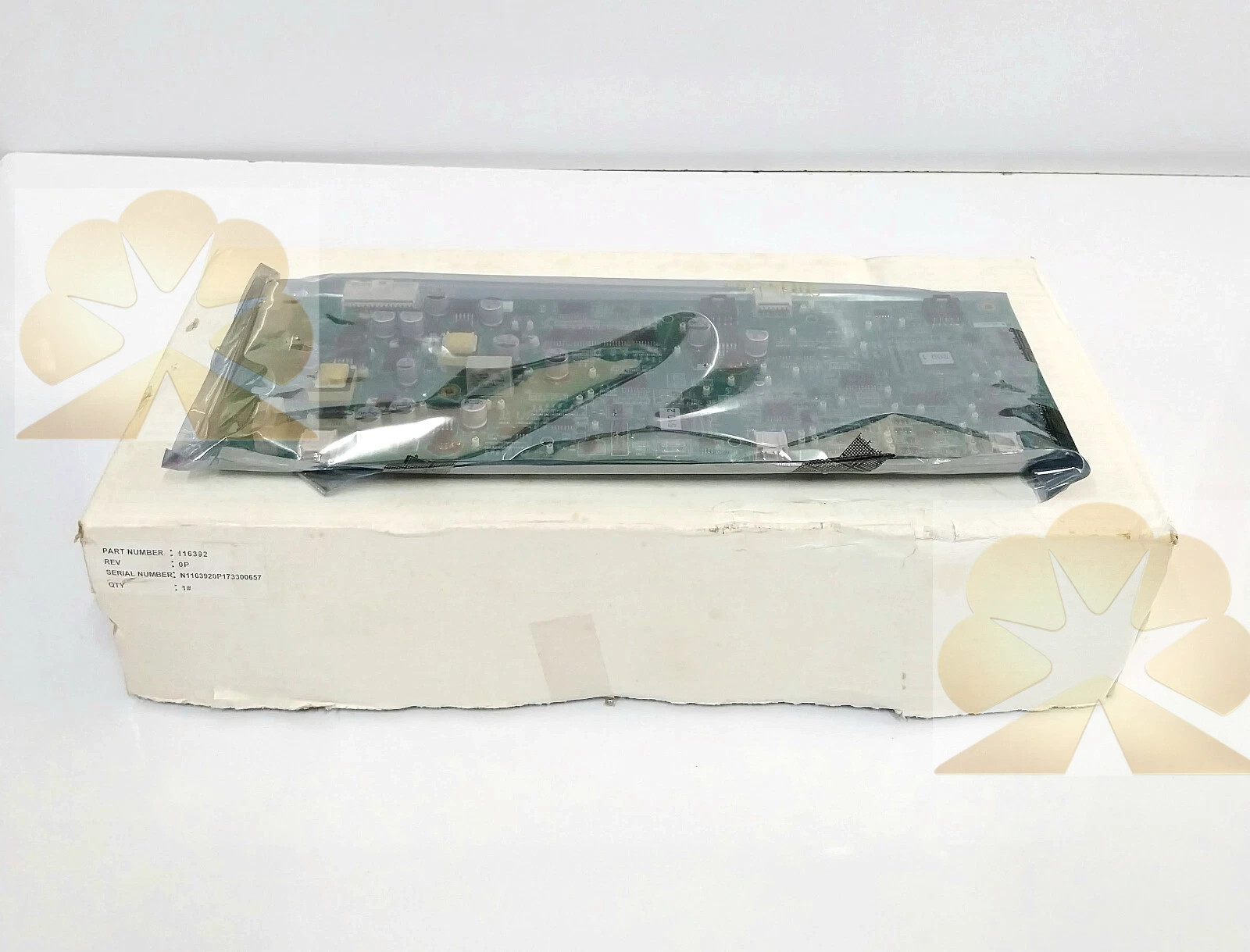

116392 N1163920P173300657 Custom OEM Subassembly Product Description

Overview

116392 is the base item code, N1163920P173300657 is the full OEM drawing / configuration reference number. This is a non-standard catalog custom spare assembly, without public standard datasheet. It is generally a signal conditioning PCB, interface board, adapter or internal wiring subassembly for genset control cabinets, turbine monitoring racks, welding control systems or industrial automation control racks. It is a project-locked legacy spare and only supports direct replacement for the identical unit on the original host equipment.

Features

This assembly integrates signal filtering, isolation and level conversion circuits defined by the OEM drawing revision N1163920P173300657. It transmits analog/digital field signals and bus handshake data between field sensors/actuators and the main controller. 116392 N1163920P173300657 has built-in hardware diagnostic logic for overvoltage, open circuit and communication signal loss. Shielded control wiring is mandatory to suppress EMI interference in high-noise cabinet environments. Hot-swap capability depends on the original rack architecture; pin assignment, component layout and firmware are bound to this full part number.

Specs

• Base code: 116392

• Full reference part number: N1163920P173300657

• Type: Custom OEM interface PCB / subassembly

• Power rating, I/O definition: Follow OEM machine drawing

• Mounting: Rack slot / screw mounting inside control cabinet

• Status: Legacy project spare, no universal datasheet available

• Replacement rule: Full part number and drawing revision must match exactly; different revision cannot be interchanged

Principle

116392 N1163920P173300657 receives raw process signals or backplane bus commands. The onboard circuit isolates, filters and converts signal levels, then forwards processed signals to the main processor. When hardware damage or abnormal signal is detected, it sends a fault flag to the host controller to trigger alarm or safe stop sequence.

Applications

Commonly used as spare parts on turbomachinery monitoring racks, diesel generator control cabinets, SIS safety control cabinets and resistance welding control racks. 116392 N1163920P173300657 can only replace the identical unit on the original machine.

Installation & Maintenance Notes

Follow the OEM service drawing N1163920P173300657 during replacement. Take ESD protection before handling the circuit board. Record all wiring mapping before disassembly. After installation, complete signal loop test and communication verification. Back up controller configuration and interlock parameters before swap. Confirm the full part number 116392 N1163920P173300657 matches perfectly.
