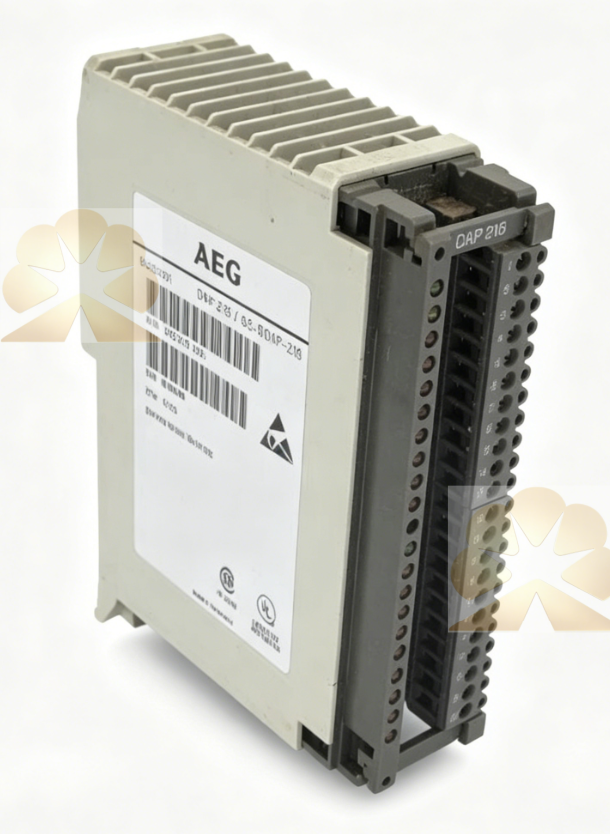

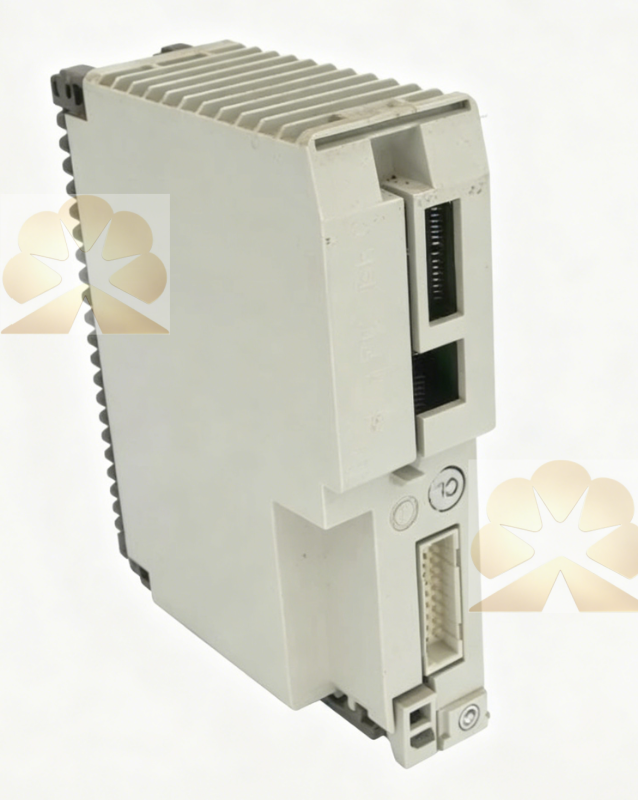

MODICON AS-BDAP-216 Discrete Output Module

MODICON AS-BDAP-216 is a high-performance output module for Modicon A120 / TSX Compact PLC automation systems. This output module provides 16 isolated 24VDC discrete outputs, divided into two groups of 8 channels, 0.5A per channel. The output module adopts group isolation circuit and anti-interference PCB layout. This output module supports stable continuous operation in packaging, metallurgy, water treatment and general discrete automation production lines.

It serves as a core switch actuator to convert PLC logic signals into 24VDC switching signals for field actuators. The switch actuator drives solenoid valves, indicator lights, contactor coils and small DC loads. This switch actuator has independent channel grouping protection to avoid fault spread between channels. The switch actuator is fully compatible with Modicon A120 rack PLC systems.

The unit delivers dependable DC switching control for on-off interlock and sequence control applications. Accurate DC switching control ensures fast response and reliable actuation of field devices. Stable DC switching control reduces surge damage and extends the service life of peripheral components. The DC switching control of this model meets strict industrial automation standards.
