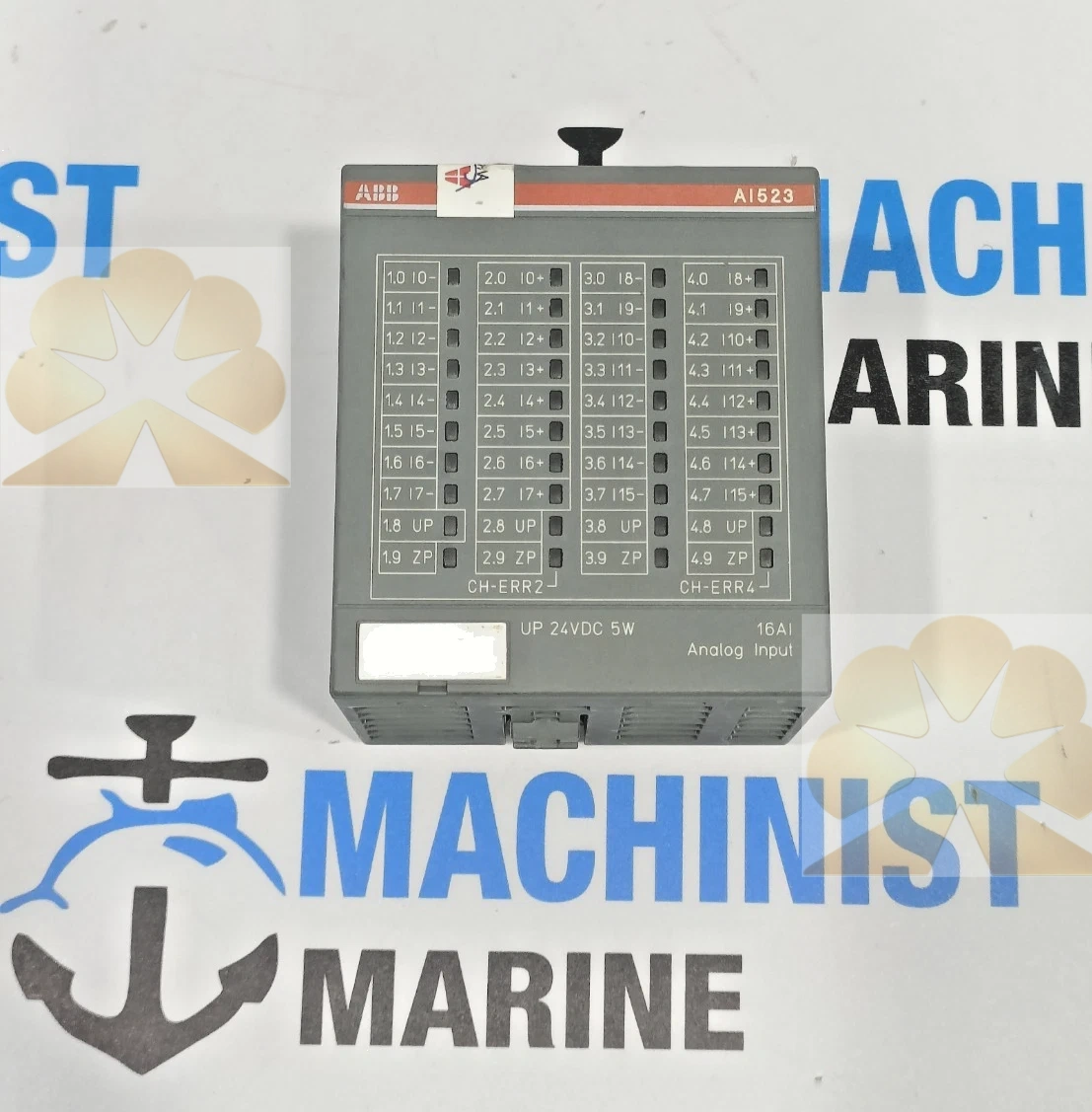

ABB AI523 1SAP250300R0001 ANALOG INPUT MODULE

ABB AI523 is a compact S500 series 16-channel analog input module for ABB AC500 PLC distributed automation systems. This 16-channel analog input module supports voltage, current and RTD Pt100 temperature measuring signals, with 12-bit resolution including sign, compatible with 2-wire field transmitters. This 16-channel analog input module works on 24VDC power supply and connects to the S500 fieldbus terminal base for rack installation inside control cabinets. This 16-channel analog input module collects multi-point process measuring data and transmits digital values to the AC500 main CPU.

This unit is a vital industrial automation spare part for factory and marine control cabinet overhaul. The industrial automation spare part acquires 4‑20mA, 0‑10V and thermal resistance signals from pressure, temperature, level and flow sensors. The industrial automation spare part adopts parameter configuration for different sensor types, enabling flexible field instrument matching. The industrial automation spare part can replace faulty module to restore analog signal acquisition for distributed process monitoring.

It delivers reliable multi-channel analog field signal processing for industrial automation systems. The multi-channel analog field signal processing converts continuous analog measuring signals into digital data for PLC logic calculation. The multi-channel analog field signal processing filters electromagnetic interference to guarantee stable measuring accuracy. The multi-channel analog field signal processing supports continuous sampling and alarm generation when process parameters exceed safe thresholds.

ABB AI523 1SAP250300R0001 belongs to S500 I/O series, widely used in water treatment, power plants, chemical and marine engine room monitoring systems. It is original ABB analog input module for AC500 distributed PLC system.
