Galil Motion Control ICM-1100 Brand Introduction Galil Motion Control ICM-1100 is ICM series motion interconnect breakout module developed by Galil for multi-axis servo motion control wiring conversion applications. It specializes in converting ribbon cable interface of DMC-1000/DMC-1300/DMC-1500 motion controllers to screw terminal connections, serving as metal plate mounted signal breakout assembly for packaging machinery, robotics, CNC automation and multi-axis positioning control systems.

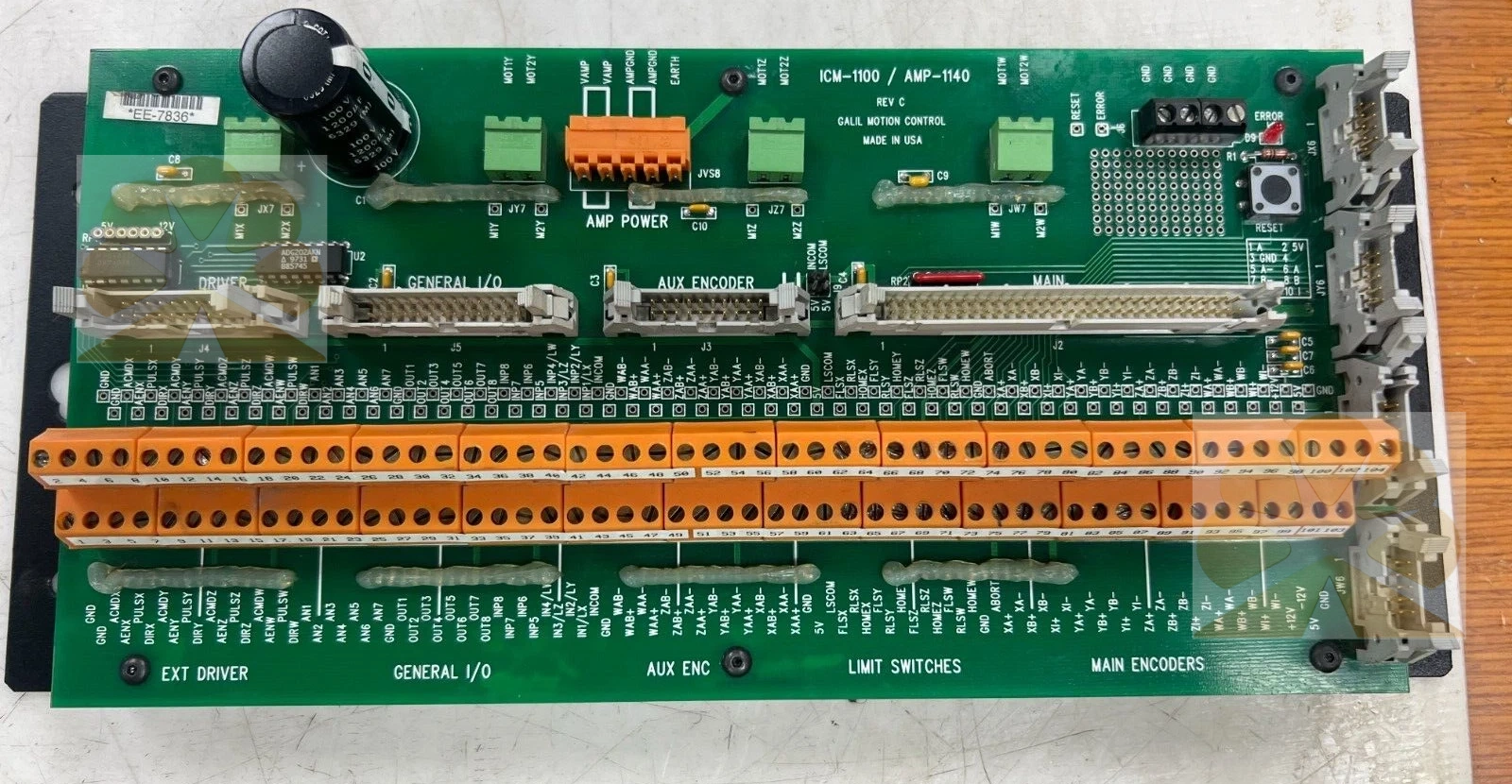

Motion Interconnect Module is the core unit of Galil Motion Control ICM-1100. Motion Interconnect Module adopts PCB board fixed on metal mounting plate, equipped with 60pin,26pin and dual 20pin IDC ribbon connectors and labeled screw terminal blocks. Motion Interconnect Module routes encoder signals, limit inputs, home signals, enable and analog command signals for up to 4 axes, reserved jumpers for 5V power distribution to limit and input circuits, optional HAEN high amp enable or LAEN low amp enable hardware version. Each 4-axis motion system requires one ICM-1100 for convenient wiring and field maintenance.

Galil Motion Control ICM-1100 provides stable Drive for workshop field multi-axis motion signal transmission control. Drive supports continuous long-term signal transmission for servo loops. Drive features clearly marked terminal layout to reduce wiring error during commissioning. Drive adopts industrial grade signal routing design to minimize crosstalk between encoder and command signals.

Galil Motion Control ICM-1100 features reliable Transmission for Galil motion controller, servo amplifiers, encoders and limit switches. Transmission communicates via ribbon cable and screw terminal wiring. Transmission is fully compatible with Galil DMC series motion controllers and AMP-1100 servo amplifier modules. Transmission distributes motion command, feedback and safety I/O signals to realize closed-loop positioning, speed and torque control of multi-axis servo system.

Galil Motion Control ICM-1100 is widely used in automatic assembly equipment, laser cutting machine, material handling robots, semiconductor positioning platforms and legacy multi-axis motion control system renovation. With mature Galil high-precision motion control technology, this interconnect module works within ambient temperature range 0~50℃ and has strong anti-vibration and stable signal transmission performance. It provides full lifecycle technical support including plate mounting, wiring check, signal debugging and after-sales maintenance, serving global users as a trusted ICM series 4-axis motion interconnect breakout module solution.
