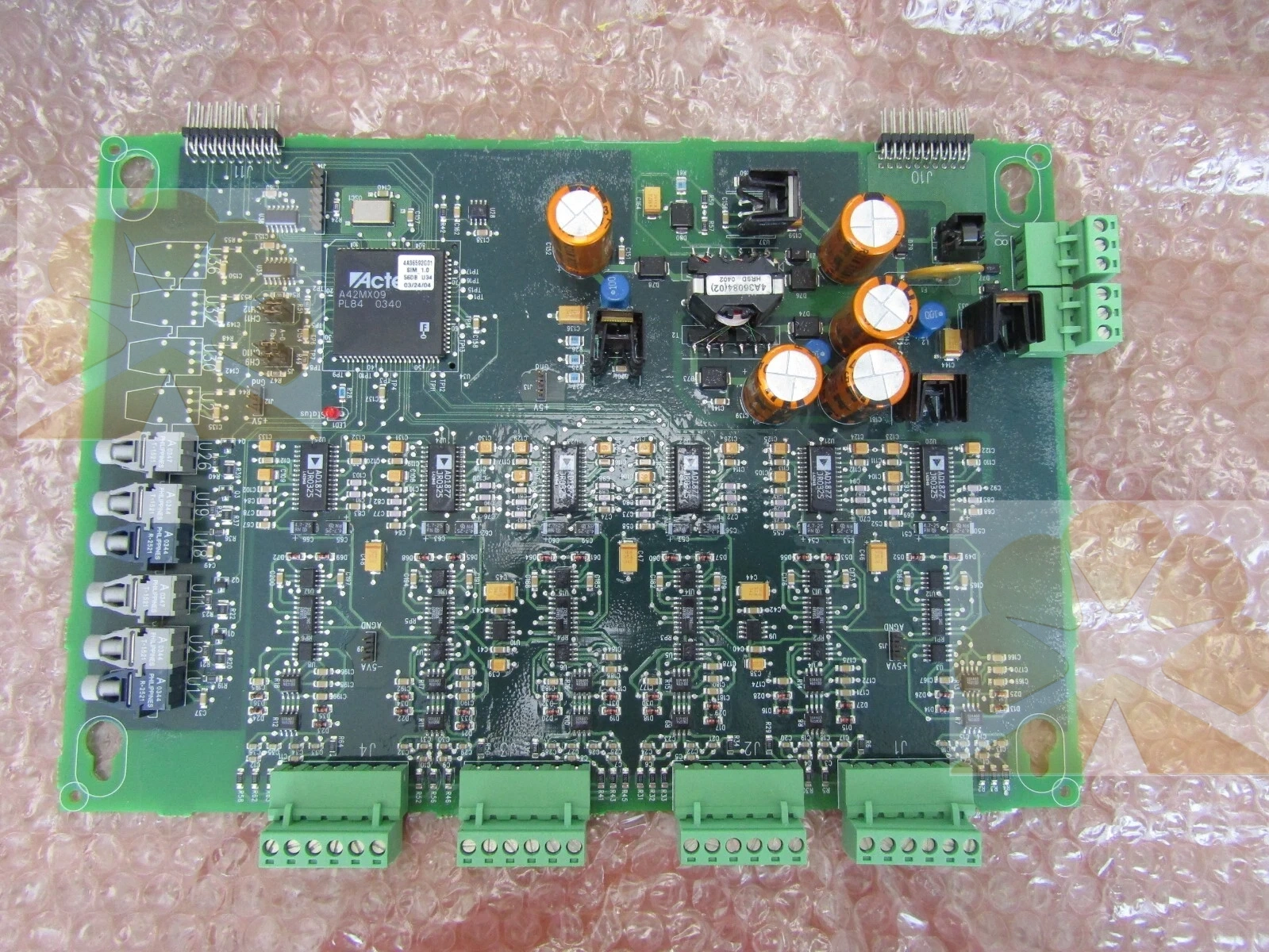

Eaton 8650C74 Brand Introduction

Eaton 8650C74 is sensor input module board developed by Eaton for industrial machinery monitoring and control applications. It specializes in collecting multi-channel field sensor signals and transmitting processed data to main controller, serving as rack-mounted signal acquisition assembly for power, marine and heavy industry control systems.

Sensor Input Module is the core unit of Eaton 8650C74. Sensor Input Module adopts printed circuit board with metal shielding structure and standard backplane connector design. Sensor Input Module supports multi analog and discrete sensor input channels, converts raw field signals into digital data. Sensor Input Module performs signal filtering and overvoltage protection to ensure stable data collection under harsh industrial conditions.

Eaton 8650C74 provides stable Drive for workshop field multi-sensor acquisition control. Drive supports continuous long-time operation and built-in signal surge protection circuit. Drive features high common-mode interference suppression to adapt high vibration and electromagnetic interference environment. Drive adopts hot swap compatible design for convenient on-site replacement without full system shutdown.

Eaton 8650C74 features reliable Transmission for field sensors and upper main control unit devices. Transmission communicates via sensor wiring and rack backplane bus. Transmission is fully compatible with Eaton integrated machinery control systems. Transmission delivers filtered real-time sensor data for equipment condition monitoring, alarm and interlock protection.

Eaton 8650C74 is widely used in marine propulsion control, power generation units, heavy machinery monitoring and legacy industrial control system renovation. With mature Eaton industrial signal acquisition technology, this sensor input module works within temperature range 0~60℃ and has strong anti-vibration and EMC anti-interference performance. It provides full lifecycle technical support including rack installation, wiring configuration, commissioning and after-sales maintenance, serving global users as a trusted Eaton sensor input circuit board solution.
