1、 Product Overview

GE IS220PDIOH1A is a parallel distributed discrete input/output (PDIO) module under the General Electric (GE) Mark VIe Speedtronic turbine control system. It is a core I/O component of the system, used to implement signal interfaces between controllers and on-site switch devices. It integrates an acquisition board and a shared processor board, and can simultaneously process input and output signals.

Manufacturer: General Electric (GE)

Product Series: Mark VIe Speedtronic

Model: IS220PDIOH1A

Function type: Discrete Input/Output Module (PDIO)

Applicable systems: gas turbines, steam turbines, power plants, and industrial process control

2、 Main functions

24 channel discrete input (DI): collects dry contact/voltage signals such as on-site switches, limits, alarms, contacts, etc.

12 way relay output (DO): controls actuators such as solenoid valves, motors, relays, valves, etc., with C-type mechanical relay contacts.

Optoelectronic isolation: 1500V optoelectronic isolation on the input side, mutual isolation between channels, and suppression of common mode interference.

Hardware filtering: 4ms input filtering, response time<5ms, configurable high and low level logic.

Dual network redundant communication: Dual RJ45 10/100Mbps Ethernet, supporting EtherNet/IP and Modbus RTU, ensuring reliable data links.

Self diagnosis and status indication: 4-channel LED status lights, supporting channel fault, communication abnormality, and power status diagnosis; Output read back confirmation.

Redundant configuration support: compatible with Simplex and TMR systems, paired with terminal boards IS200TDBSH2A/IS200TDBTH2A.

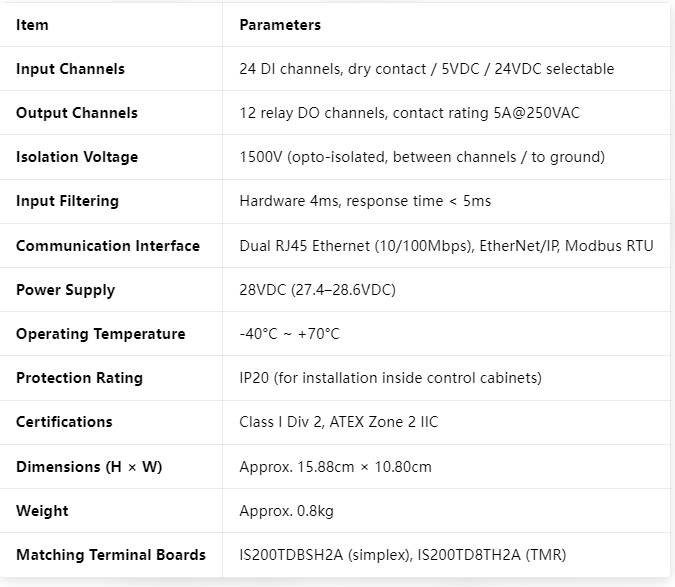

3、 Technical specifications (parameter table)

4、 Structure and Design Features

Integrated package module design: integrates local processor, data acquisition board, dual network ports, without the need for additional I/O cards, simplifying system architecture.

High reliability industrial grade design:

Channel independent isolation, single channel faults do not spread.

Dual power input and reverse polarity protection.

Relay output with surge suppression and read back detection.

Modular hot swappable (controlled environment): supports online replacement, reducing downtime for maintenance.

Plug and play: Mark VIe system automatic recognition module simplifies configuration and debugging.

5、 Typical application scenarios

Gas turbine/steam turbine control: collecting speed probes, flame detectors, valve position switches; Control the fuel valve, starter motor, lubricating oil pump, and emergency stop circuit.

Power station (combined cycle/single cycle): boiler, steam turbine, auxiliary system switch monitoring and interlocking protection.

Oil and gas: pressure/flow switch monitoring for compressor stations, pump stations, and long-distance pipelines, ESD emergency shutdown system.

Industrial processes (chemical/metallurgical): remote I/O station, large-scale switch quantity acquisition and equipment control, compatible with DCS integration.

6、 Advantages and Value

High stability: Turbine level control reliability, redundant network and power supply design, to meet uninterrupted operation in critical control scenarios.

Strong anti-interference: 1500V isolation, 60Vrms AC suppression, suitable for industrial sites with high temperature, high humidity, and strong electromagnetic interference.

Easy integration and maintenance: Integrated design, LED diagnosis, hot plugging, reducing project implementation and operation costs.

Full system compatibility: seamlessly integrated with Mark VIe, supports Simplex/TMR, and adapts to different security level requirements.
