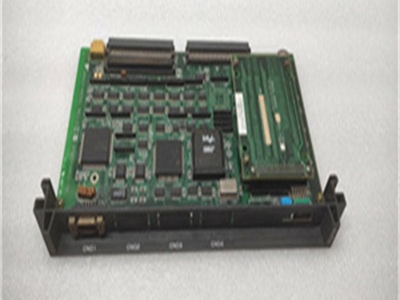

Model Definition

• DF92006500: Yaskawa standard part number for motion control board

• C0: Hardware revision (Rev C0) with optimized logic circuits and enhanced anti-interference

• JANCD-MCP01: Official board model number (Motion Control Processor)

Technical Specifications

Electrical Parameters

• Input voltage: 5 V DC ±5% from system backplane

• Core processor: 32-bit high-speed motion CPU

• Onboard memory: 4 MB flash, 1 MB RAM

• Power consumption: Approximately 90 W

• Signal processing: Multi-axis interpolation, logic control, motion planning

Mechanical & Environmental Parameters

• Dimensions (W×H×D): 220 mm × 150 mm × 30 mm

• Weight: Approximately 1.3 kg

• Operating temperature: 0 °C to +55 °C

• Storage temperature: -20 °C to +70 °C

• Protection class: IP20 (for industrial control cabinet use)

• Cooling method: Natural convection

Interface Configuration

• System bus: XRC/J300 backplane bus interface

• Motion I/O: 16-channel high-speed differential signal interface

• Communication: RS-232, RS-485 for debugging and data transmission

• Expansion slots: U1–U3 for additional motion modules

Core Functions

• Controls up to 21 axes of synchronous motion, supporting complex multi-axis linkage。

• Executes high-precision linear/circular interpolation and motion trajectory planning.

• Processes real-time logic control, interlock signals and system safety monitoring.

• Communicates with servo drives to implement closed-loop motion control.

• Optimized C0 revision improves stability in high-noise industrial environments.

Compatibility

• Compatible controllers: Motoman XRC robot controller, Yasnac J300/J500 CNC system。

• Matching components:

  • Backplane: DF8203498-B0

  • Power board: DF9200471-D1 / E0

  • Servo board: DF9200414-A0

Common Faults & Maintenance

Common Faults

• Motion error: Caused by signal interference or parameter mismatch

• System halt: Resulting from CPU overheating or power anomaly

• Communication failure: Triggered by bus connection looseness

Maintenance Guidelines

• Use ESD protection during handling to avoid static damage

• Regularly clean the board surface and heat dissipation area

• Check bus connectors for looseness or oxidation periodically

• Replace with exact part DF92006500-C0 (Rev C0)

• Power off the system before removal and installation

Application Scenarios

• Motoman XRC robot multi-axis motion control

• Yasnac J300/J500 CNC system interpolation control

• High-precision multi-axis automation equipment

•
