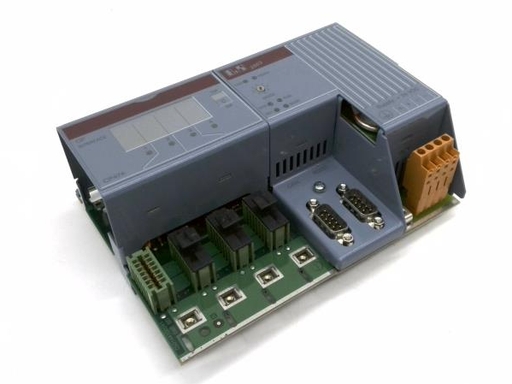

B&R 7CP474.60-1

Detailed Product Description

1. Product Overview

The 7CP474.60-1 is a compact and high-performance CPU module belonging to B&R's 2003 series modular PLC control system. Designed as the central control unit for small to medium-sized industrial automation applications, it delivers reliable logic execution, precise process control, and efficient data handling. This module integrates a powerful processor, dedicated memory, built-in communication ports, and expansion slots, offering exceptional flexibility and performance for machine control and distributed I/O systems.

2. Key Features & Benefits

• Powerful Processing Performance: High-speed industrial processor for fast program execution and short cycle times, ideal for complex control algorithms.

• Optimized Memory Configuration:

  • SRAM (Data Memory): 100 KB for dynamic data and process variables.

  • FlashPROM (Program Memory): 512 KB for storing user application programs, ensuring non-volatile, battery-free retentionB& R Industrial Automation.

• Superior I/O Expansion Capacity:

  • Supports a maximum of 208 digital I/O points and 80 analog I/O pointsB& R Industrial Automation.

  • Features 4 slots for screw-in expansion modules, allowing easy customization with specialized function modules (e.g., communication, temperature measurement)B& R Industrial Automation.

• Integrated Communication Interfaces:

  • 1x RS232 Interface: For direct programming, HMI connection, and point-to-point serial communicationB& R Industrial Automation.

  • 1x Isolated CAN Interface: Fully electrically isolated for robust industrial networking (e.g., CANopen), supporting multi-device connectivity and high immunity to electrical noiseB& R Industrial Automation.

• Industrial-Grade Robustness:

  • Full galvanic isolation between the system bus and communication interfacesB& R Industrial Automation.

  • Excellent EMC performance, ensuring stable operation in environments with high electromagnetic interference.

  • Fanless, maintenance-free design with a wide operating temperature range.

• Seamless Software Integration: Fully compatible with B&R Automation Studio software, supporting all standard IEC 61131-3 programming languages (LD, ST, FBD, etc.) for intuitive programming, diagnostics, and online monitoringB& R Industrial Automation.

• Plug-and-Play Compatibility: Works seamlessly with all B&R 2003 series backplanes, power supplies, and I/O modules, enabling rapid system configuration and deploymentB& R Industrial Automation.

3. Technical Specifications

4. Typical Applications

• Packaging, Printing, and Textile Machinery

• Material Handling Systems (Conveyors, Sorting)

• Special-purpose Machine Tools

• Building Automation (HVAC, Pump Control)

• Food & Beverage Processing Equipment

• Water Treatment and Small-scale Process Control

• Remote Distributed I/O Control Systems

5. Installation & Operation

1. Mounting: Securely install on a standard DIN rail within a control cabinet.

2. Wiring: Connect a regulated 24 V DC industrial power supply. Ensure proper grounding for optimal EMC performance.

3. System Setup: Install on a 2003 series backplane alongside a compatible power supply module. The system automatically recognizes connected I/O modulesB& R Industrial Automation.

4. Programming: Connect a PC via the RS232 port using Automation Studio for program download, online debugging, and parameter settingB& R Industrial Automation.

5. Networking: For CAN bus communication, use shielded cables, properly terminate the bus with a resistor, and ensure a clean ground connectionB& R Industrial Automation.

6. Environment: Install away from high-power interference sources (e.g., inverters). Separate power and signal cables.

6. Reliability & Warranty

• Designed for 24/7 continuous industrial operation with a high MTBF (Mean Time Between Failures).

• Comprehensive built-in self-diagnostic functions and LED status indicators for quick troubleshootingB& R Industrial Automation.

• Complies with international industrial standards for vibration, shock, and thermal stress.

• Note: This product is discontinued by the manufacturer. Standard warranty terms apply to new/remaining stock.

7. Compatible Accessories

• 2003 Series Backplanes & Power Supply Modules

• 0AC201.91: 3V Lithium Battery (for optional SRAM backup)B& R Industrial Automation

• 7AC911.9: CAN Bus ConnectorB& R Industrial Automation

• RS232 Programming Cable

• Screw Terminal Blocks & Shielded Communication Cables
