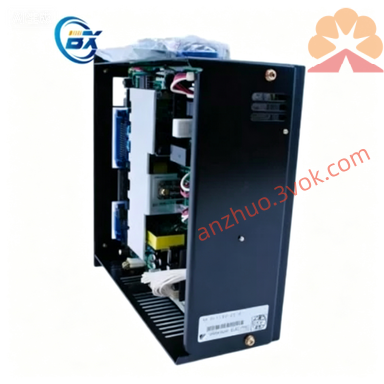

CACR-SR15BZ1SM (Yaskawa VS-800, 1.5kW, BZ housing, 1SM firmware) 1. Model Description CACR-SR : VS-800 series SERVOPACK (discontinued, speed/torque control)15 : 1.5kW (1500W) rated powerBZ : BZ housing (250 × 180 × 120 mm, dedicated BZ form factor)1SM : Control firmware1 : Standard versionS : Speed control (±10V analog)M : Torque control (±10V analog)

2. Electrical Ratings & Specifications Item Specification  Input Power Three-phase AC200～230V, 50/60Hz, +10%/-15%Control Power Single-phase AC200～230V (internal supply)Rated Output Power 1.5kWRated Output Current 18A (rms)Peak Output Current 54A (max 3s)Control Modes Speed (±10V) / Torque (±10V) dual-modeEncoder Type Incremental, 2500p/rev, 5V line-driverCooling Method Forced air cooling (fan required)Ambient Temp 0～40°C (operating), -20～+50°C (storage)Humidity ≤80% RH (no condensation)Altitude ≤1000m above sea levelWeight
