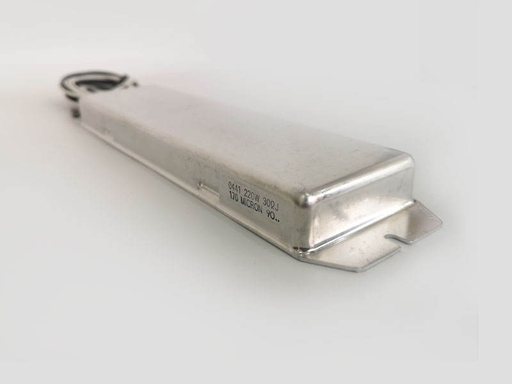

Model Identification

• Part Number：A06B-6130-H402

• Type：SEP. REGENERATIVE RESISTOR / Braking Resistor

• Compatible Amplifiers：βiSV‑4A / βiSV‑20A (200V class)

• Manufacturer：FANUC

Electrical Specifications

• Resistance：30 Ω (Ohm)

• Rated Power：100W (continuous) / 220W (peak)

• Voltage Class：200–240V AC (3‑phase)

• Connection：4‑wire (direct to CX23 on βiSV)

• Duty：Intermittent (absorbs regenerative energy during deceleration)

Mechanical & Environmental

• Construction：Aluminum housed, finned for heat dissipation

• Dimensions (W×H×D)：≈ 45mm × 150mm × 25mm

• Weight：≈ 0.48–1.0 kg

• Operating Temp：0°C～+55°C (no condensation)

• Storage Temp：‑20°C～+60°C

• Humidity：5%–95%RH (non‑condensing)

• Protection：IP20 (cabinet mount only)

Compatibility

• Servo Amplifiers：βiSV‑4A, βiSV‑20A (200V)

• CNC Systems：FANUC 0i‑MD/TD, 30i/31i/32i‑B (200V config)

• Applications：CNC lathes, machining centers, automation with frequent stops

Key Features

• High power dissipation：100W continuous, handles heavy regenerative loads

• Robust aluminum case：improved cooling, vibration resistance

• Direct plug‑and‑play：matches βiSV CX23 connector

• Prevents DC bus overvoltage：protects amplifier during fast deceleration

Installation & Safety

• Mount vertically; allow ≥50mm clearance all around for airflow

• Connect only to CX23 (RC/RE) on βiSV amplifier

• Hazardous surface temperature during/after operation—do not touch

• Disconnect all AC power before wiring

• Use only original FANUC A06B‑6130‑H402 for safety and compatibility

Manual Reference

• Related Manual：B‑65322 (βi Servo Amplifier Manual)
