Electrical & Mechanical

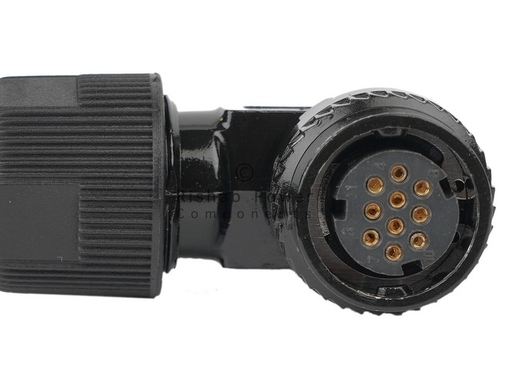

• Pin count: 10 pins (female, socket)

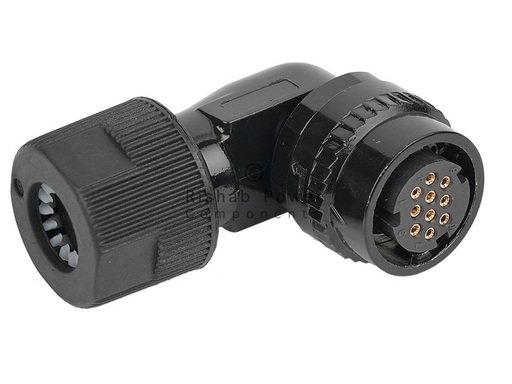

• Orientation: 90° elbow (cable exit perpendicular to motor)

• Construction: Metal shell, plastic insulator, threaded coupling nut

• Contact rating: 24 VDC, low‑level signal (encoder power/data)

• Cable entry: Φ8–Φ10 mm encoder cable

• Sealing: #E = enhanced environmental sealing (dust/moisture resistance)

• Locking: Twist‑lock coupling for vibration‑proof connection

Compatibility

• Servo motors: FANUC αiS/αiM, βiM series (serial encoder)

• Amplifiers: A06B-6114‑Hxxx (αi SVM1/SVM2)

• Encoder cables: 10‑core shielded encoder cable (FANUC standard)

Features

• Compact 90° design for tight mounting spaces

• Robust metal housing for industrial CNC environments

• Enhanced sealing (#E) for improved reliability in humid/dusty conditions

• Complete assembly kit (housing, pins, crimp contacts, hardware)

• RoHS, CE compliant
