1. General Information

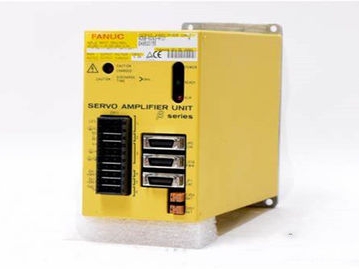

• Part Number: A06B-6093-H101

• Brand: FANUC

• Type: βi Series Single‑axis Servo Amplifier (SVU‑12, Type B PWM Interface)

• Application: Small‑power βiS servo motors (0.5–1 kW), CNC machines, automation lines

• Weight: Approx. 2.0 kg

• Dimensions (W×H×D): 170 × 100 × 60 mm

• Origin: Japan (OEM)

• Status: Discontinued (replacement available)

2. Electrical Ratings

Input (AC)

• Voltage: 200–230 VAC (±10%), 1‑phase / 3‑phase

• Frequency: 50 / 60 Hz

• Input Current: 5.1 A (1‑phase), 3.2 A (3‑phase)

Output

• Max Output Voltage: 240 VAC

• Rated Output Current: 3.2 A (continuous)

• Control Mode: Position / speed / torque

3. Interface & Feedback

• Command Interface: Type B (PWM standard), pulse/direction, ±10 V analog

• Feedback: Incremental encoder (2500 PPR)

• Communication: Compatible with FANUC 0i‑D / 0i‑MF/TF, 30i‑B series

4. Protection & Environment

• Protection: Overcurrent, overvoltage, undervoltage, overtemperature, short‑circuit, overload

• Cooling: Natural cooling (or forced air for heavy load)

• Operating Temp: 0 °C to +55 °C

• Storage Temp: −25 °C to +55 °C

• IP Rating: IP20 (for control cabinet)

5. Compatibility

• Servo Motors: βiS series (0.5–1 kW)

• CNC Systems: 0i‑D, 0i‑MF/TF, 30i/31i/32i‑B
