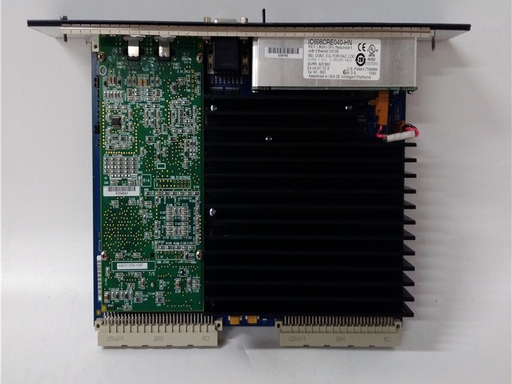

IC698CRE040
Description
1. Product Overview
Key Features
High-Speed Processing: 1.8 GHz Pentium-M microprocessor, supports floating-point operations.
Large Memory: 64 MB battery-backed user memory + 64 MB non-volatile flash memory.
Multi-Communication Ports: 3 serial ports (RS-232/RS-485) + dual 10/100 Mbps Ethernet ports.
Hot-Standby Redundancy: Supports bumpless transfer with redundant CPU and IC698RMX016 memory exchange module.
Industrial Protocol Support: Modbus RTU/TCP, SNP, EGD, SRTP, etc..
Web & FTP Server: Up to 16 combined web/FTP connections for remote monitoring.
VME64 Backplane: High-speed I/O and module communication via VME64 standard.
2. Technical Specifications
2.1 Processor & Memory
| Parameter | Specification |
|---|---|
| CPU Core | 1.8 GHz Pentium-M |
| User Memory | 64 MB (battery-backed) |
| Non-Volatile Flash | 64 MB (user program/data storage) |
| Floating-Point Support | Yes |
| ECC Memory | Enabled (for redundant configurations) |
2.2 Communication Interfaces
| Interface | Quantity & Details |
|---|---|
| Ethernet Ports | 2 × 10/100 Mbps (full-duplex, auto-negotiation) |
| Serial Ports | 3 × (RS-232/RS-485 configurable) |
| Supported Protocols | Modbus RTU (Slave), Modbus/TCP (Server/Client), SNP, Serial I/O, EGD, SRTP |
| Synchronization | Fiber-optic (IC698ACC320) or Ethernet (for redundancy) |
2.3 Power Requirements
| Voltage | Current (Nominal) |
|---|---|
| +5 VDC | 6.8 A |
| +12 VDC | 0.003 A |
| -12 VDC | 0.003 A |
2.4 Physical & Environmental
| Parameter | Specification |
|---|---|
| Form Factor | VME64 standard (6U rack-mount) |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Shock/Vibration | Industrial grade (per IEC 61131-2) |
3. Functional Description
3.1 Real-Time Control
3.2 Redundancy Operation
Hot-Standby (HSB): Primary and backup CPUs run in parallel, mirroring program state and I/O data.
Bumpless Transfer: Automatic switch to backup CPU within milliseconds upon primary failure (hardware/software).
Redundancy Link: Requires IC698RMX016 module for high-speed data synchronization between redundant racks.
3.3 Communication Functions
Ethernet: Supports Modbus/TCP, EGD (Ethernet Global Data), SRTP (Secure Real-Time Protocol), and web/FTP server.
Serial: Connects to HMIs, programmers, or third-party devices via Modbus RTU or SNP protocol.
Firmware Upgrade: Updates via RS-232/RS-485 or Ethernet ports.
4. Installation & Wiring
4.1 Rack Mounting
Insert the IC698CRE040 into a 6U VME64 rack slot (RX7i backplane).
Secure the module with front-panel screws.
Ensure proper grounding of the rack and module.
4.2 Port Connections
Ethernet: Connect CAT5e/CAT6 cable to ETH1/ETH2 ports (10/100 Mbps).
Serial: Connect RS-232/RS-485 devices to COM1/COM2/COM3 (DB9 connectors).
Redundancy: Connect fiber-optic cable (IC698ACC320) or Ethernet cable to redundant CPU.
4.3 Battery Installation
Use IC698ACC701 (smart lithium battery) for memory backup.
Install battery in the module’s battery slot; replace every 3–5 years.
5. Programming & Configuration
5.1 Software
5.2 Configuration Steps
Create a new RX7i project in Machine Edition.
Select IC698CRE040 as the CPU model.
Configure memory allocation, communication ports, and redundancy settings.
Download the program to the CPU via Ethernet or serial port.
5.3 Redundancy Configuration
Add two IC698CRE040 CPUs (primary/backup) and two IC698RMX016 modules to the project.
Configure redundancy link (fiber or Ethernet) and synchronization parameters.
Enable bumpless transfer and data mirroring in the software.
6. LED Indicators
| LED | Status | Description |
|---|---|---|
| PWR | Green (On) | Power supply normal |
| RUN | Green (Blink) | CPU running program |
| ERR | Red (On/Blink) | System error (fault detected) |
| ETH1/ETH2 | Green (Blink) | Ethernet port activity |
| RDY | Green (On) | CPU ready for operation |
7. Maintenance & Troubleshooting
7.1 Routine Maintenance
Check battery voltage annually; replace if low (LED “BATT” indicator).
Inspect port connections for damage or loose cables.
Update firmware to the latest version (via Machine Edition).
7.2 Common Issues
| Symptom | Possible Cause | Solution |
|---|---|---|
| ERR LED On | Program error or hardware fault | Check program logic; reset CPU |
| No Ethernet Communication | Cable fault or IP mismatch | Verify cable; check IP configuration |
| Redundancy Transfer Failure | Synchronization link error | Check fiber/Ethernet cable; verify RMX module |
| Memory Loss | Dead backup battery | Replace battery; reload program |
8. Ordering Information
Model: IC698CRE040
SKU: 2171134
UPC: 0815715263196
Accessories:
IC698ACC701: Smart lithium battery
IC698RMX016: Redundancy memory exchange module
IC698ACC320: Fiber-optic sync link module
9. Compliance & Certifications
CE: Compliant with EU EMC and LVD directives
UL: Listed for industrial control equipment (UL 508)
RoHS: Compliant with Restriction of Hazardous Substances
IEC: Compliant with IEC 61131-2 (programmable controllers)
