1. General Information

• Manufacturer: Reliance Electric (Rockwell Automation / Baldor‑Reliance)

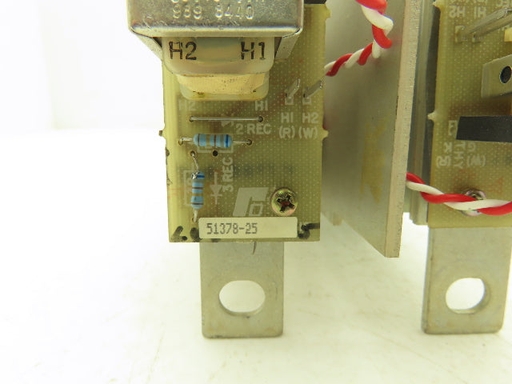

• Part Number: 0-51378-25 (also 05137825)

• Description: Gate Coupling Board, High‑Current / Heavy‑Duty Version

• Application: MaxPak Plus, MinPak Plus, RPM III, DCV series rectifier stacks (heavy‑duty)

• Function: Provides isolated, high‑energy gate drive pulses for large SCR power modules

• Condition: New / Used / Remanufactured

• Warranty: 12 months

2. Electrical Specifications

• Control Supply: +5 VDC / ±12 VDC (from drive control power supply)

• Gate Drive Output: High‑current isolated pulses (higher energy than standard -1 / -2 boards)

• Gate Transformers: 2 (large, high‑energy design)

• SCR Compatibility: High‑power SCR modules (e.g., 86466-58R)

• Isolation: Enhanced high‑voltage isolation between logic and power sections

3. Physical & Mechanical

• Dimensions (W×H×D): ~150 × 100 × 25 mm (5.9" × 3.9" × 1.0")

• Weight:

  • Board only: ~0.045 kg (0.10 lbs)

  • Assembly: ~3.2 kg (7.0 lbs)

• Construction: Conformal‑coated PCB, industrial components, large gate transformer

• Mounting: Two‑hole direct mount to top of Reliance rectifier stacks



4. Environmental

• Operating Temperature: 0°C to +50°C (32°F to 122°F)

• Storage Temperature: -20°C to +70°C (-4°F to 158°F)

• Humidity: 5%–95% RH (non‑condensing)

5. Key Features (vs. standard 0-51378‑xx)

• High‑Current Firing: Delivers higher gate pulse energy for reliable triggering of large SCRs

• Heavy‑Duty Rating: Designed for MaxPak Plus and high‑horsepower DC drives

• Robust Transformer: Larger, more rugged gate transformers than -1 / -2 versions

• Drop‑In Replacement: Pin‑to‑pin compatible with other 0-51378 series boards (upgrades standard to high‑current)

6. Compatibility

• DC Drives: MaxPak Plus, MinPak Plus, RPM III, DCV (heavy‑duty models)

• Rectifier Stacks: 86466-58R, 800082-1R, 608881‑31A

• Replaceable With: 0-51378-1, -2, -19, -31, -33 (high‑current upgrade)
