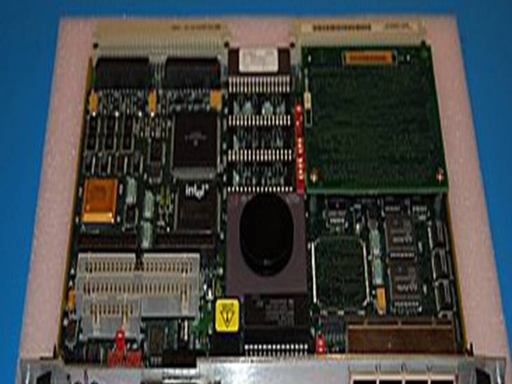

General Information

• Part Number: 0-48647-00AQR

• Manufacturer: Reliance Electric (Rockwell Automation)

• Product Type: Industrial Control Board / PLC Module

• Application: For industrial automation, motion control, and drive systems

• Condition: New / Remanufactured, original OEM part



Electrical Specifications

• Input Voltage: 24 VDC ±10%

• Power Consumption: ≤ 15 W

• Logic Type: Digital + analog mixed circuit

• Communication Ports: Ethernet, RS‑232/485, fiber optic (optional)

• I/O Channels: Configurable digital inputs/outputs, analog inputs

• Processor: High‑speed industrial CPU

• Memory: Onboard Flash + RAM for program/data storage

Mechanical Specifications

• Form Factor: Standard 19” rack‑mount PCB assembly

• Dimensions (W×H×D): 220 mm × 120 mm × 30 mm

• Weight: ≈ 0.8 kg

• Mounting: Screw‑fixed, hot‑swap compatible

• Enclosure: Industrial‑grade anti‑static coating, corrosion‑resistant

Environmental Ratings

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: −40 °C to +70 °C

• Humidity: 5%–95% RH, non‑condensing

• Vibration: 1.0 g, 10–100 Hz (operating)

• Shock: 15 g peak (11 ms duration)

• Protection Class: IP20 (front panel)

• Compliance: CE, UL, RoHS

Performance & Features

• Control Function: High‑precision motion control, sequence control

• Real‑time Processing: Fast response for industrial process control

• Diagnostics: Built‑in self‑test, fault code logging, LED status indicators

• Redundancy: Supports redundant system configuration

• Software: Compatible with Reliance / Rockwell programming software

• Reliability: MTBF > 50,000 hours (24/7 operation)

• Maintenance: Hot‑swappable, easy on‑site replacement

Compatibility

• Matching Systems: Reliance drive systems, Rockwell Automation control platforms

• Interchangeability: Direct replacement for 0-48647 series standard models
