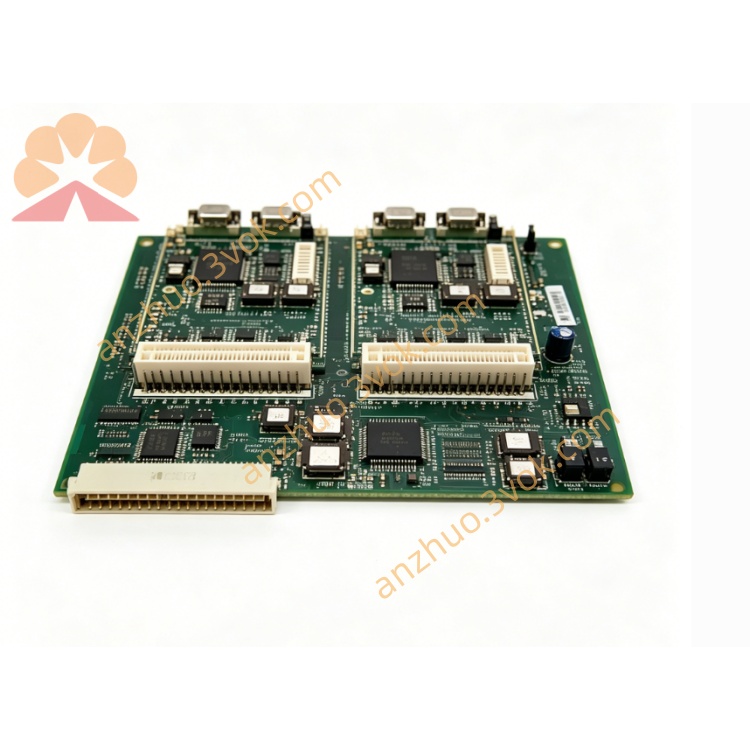

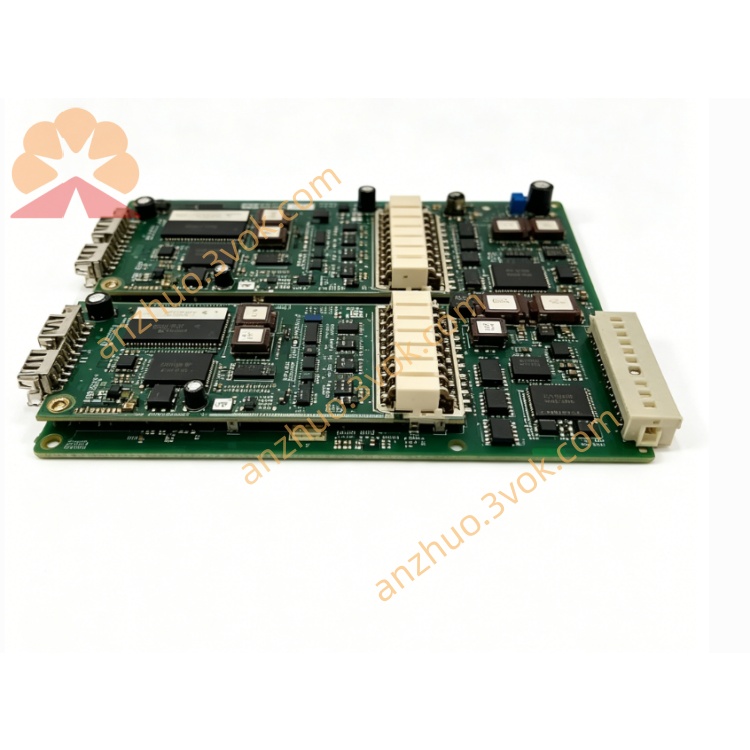

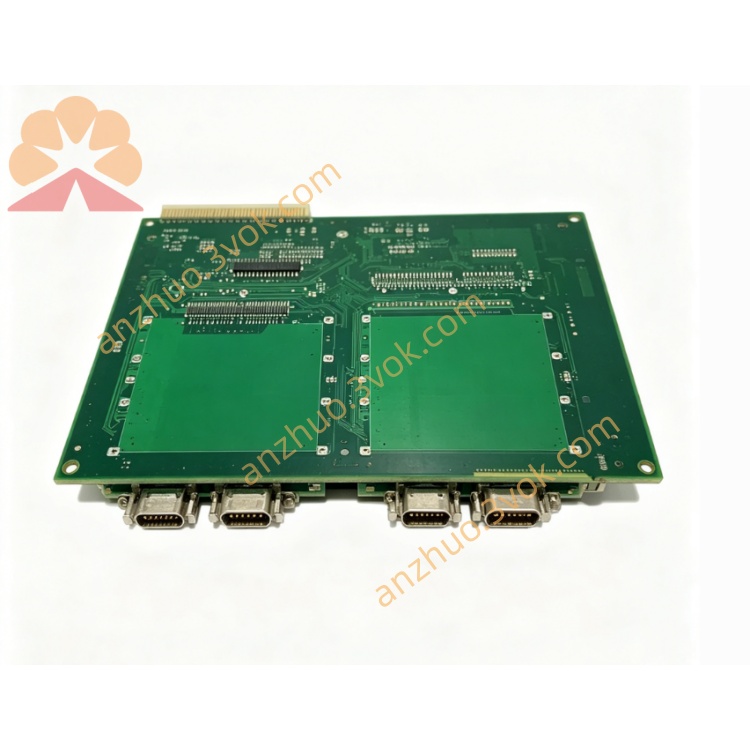

1. General Information

• Model: SC610

• Part Number: 3BSE001552R1

• Type: Submodule Carrier (Backplane for Communication Modules)

• Manufacturer: ABB

• Origin: Switzerland / Sweden

• Application: Advant Controller 100 series, process automation, DCS systems

• Key Function: Physical and electrical carrier for 2 × CI532 communication modules

2. Mechanical Specifications

• Dimensions (W × H × D): 40 × 273 × 252 mm

• Weight: 1.44 kg

• Mounting: Standard ABB rack / cabinet mounting

• Material: Industrial-grade metal casing

• Protection Class: IP20 (front)

3. Electrical & Environmental

• Power Distribution: Provides power and signal routing to CI532 modules

• Operating Temperature: −25°C to +70°C

• Storage Temperature: −40°C to +85°C

• Relative Humidity: 5%–95% RH, non‑condensing

• Certifications: CE, RoHS compliant

4. Compatibility & Features

• Compatible Modules: CI532 (two per carrier)

• System Compatibility: Advant Controller 100 series, AC 800M

• Design: Modular, hot‑swap capable (with system support)

• Reliability: Reinforced PCB, surge protection, stable data transmission

• WEEE Category: 4 (Large Equipment)

5. Applications

• Process control systems (pulp & paper, metals, mining, oil & gas)

• Power generation (thermal, hydro)

• Industrial automation and DCS installations

• Communication expansion for ABB Advant Controller 100
