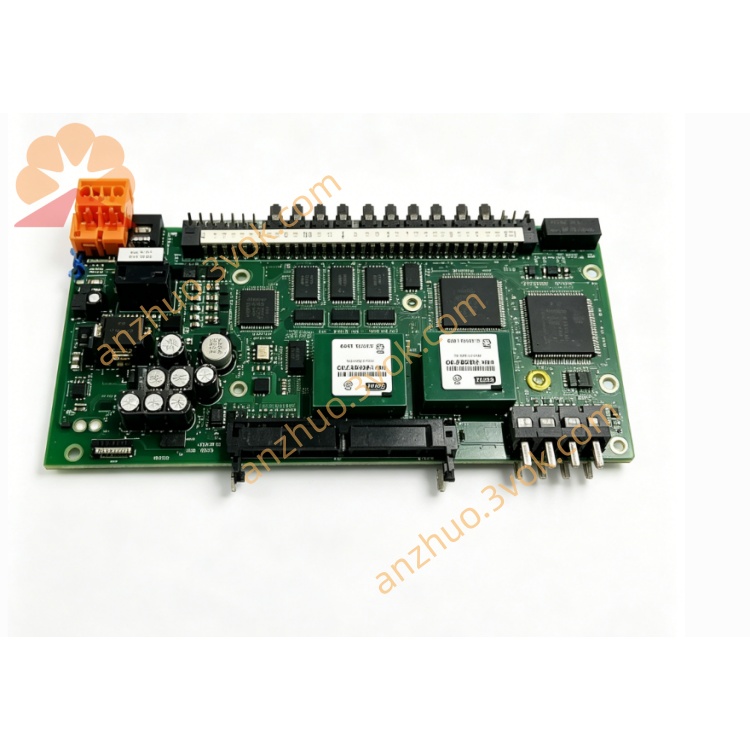

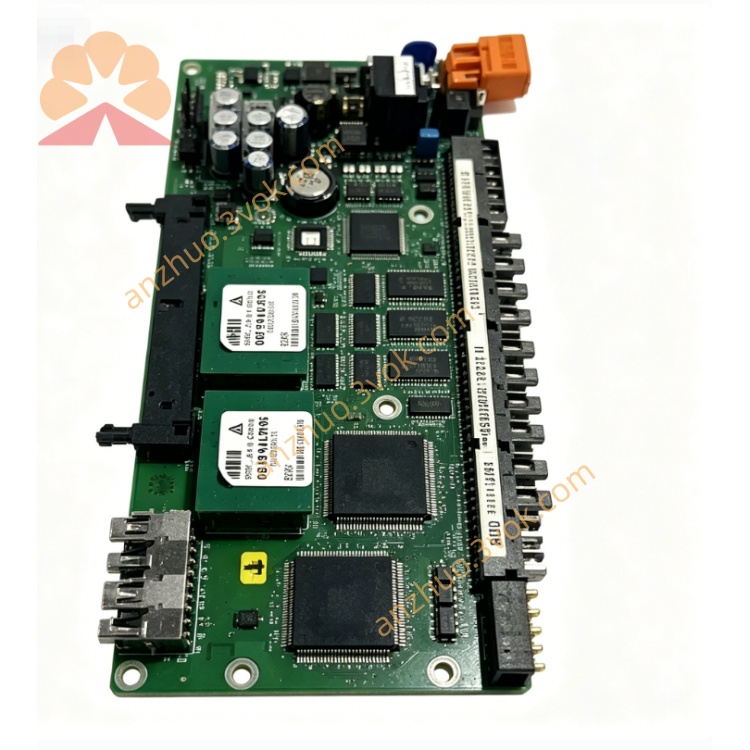

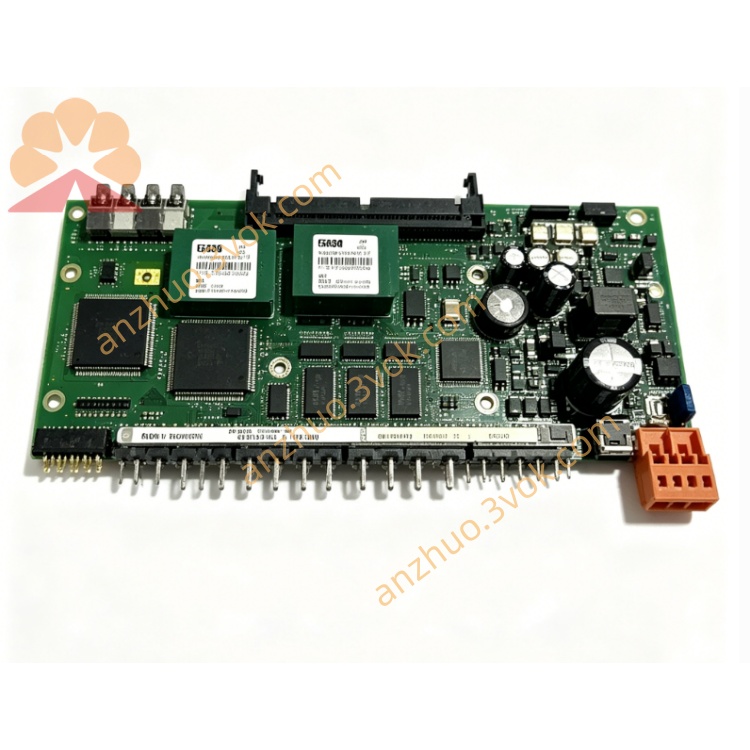

1. General Information

• Model: PPC907BE

• Part Number: 3BHE024577R0101

• Type: Advanced Processor Module, AMC 34 Control Board

• Manufacturer: ABB

• Origin: Sweden

• Application: ABB ACS2000 medium‑voltage drives, AC 800M DCS, power generation, industrial automation

2. Core Hardware

• Processor: PowerPC 604e @ 333 MHz

• Memory: 256 MB SDRAM; 512 MB Flash

• Expansion: 3 × PCI slots for I/O and communication cards

• Real-Time OS: Hard real‑time operating system, microsecond‑level task scheduling

3. Electrical Specifications

• Supply Voltage: 24 V DC (18–32 V DC range)

• Power Consumption: ≤ 4.5 W

• Protection: Over‑voltage, under‑voltage, reverse polarity protection

• Isolation: Galvanic isolation for all I/O and communication ports

4. Communication Interfaces

• Ethernet: 2 × 10/100 Mbps (TCP/IP, Modbus TCP, Ethernet/IP)

• Fieldbus: PROFIBUS DP, CANopen

• Serial: 1 × RS‑232 (debug/service)

• USB: 2 × USB 2.0 (configuration, data logging)

5. Mechanical & Environmental

• Dimensions (W × H × D): 233 × 167 × 45 mm

• Weight: 0.5–0.6 kg

• Operating Temperature: -40°C to +70°C

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5%–95% RH, non‑condensing

• Protection Class: IP20 (front panel)

• Mounting: ABB standard rack / drive frame mounting

6. Key Features

• Drive Control: Optimized for ACS2000 medium‑voltage drives (4 kV class)

• High‑Speed Loops: Fast current/voltage loop execution for motor control

• Redundancy: Dual Ethernet for redundant network operation

• Diagnostics: Onboard self‑test, fault logging, event history

• Industrial Grade: 24/7 operation, long‑lifespan components

• Certifications: CE, UL, RoHS compliant

7. Applications

• Medium‑voltage AC drives (ACS2000 series)

• Power generation (hydro, thermal)

• Oil & gas, mining, metals, pulp & paper industries

• High‑speed motion control and process automation systems
