1. General Information

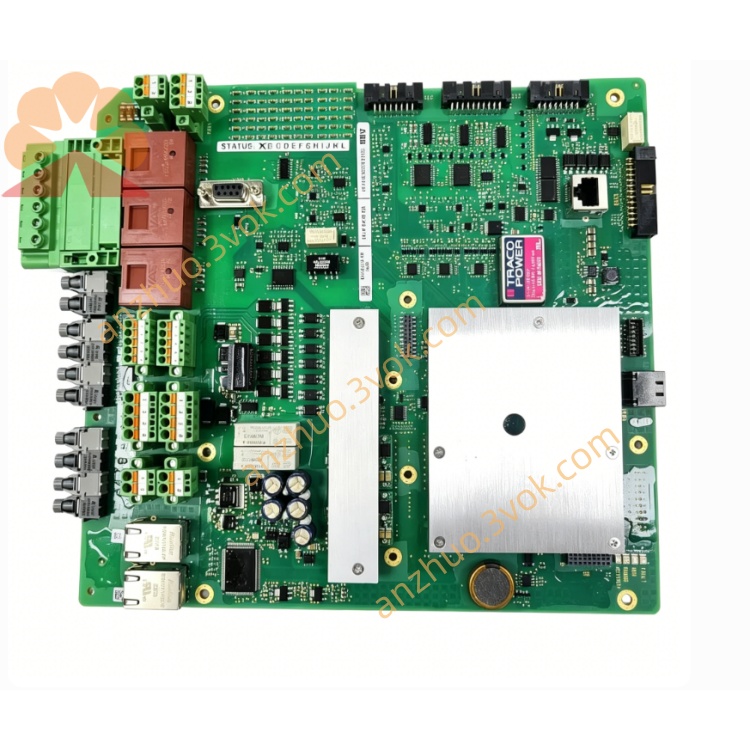

• Model: UCD240A101

• Part Number: 3BHE022287R0101

• Type: High‑performance Communication Controller (CCM 6080)

• Manufacturer: ABB

• Origin: Sweden

• Application: ABB Advant OCS / Masterpiece, excitation systems, industrial automation control racks

2. Electrical & Processing

• Power Supply: 24 V DC (system‑dependent)

• Processor: SPEED7 high‑performance CPU

• Backplane Bus: SLICE‑BUS, 48 Mbit/s

• Cycle Time: 200 µs (real‑time capable)

• Memory: Large RAM + battery‑buffered non‑volatile SRAM

3. Communication Interfaces

• Ethernet: 2 × independent Fast Ethernet (10/100 Mbps)

  • Port 1: TCP/IP (PG/OP, HMI, SCADA)

  • Port 2: Ethernet Powerlink (real‑time I/O, axis control)

• USB: 2 × USB 2.0 (for data storage, configuration)

• Serial: 1 × RS232 (diagnostics, debugging)

• Fieldbus: PROFINET controller (up to 128 devices)

4. Mechanical & Environmental

• Dimensions (W × H × D): 270 × 30 × 247 mm

• Weight: 0.92 kg

• Operating Temperature: -20°C to +60°C

• Storage Temperature: -40°C to +85°C

• Relative Humidity: 5%–95% RH, non‑condensing

• Protection Class: IP20 (front)

• Mounting: ABB standard rack / cabinet mount

5. Key Features

• Dual Fast Ethernet for standard TCP/IP and real‑time Powerlink

• High‑speed SLICE‑BUS backplane (48 Mbit/s) for fast I/O exchange

• Integrated PROFINET controller for industrial fieldbus connectivity

• Battery‑backed SRAM for data retention during power loss

• Compact, low‑profile design (30 mm height) for space‑critical installations

• Compatible with ABB excitation systems and Advant DCS platforms

6. Certifications

• CE, UL, RoHS compliant

7. Applications

• Generator excitation control systems

• Process automation (power, oil & gas, pulp & paper)

• High‑speed motion control and real‑time I/O

• ABB DCS/PLC system integration and communication hubs
