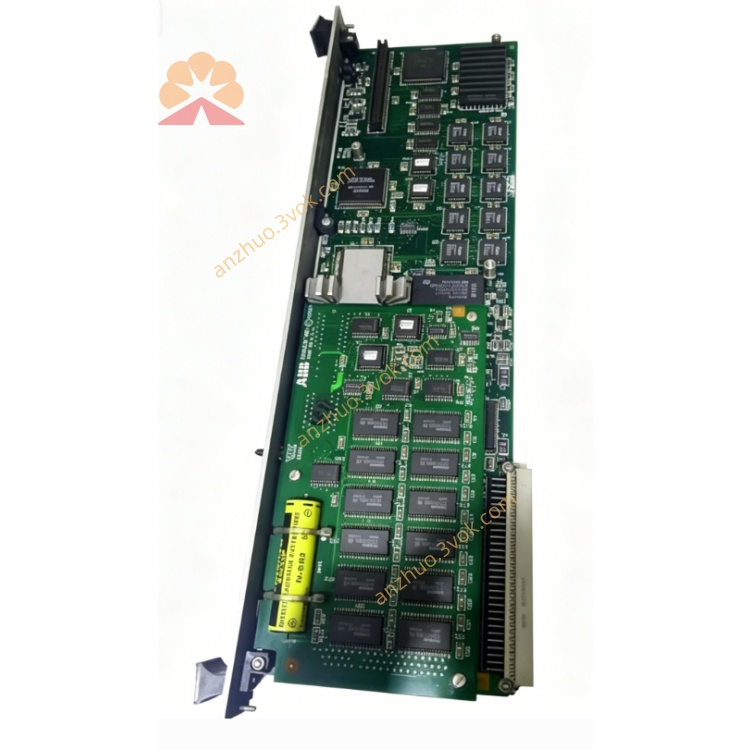

1. General Information

• Manufacturer: ABB

• Part Number: 086349-002

• Alternate P/N: 086349002

• Type: Industrial‑grade PCB / Control Module

• Application: DCS, PLC, process automation, signal processing & system control integration

• Origin: Sweden

2. Physical Specifications

• Dimensions (H × W × D): 462 × 80 × 273 mm

• Weight: Approx. 0.45 kg

• Construction: Industrial printed circuit board, ruggedized for cabinet mounting

3. Electrical & Environmental

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -40°C to +85°C

• Humidity: 5%–95% RH (non‑condensing)

• Input Voltage: 100–240 V AC/DC (wide‑range)

• Power Consumption: Approx. 12 W

• Protection: IP20 (front side)

4. Communication & I/O

• Interfaces: RS‑485, CANopen (onboard)

• Function: Signal routing, data exchange between automation components, system control integration

5. Key Features

• Rugged industrial design for harsh environments

• High‑reliability signal processing & system control integration

• Compact form factor for cabinet installation

• Wide‑range voltage input for global deployment

• Certified for industrial automation (UL, CE, RoHS compliant)

6. Typical Applications

• Process industries (power, chemical, water treatment)

• Manufacturing automation & machine control

• DCS/PLC system integration & signal conditioning
