General Information

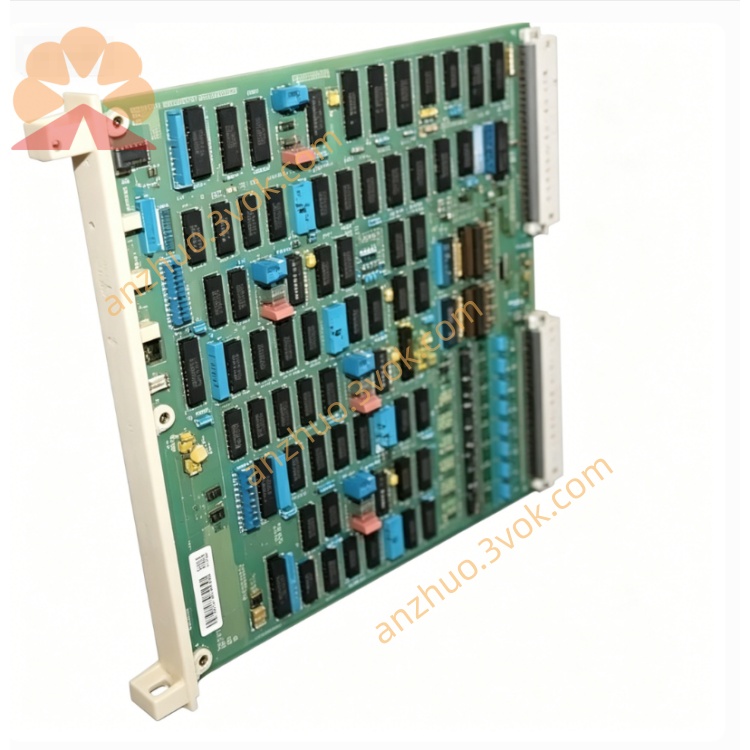

• Model: DSDP160

• Part Number: 57160001-KG

• Product Type: High Speed Pulse Counter Module

• Applicable System: ABB Advant Master Control System, S100 I/O Series

• Main Function: Pulse signal acquisition, frequency measurement, speed and position counting

Technical Specifications

• Number of Channels: 8 isolated input channels

• Max Counting Frequency: Up to 100kHz

• Input Signal Type: NPN, PNP, TTL, encoder pulse signal

• Working Mode: Up counting, down counting, quadrature counting

• Input Voltage Level: 5VDC / 24VDC

• Communication Interface: S100 internal bus

• Power Supply: 24VDC

• Working Current: Typical 160mA

Environmental Parameters

• Operating Temperature: -20℃ ~ +60℃

• Storage Temperature: -40℃ ~ +85℃

• Relative Humidity: 5%~95% RH, non-condensing

• Protection Level: IP20

• Installation: Standard ABB rack mounting

Main Features

1. Galvanic isolation design for strong anti-interference capability

2. Support various industrial pulse sensors and rotary encoders

3. High precision counting and stable long-term operation

4. Built-in fault diagnosis and signal status detection

5. Easy installation, debugging and system configuration

6. Suitable for industrial high-speed signal acquisition occasions
