1. General Information

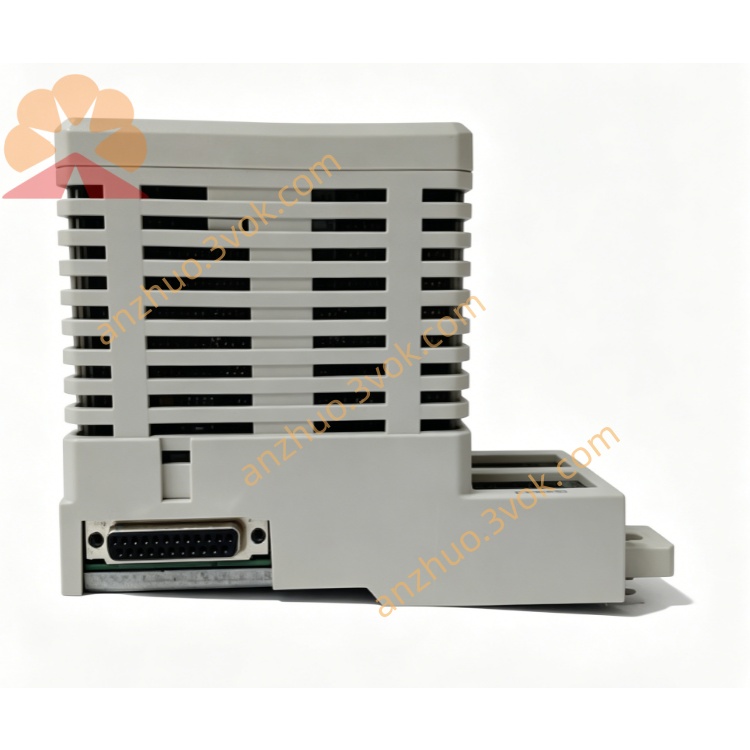

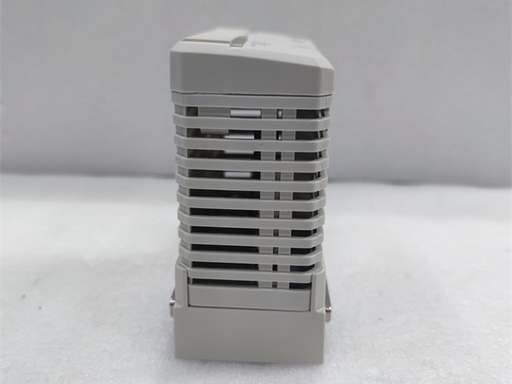

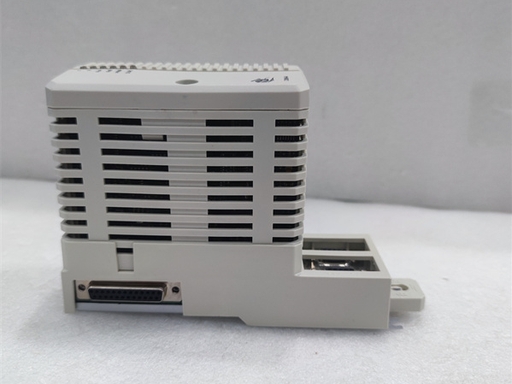

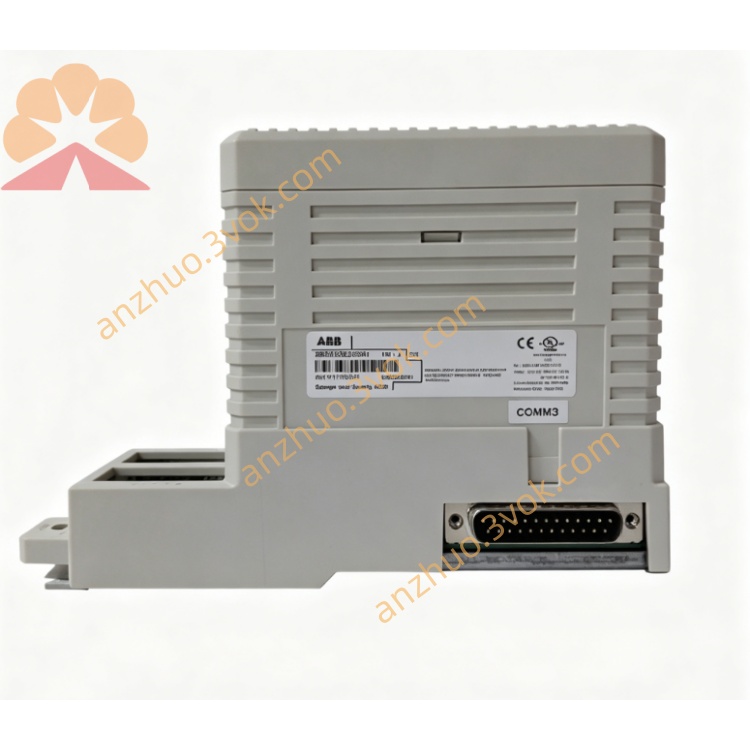

• Model: CI854AK01

• Part Number: 3BSE030220R1

• Type: PROFIBUS‑DP/V1 communication interface

• Applicable System: ABB AC 800M Controller / S800 I/O

• Baseplate: TP854 (60 mm width)ABB Group

• Weight: 0.59 kg (1.3 lb)ABB Group





2. Communication Specifications

• Protocol: PROFIBUS‑DP V0/V1/V2 (IEC 61158)

• Ports: 2 × 9‑pin Sub‑D (Port A/B), line redundancy capable

• Baud Rate: 9.6 kbps – 12 Mbps (adaptive)

• Slave Nodes: Up to 120 (depends on baud rate & configuration)

• Data Exchange: Cyclic I/O, acyclic parameterization & diagnostics; V2 supports slave‑to‑slave communication

• Isolation: Galvanic isolation between bus and controller (500 V AC test)

3. Electrical

• Supply: 24 V DC ±10% (19.2–26.4 V DC)

• Current: 190 mA typical

• Power Consumption: ~3 W

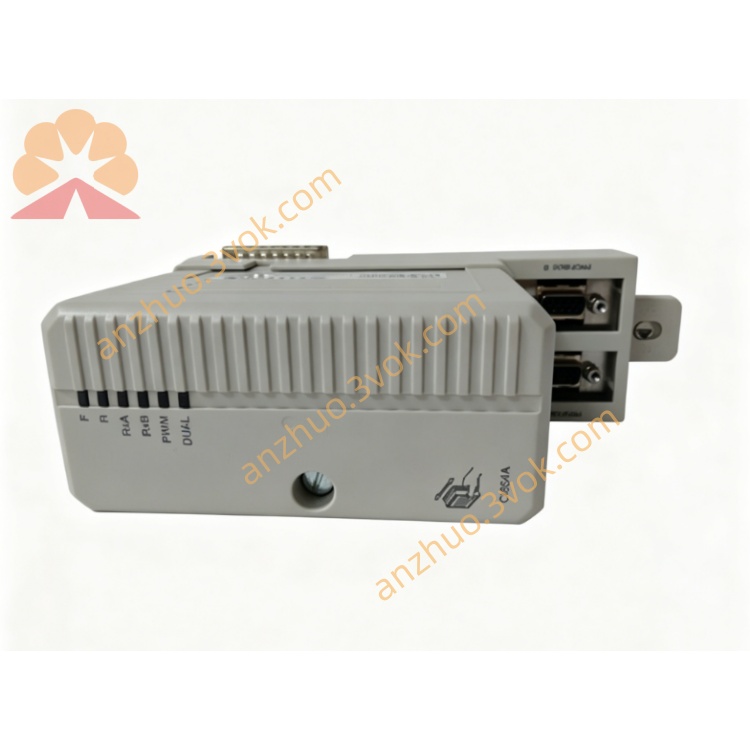

• Status LEDs: PWR, RUN, TX/RX, FAULT

4. Mechanical & Environmental

• Dimensions (W×H×D): 59 × 185 × 127.5 mm

• Operating Temp: 0 °C to +55 °C

• Storage Temp: -40 °C to +85 °C

• Humidity: 5%–95% RH, non‑condensing

• Protection: IP20 (EN 60529)

• Vibration: 10–500 Hz, ≤2 g (IEC 60068‑2‑6)

• Shock: 15 g, 11 ms half‑sine (IEC 60068‑2‑27)

• Mounting: DIN rail (horizontal/vertical), hot‑swappable

5. Key Features

• Redundancy: Line redundancy (dual ports) & master redundancy support

• High Performance: Up to 12 Mbps, deterministic real‑time communication

• Wide Compatibility: Connects to drives, remote I/O, instruments, robots

• Diagnostics: Comprehensive bus/module fault monitoring

• Certifications: CE, UL, RoHS; EMC compliant (EN 61000‑6‑2/‑6‑4)

6. Applications

• Power, petrochemical, pulp & paper, automotive, water treatment

• High‑availability DCS/PLC systems with PROFIBUS‑DP networks
