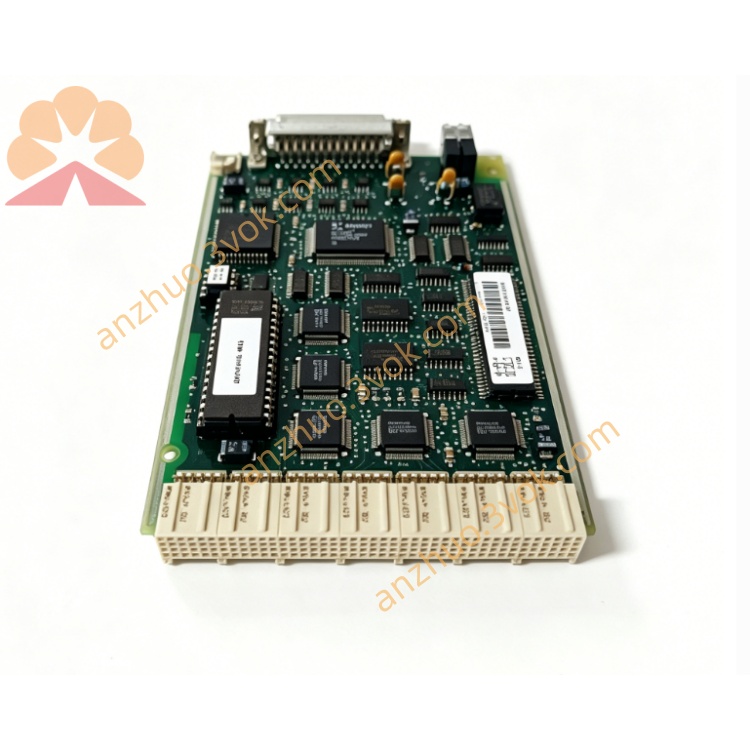

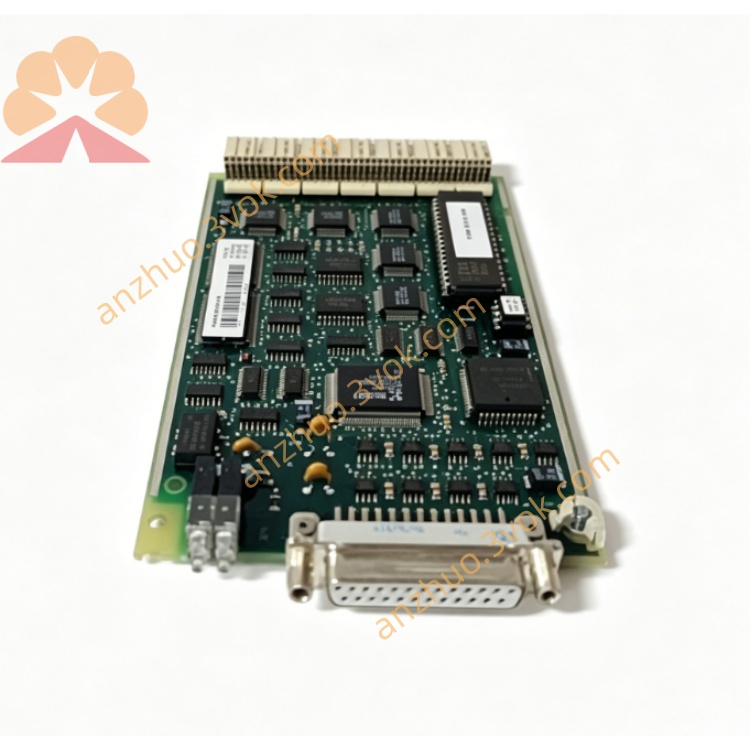

• Model: CI570

• Order Code: 3BSE001440R1

• Device Type: PROFIBUS DP Slave Interface Module

• Applicable System: ABB Advant AC400 / MasterPiece 200 Series Control System

• Function: Enable controller to act as PROFIBUS DP slave station

Communication Specifications

• Protocol: PROFIBUS-DP

• Transmission Speed: Up to 12 Mbps

• Bus Interface: Standard PROFIBUS connector

• Data Exchange: Support cyclic input/output data transmission

• Max I/O Data Size: Standard PROFIBUS DP data length

• Insulation: Galvanic isolation design

Electrical Parameters

• Operating Voltage: 24 V DC

• Power Consumption: Low power design

• Indicator LED: Power, Run, Bus Communication, Fault status

Environmental & Mechanical

• Operating Temperature: 0 °C ~ +60 °C

• Storage Temperature: -40 °C ~ +85 °C

• Relative Humidity: 5% ~ 95% RH, non-condensing

• Protection Class: IP20

• Installation: Rack mounted for ABB controller rack

Main Features

1. Work as PROFIBUS DP slave for old ABB AC400 system

2. Realize data interconnection with mainstream PROFIBUS master devices

3. Stable communication performance for industrial field control

4. Easy system configuration and bus debugging

5. Widely used in power plant, chemical, paper industry legacy DCS renovation
