1. General Information

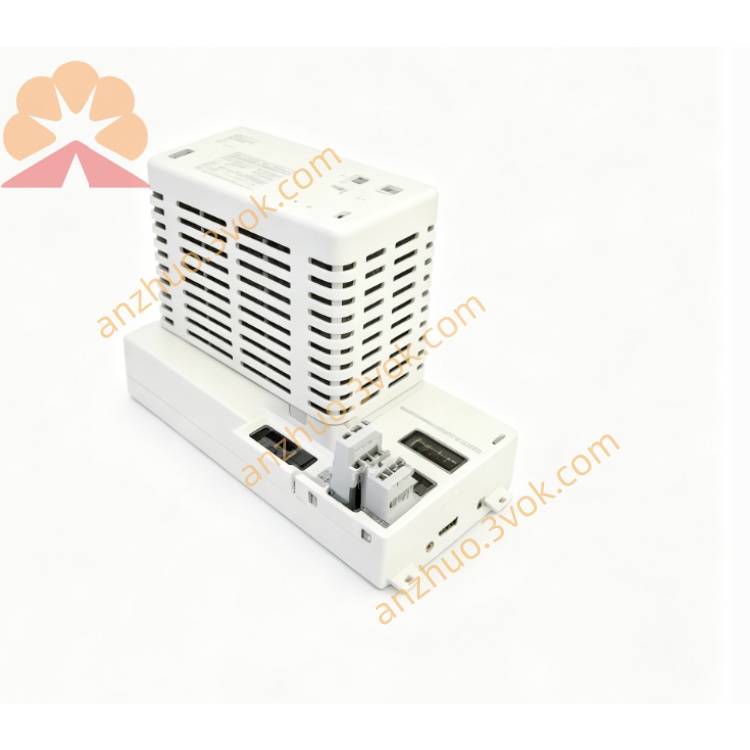

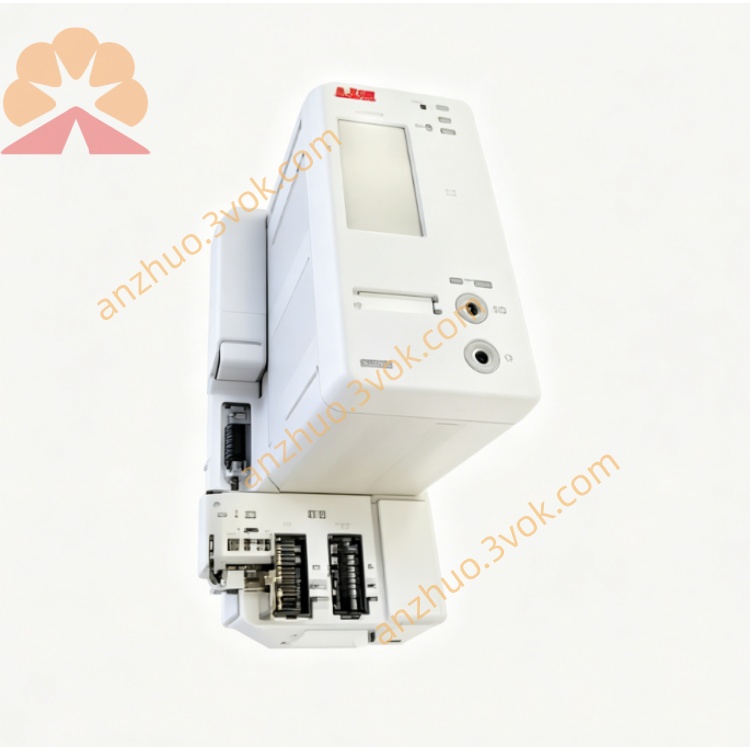

• Model: CI810V1

• Order Number: 3BSE008584R1

• Product Type: AF100 (Advant Fieldbus 100) field communication interface

• Applicable System: ABB 800xA DCS / S800 I/O system

• Manufacturer: ABB

• Country of Origin: Sweden

• Weight: Approx. 0.5 kg (1.1 lbs)

2. Communication Specifications

• Fieldbus Protocol: AF100 (Advant Fieldbus 100)

• Data Rate: 1.5 Mbps (AF100 standard)

• Interface: ModuleBus (S800 I/O)

• Redundancy: Supports redundant AF100/ModuleBus configurations

• Controller Connection: For 800xA AC 800M controllers

3. Electrical Characteristics

• Power Supply: 24 V DC (18–30 V DC)

• Power Consumption: ≤ 4 W (typical)

• Isolation: Galvanic isolation between fieldbus and controller sides

• LED Indicators: Power, Run, AF100 Activity, Fault

4. Mechanical & Environmental

• Dimensions (W×H×D): 58 × 127.5 × 126 mm (2.3 × 5.0 × 4.9 in)

• Protection Rating: IP20 (front)

• Operating Temperature: -25 °C to +70 °C (-13 °F to +158 °F)

• Storage Temperature: -40 °C to +85 °C

• Relative Humidity: 5%–95% RH (non-condensing)

• Vibration: 10–500 Hz, ≤2 g (IEC 60068-2-6)

• Shock: 15 g, 11 ms half-sine (IEC 60068-2-27)

• Mounting: DIN rail (vertical)

5. Key Features

• AF100 Master Interface: Connects 800xA controllers to AF100 remote I/O and field devices

• High-Speed Deterministic Communication: Real-time data exchange with low latency

• Redundancy Support: Enables high-availability AF100 network configurations

• Hot Swap: Replace module without system shutdown

• Diagnostics: Onboard status and fault monitoring for AF100 bus and module

• Industrial Grade: Designed for harsh environments (power, petrochemical, pulp & paper)

6. Compatibility & Certifications

• Compatible I/O: S800 I/O modules (TU810/TU811 baseplates)

• Certifications: CE, RoHS (2011/65/EU), WEEE compliant

• Marine Approvals: DNV‑GL, LR (optional)
