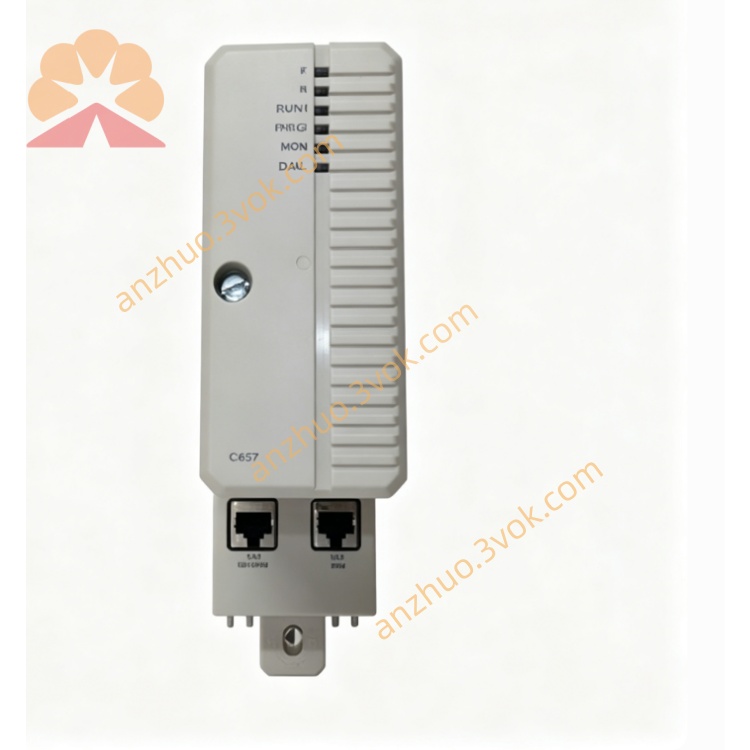

1. Electrical

• Input Voltage: 24 VDC ±10% (via CEX‑Bus)

• Current Consumption: 160 mA typical

• Power Consumption: < 5 W

• Isolation: 500 VAC (700 VDC) between field and logic

• Redundancy: Supports redundant configuration and hot‑swap

2. Communication Interfaces

• Protocol: Modbus TCP (Ethernet)

• Ethernet Ports: 1 × RJ‑45 (8‑pin female)

• Data Rate: 10/100 Mbps (auto‑negotiation)

• CEX‑Bus: Up to 12 units per bus segment

• Connector: Standard RJ‑45 (TCP/IP)

3. Environmental

• Operating Temperature: −20 °C to +55 °C

• Storage Temperature: −40 °C to +70 °C

• Humidity: 5%–95% RH, non‑condensing

• Vibration: 1 g (5–150 Hz, IEC 60068‑2‑6)

• Shock: 15 g peak (11 ms)

• Protection Class: IP20 (EN 60529 / IEC 529)

• Certifications: CE, UL, RoHS (2011/65/EU)

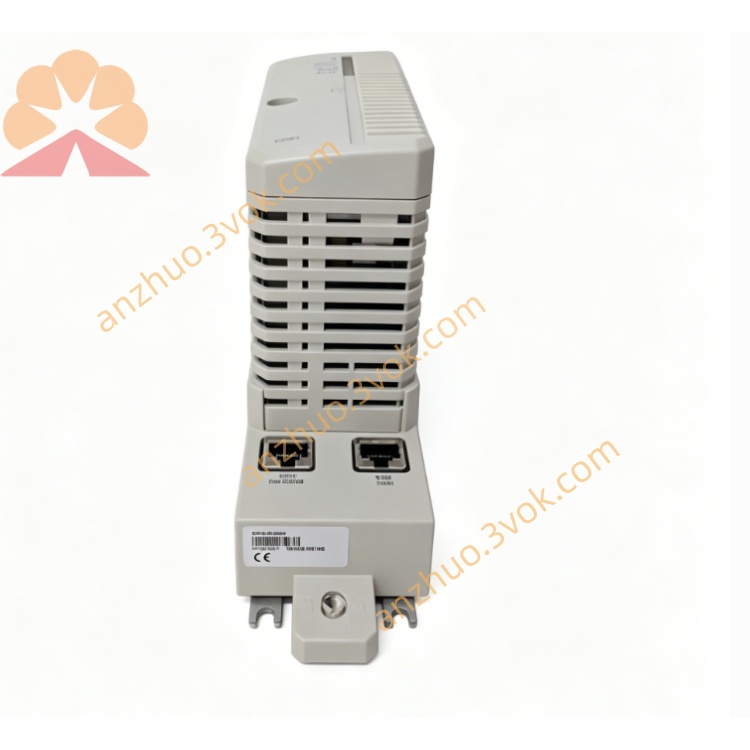

4. Mechanical

• Dimensions (D × H × W): 127.5 × 185 × 59 mm

• Weight: 0.62–0.7 kg (including baseplate)

• Mounting: Plug‑in to AC 800M rack (TP867 baseplate, 60 mm width)

• Cooling: Natural convection (no fan)

5. Key Features

• High‑Speed Modbus TCP: Real‑time data exchange with 10/100 Mbps

• Hot‑Swap Support: Replace module without system shutdown

• Redundancy Ready: Dual‑module redundancy for high availability

• Diagnostics: LED status indicators, fault logging, self‑diagnosis

• Compatibility: AC 800M, 800xA, and Modbus TCP‑compliant devices

6. Compliance

• RoHS: Compliant with EU Directive 2011/65/EU

• WEEE: Category 5 (small equipment)

• HS Code: 8517.62 (communication equipment)
