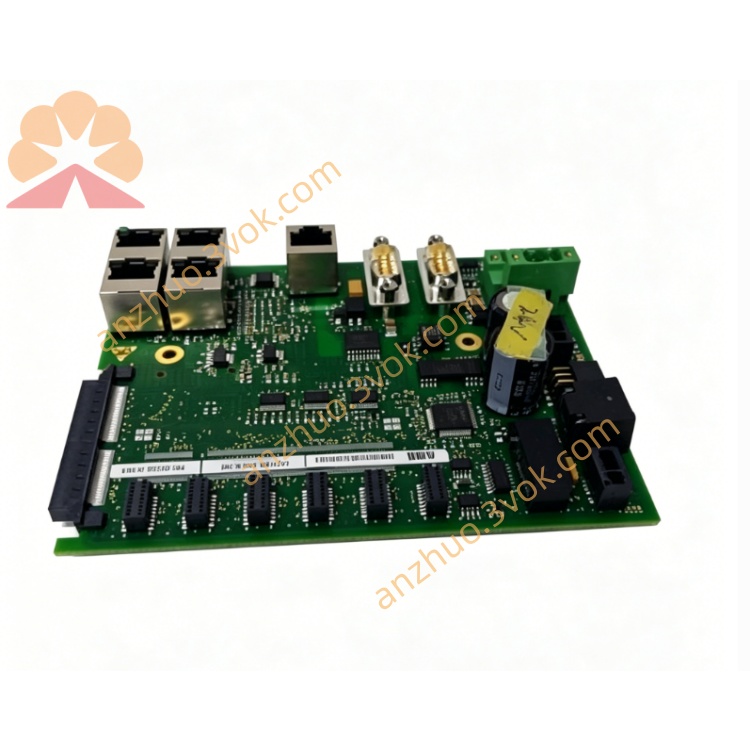

1. General & Electrical

• Operating Voltage: 24 VDC ±10%

• Power Consumption: < 12 W

• Input Protection: ±40 V peak transient

• Isolation: 500 VDC (field to logic)

• Redundancy: Dual 24 VDC input supported

2. Processor & Memory

• CPU: 32‑bit industrial processor

• Clock Speed: 800 MHz – 1 GHz

• Flash Memory: 4 GB – 8 GB (industrial grade)

• RAM: 512 MB DDR3

• Firmware: Upgradeable via Ethernet/backplane

3. Communication Interfaces

• Ethernet: 2 × RJ45, 10/100 Mbps (Modbus TCP, PROFINET)

• Serial: 2 × isolated RS‑232/485

• Fieldbus: PROFIBUS DP (DPV0/DPV1)

• Backplane: High‑speed ABB 800PEC bus

• Baud Rates: 9.6 kbps – 100 Mbps (interface‑dependent)

4. I/O Specifications

Digital I/O

• Channels: 16 × opto‑isolated DI / 16 × DO

• DI Voltage: 24 VDC

• DO Rating: 24 VDC / 0.5 A (transistor)

• Response Time: ≤ 1 ms

Analog I/O (Optional)

• Channels: 4 × 16‑bit AI

• Ranges: 0–10 VDC / 4–20 mA

• Accuracy: ≤ 0.2% FS

High‑Speed Counters

• Channels: 2 (encoder/pulse, up to 1 MHz)

5. Environmental Ratings

• Operating Temperature: −25 °C to +70 °C (derate > +55 °C)

• Storage Temperature: −40 °C to +85 °C

• Humidity: 5%–95% RH, non‑condensing

• Vibration: 1 g (5–150 Hz, IEC 60068‑2‑6)

• Shock: 15 g peak (11 ms)

• Protection: IP20 (board level)

• Certifications: CE, UL, RoHS

6. Mechanical

• Dimensions (W × H × D): 200 × 105 × 55 mm

• Weight: 0.44 kg

• Mounting: Plug‑in card (ABB 800PEC rack) / DIN rail adapter available

7. Key Features

• High EMC Immunity: For harsh power‑converter environments

• Diagnostics: LED status, fault logging, self‑diagnosis

• Protection: Overvoltage, overcurrent, short‑circuit, ESD

• MTBF: >200,000 hours (25 °C)

8. Compatibility

• Systems: ABB 800xA, 800PEC, AC 800M

• Related Modules: PDD500A101, PDD205A1121, CMA120
