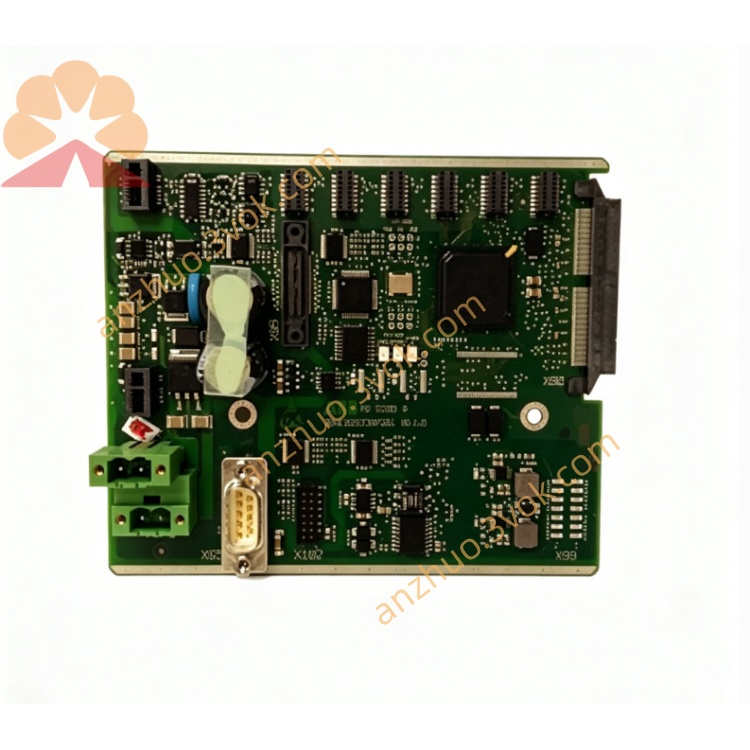

1. Processor & Memory

• CPU: 32‑bit high‑performance industrial RISC processor

• Clock Speed: 500 MHz

• RAM: 4 GB DDR4 (expandable via 2× SO‑DIMM slots)

• Flash: 16 GB industrial‑grade (onboard)

• Battery‑backed SRAM: 2 MB (data retention during power loss)

• Firmware: Upgradeable via Ethernet or service port

2. Power Supply

• Input Voltage: 24 VDC ±10% (external) + 5 VDC (backplane)

• Power Consumption: 28 W nominal, 35 W peak

• Isolation: 500 VDC (field side to control logic)

• Redundancy: Dual 24 VDC input supported

3. Communication Interfaces

• Ethernet: 2 × RJ45 (10/100/1000 Mbps, Modbus TCP, PROFINET, IEC 61850)

• Serial: 2 × isolated RS‑232/485

• Fieldbus: PROFIBUS DP, Modbus RTU

• Fiber Optic: 1 × sync/link port (for power unit synchronization)

• Baud Rates: 9.6 kbps – 1 Gbps (depending on interface)

4. I/O & Control Features

• Control Modes: Open‑loop, voltage, current/torque, IR compensation, Hall sensor, encoder, tachogenerator, analog position loop (ANP)

• Feedback Interfaces:

  • Incremental encoder (5 V/24 V, up to 1 MHz)

  • Hall sensor inputs

  • Analog tachometer (±10 V)

• Analog I/O:

  • 4 × 16‑bit AI (0–10 V / 4–20 mA)

  • 2 × 12‑bit AO (0–10 V / 4–20 mA)

• Digital I/O:

  • 8 × isolated DI (24 VDC)

  • 4 × relay DO (250 VAC / 5 A)

5. Environmental Ratings

• Operating Temperature: −20 °C to +70 °C

• Storage Temperature: −40 °C to +85 °C

• Humidity: 5%–95% RH, non‑condensing

• Vibration: 1 g (5–150 Hz, IEC 60068‑2‑6)

• Shock: 15 g peak (11 ms)

• Protection: IP20 (board level)

• Certifications: CE, UL, RoHS, IEC 61000‑6‑2/4

6. Mechanical

• Dimensions (W × H × D): 210 × 180 × 35 mm

• Weight: 0.68 kg

• Mounting: Rack slot (ABB 800PEC cabinet)

• Cooling: Natural convection (no fan required)

7. Key Features

• High Precision: Excitation current control accuracy ≤ ±0.5%

• Fast Response: Closed‑loop bandwidth > 5 kHz

• Diagnostics: LED status, fault logging, real‑time monitoring

• Protection: Overvoltage, overcurrent, short‑circuit, overtemperature

• MTBF: >250,000 hours (25 °C ambient)

8. Compatibility

• Systems: ABB 800xA, 800PEC, AC 800M

• Related Modules: PDD500A101, CMA120, CMA132, CMA136
