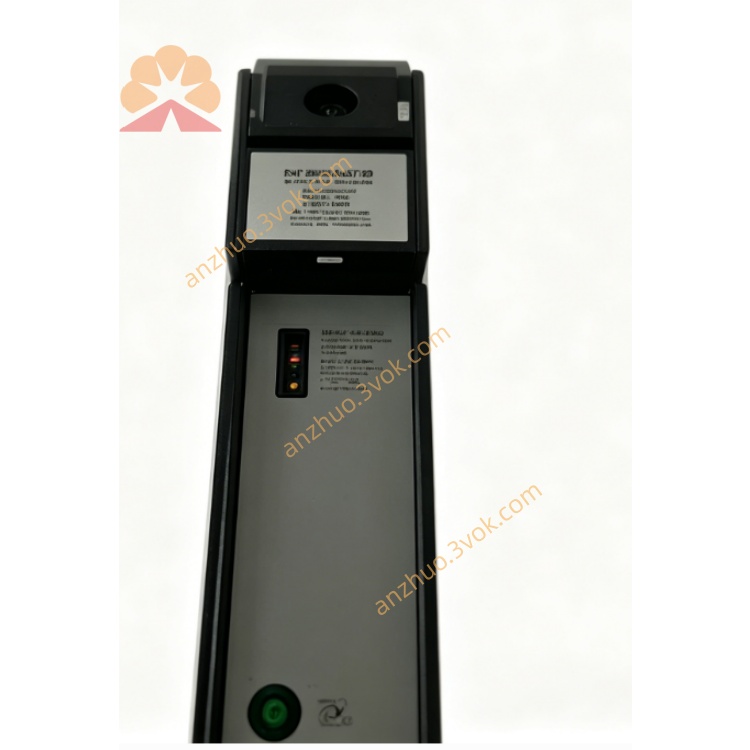

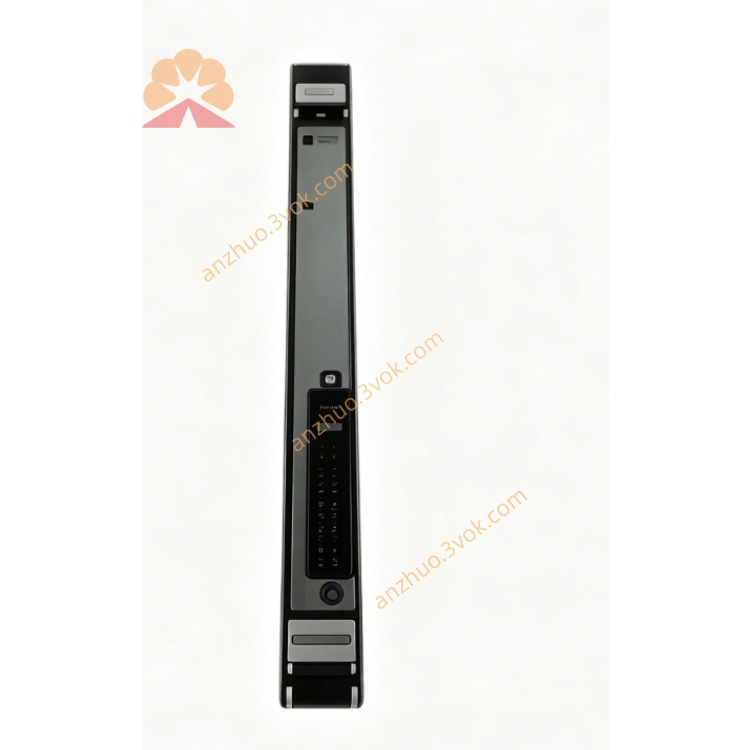

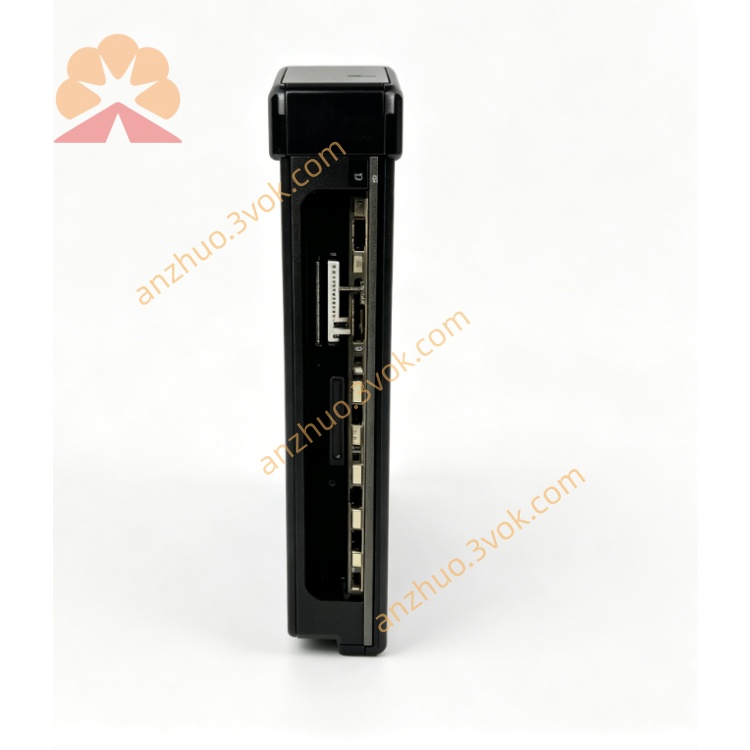

1. General Information

• Part Number: 57411, 0-57411, 57C411, 57411-2E, 57411-2F

• Manufacturer: Reliance Electric, Rockwell Automation

• Series: AutoMax DCS 5000 Control System

• Module Type: Resolver Position Feedback Input Module

• Application: Collect motor speed, angle and position signal for servo & drive system

• Condition: Obsolete discontinued, refurbished and used parts available

• Installation: Standard AutoMax rack plug-in mounting

2. Electrical Specifications

• Backplane Power Supply: +5VDC, ±12VDC

• Input Signal: Resolver SIN, COS, TRIG differential signal

• Isolation Voltage: 2500Vrms

• Resolution: High precision position decoding

• Power Consumption: ≤7W

• Indicator Lights: OK, Direction, Feedback, Clock, IPS status LED

• Terminal Connection: Dedicated screw terminals for resolver wiring

3. Mechanical Data

• Dimension: 31.8 × 187.3 × 38.1 mm

• Weight: Approx. 0.95 kg

• Surface Treatment: Conformal coating, moisture and dust proof

• Connection: Rear gold finger connector, front field wiring terminals

4. Environmental Specifications

• Operating Temperature: 0°C ~ +55°C

• Storage Temperature: -20°C ~ +70°C

• Relative Humidity: 10% ~ 90% RH, non-condensing

• Certification: UL, CSA, CE standard

5. Main Features

• Single channel high accuracy resolver feedback acquisition

• Strong anti-interference differential signal design

• Multiple LED status diagnosis for fast trouble shooting

• Support hot swap replacement without system stop

• Stable performance for heavy industry drive control system

6. Compatibility

• Compatible Rack: AutoMax 6-slot /10-slot /16-slot rack

• Match CPU Module: 57407, 57C407 series processor

• Compatible I/O Modules: 57401,57402,57405,57406,57410

• Interchangeable: All 57411 series models can be directly replaced
