1. General Information

• Part Number: 57410 (0-57410, 57C410, 57410-1/‑C/‑D)

• Manufacturer: Reliance Electric (Rockwell Automation)

• Series: AutoMax PLC / DCS 5000

• Type: 4‑Channel Isolated Analog Output Module

• Application: Provides analog voltage/current outputs for drives, valves, meters

• Status: Obsolete (discontinued); refurbished/surplus available

• Mounting: AutoMax rack‑mount, plug‑in backplane

• Manual: J‑3618

2. Electrical Specifications

• Backplane Supply: +5 VDC, ±12 VDC; –12 V @ 5 mA

• Output Channels: 4 isolated channels (channel‑to‑channel & logic‑to‑channel isolation)

• Voltage Output Range: –10 VDC to +10 VDC, 10 mA max per channel

• Current Output Range: 0–20 mA or 4–20 mA (field‑selectable)

• Isolation: 2,500 Vrms (logic‑to‑channel, channel‑to‑channel)

• Filter: 100 Hz first‑order low‑pass per channel

• Resolution: 12‑bit

• Accuracy: ±0.1% full scale (25 °C)

• Power Dissipation: ≤ 8 W

3. Mechanical Characteristics

• Form Factor: Standard AutoMax plug‑in module

• Dimensions (W × D × H): 31.8 × 187.3 × 38.1 mm (1.25 × 7.375 × 1.5 in)

• Weight: Approx. 1.1 kg (2.5 lbs)

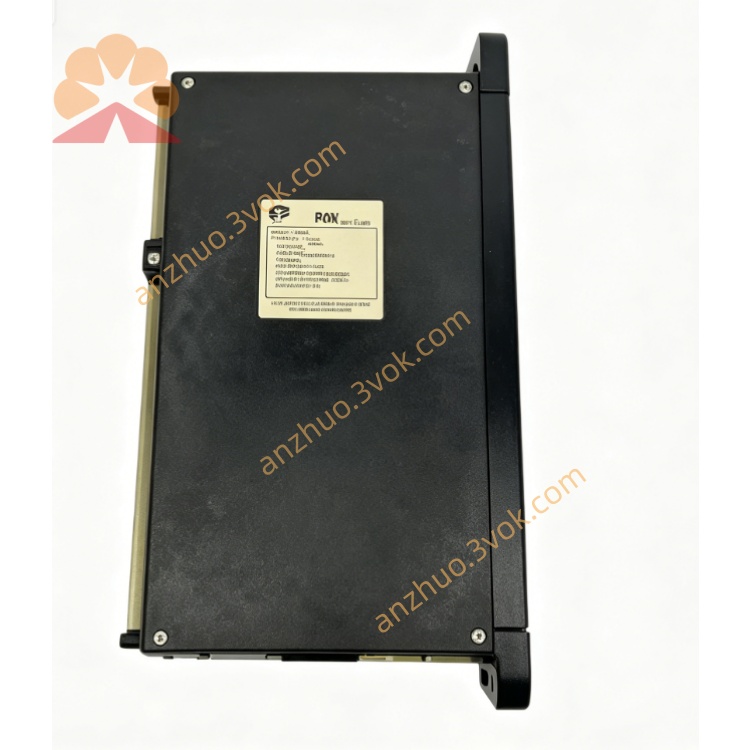

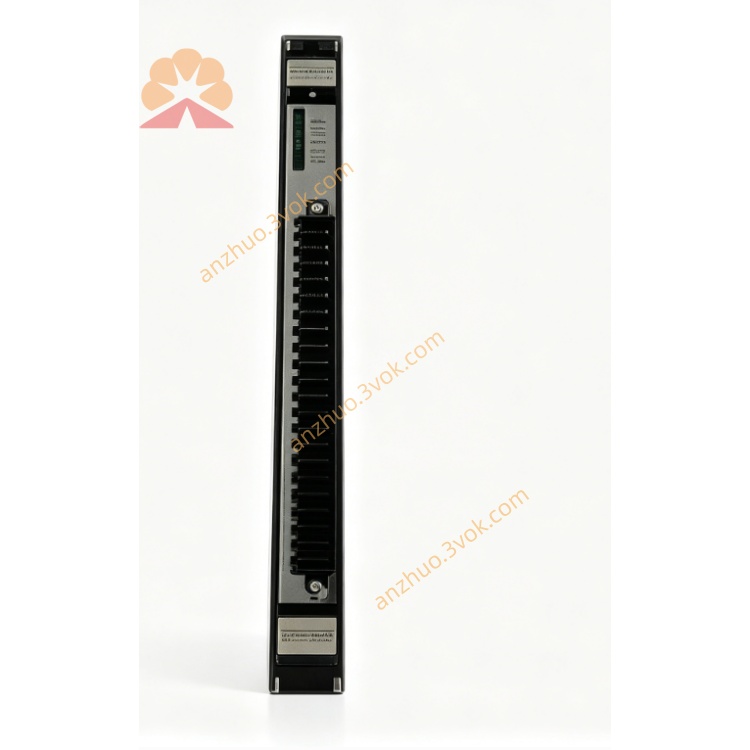

• Front Panel:

  • 4 × channel status LEDs

  • Terminal strip (screw terminals) for analog outputs

• Connection: Rear gold‑finger edge connector (backplane); front screw terminals

• Coating: Conformal coated (moisture/dust resistance)

4. Environmental Ratings

• Operating Temperature: 0 °C to +55 °C

• Storage Temperature: -20 °C to +70 °C

• Humidity: 10%–90% RH, non‑condensing

• Altitude: Up to 3,000 m (10,000 ft)

• Certifications: UL, CSA, CE (original standards)

5. Key Features

• Four fully isolated analog outputs (voltage/current configurable)

• 2,500 V isolation for industrial noise immunity

• 12‑bit resolution with high accuracy and stability

• Built‑in 100 Hz low‑pass filters for noise reduction

• LED status indicators for each channel

• Hot‑swap capable (replace without system shutdown)

• Compatible with all AutoMax racks & DCS 5000 CPUs

6. Compatibility

• Racks: AutoMax 6‑slot, 10‑slot, 16‑slot racks

• CPUs: 57407, 57407‑4H/4J, 57C407

• I/O Modules: 57401, 57405, 57406, 57408 series

• Replacement: 57410‑1/‑C/‑D & 57C410 fully interchangeable
