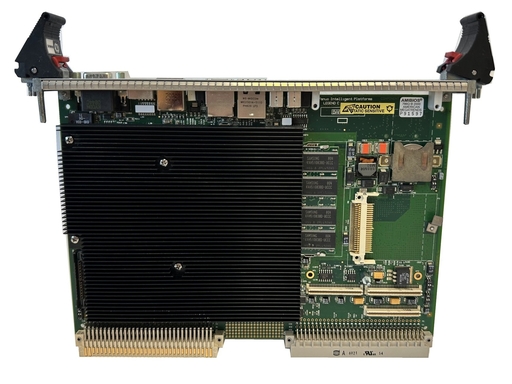

Detailed Product Description: VMIVME-7807RC / VME-7807RC-424001 / 350-93007807-424001K

1. Product Identification

• Base Model: VMIVME-7807RC

• Specific Part Number: VME-7807RC-424001

• Assembly/Drawing Number: 350-93007807-424001K

• Manufacturer: GE Fanuc (now Abaco Systems)

• Product Type: 6U VMEbus Single Board Computer (SBC)

• Compliance: RoHS Compliant (denoted by "RC" suffix)

• Form Factor: Standard 6U VME Eurocard, Single Slot



2. General Overview

3. Core Hardware Specifications

3.1 Processor & Chipset

• CPU: Intel Pentium M Processor (1.8 GHz, factory-configured for this part number)

• L2 Cache: 2 MB

• System Bus: 400 MHz Front Side Bus

• Chipset: Intel 855GME (Graphics & Memory Controller Hub) + Intel 6300ESB I/O Controller Hub

3.2 Memory & Storage

• System Memory:

  • Up to 1.5 GB DDR SDRAM (1 GB via 200-pin SODIMM + 512 MB optional solder-down memory)

  • Supports ECC (Error-Correcting Code) for high reliability

• Non-Volatile Storage:

  • Supports up to 2 GB bootable CompactFlash (via secondary IDE port)

  • 32 KB of battery-backed Non-Volatile RAM (NVRAM)

• BIOS: Reprogrammable Flash memory for system and video BIOS

3.3 VMEbus Interface

• VME Standard: VME64, VME64x (P1/P2 connectors)

• Controller: Tundra Universe II VME interface chipAbaco Systems

• Operation Modes: VME Bus Master / Slave, System Controller capable

• Data/Address: 32-bit Addressing (A32), 32/64-bit Data Transfers (BLT32/BLT64)

3.4 Onboard I/O Interfaces

• Ethernet: Dual Gigabit Ethernet (Intel 82546GB)

  • One port front panel (RJ45), one port rear I/O (P2)

  • Optional VITA 31.1 rear I/O routing supportAbaco Systems

• Serial Ports: 4x asynchronous serial ports (RS-232/422/485 configurable)

• USB: 4x USB 2.0 ports (2 front, 2 rear via P2)

• Video: Integrated SVGA (front panel) & DVI-I (rear I/O) dual-head graphics

• Legacy I/O: PS/2 (Keyboard/Mouse), SATA, IDE interfaces

• Front Panel: Power/Run/Fault LEDs, manual reset button

3.5 Expansion & System Features

• PMC Slot: 1x PCI-X (66 MHz) PMC mezzanine expansion slotAbaco Systems

• Watchdog Timer: Software-selectable hardware watchdog with system reset capability

• Real-Time Clock: Battery-backed RTC for timekeeping

• Remote Boot: Supports network booting via EthernetAbaco Systems

• Cooling: Passive heatsink, fanless design

4. Environmental & Physical Characteristics

• Dimensions: Standard 6U VME (233 mm x 160 mm)

• Power: +5 VDC (±5%) from VME backplane; 7.28 A typical (1.8 GHz CPU)

• Operating Temp: 0°C to +60°C (extended range for 1.1 GHz CPU)

• Storage Temp: -25°C to +80°C

• Humidity: 5–95% non-condensing

• Shock/Vibration: Conforms to industrial/military rugged standards

• Weight: ~1.2 kg

5. Supported Operating Systems

• Windows: XP, 2000, XPe Embedded

• Real-Time OS: VxWorks, QNX, LynxOS

• Embedded Linux: Various distributions

6. Key Features & Advantages

1. High-Performance Pentium M: Low-power, high-efficiency 1.8 GHz CPU with 2 MB L2 cache.

2. Maximized Memory: Up to 1.5 GB DDR SDRAM with ECC for data integrity.

3. Dual Gigabit Ethernet: High-bandwidth networking for I/O-intensive tasksAbaco Systems.

4. Flexible I/O: Rich serial/USB/graphics/legacy interfaces minimize add-on cards.

5. PMC Expansion: PCI-X slot for custom I/O (DAQ, communication, etc.)Abaco Systems.

6. Rugged & Reliable: Passive cooling, wide tolerance, and industrial-grade components.

7. RoHS Compliant: Environmentally safe design (VMIVME-7807RC).

8. Long-Term Support: Designed for extended lifecycles in mission-critical systemsAbaco Systems.

7. Typical Applications

• Military & Aerospace Embedded Control

• Industrial Automation & Process Control

• High-Speed Data Acquisition Systems

• Transportation & Heavy Machinery Control

• Test & Measurement Instrumentation

• Telecommunications Infrastructure

• Energy/Power Generation Control

8. Part Number Breakdown

• VMIVME-7807: Base VME SBC series

• RC: RoHS Compliant configuration

• 424001: Specific factory hardware configuration

• 350-93007807-424001K: Official assembly/drawing revision (K suffix)
