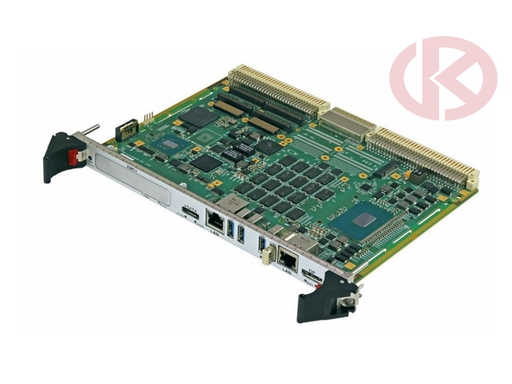

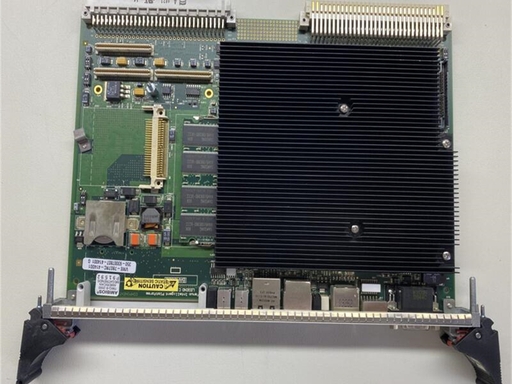

Product Specification: GE VMIVME-7807 (VMIVME-017807-413000 / 350-0001007807-413000 D)

1. Product Identification

• Base Model: VMIVME-7807

• Part Number: VMIVME-017807-413000

• Serial Number: 350-0001007807-413000

• Variant: D Module

• Manufacturer: GE Fanuc Embedded Systems (now part of Abaco Systems)

• Product Type: High-Performance VMEbus Single Board Computer (SBC)





2. General Description

3. Core Specifications

3.1 Processor

• CPU: Intel® Pentium® M (1.1 GHz, 1.6 GHz, or 1.8 GHz options)

• L2 Cache: 2 MB (for 1.8 GHz configuration)

• Chipset: Intel® 855GME

3.2 Memory

• DDR SDRAM: Up to 1.0 GB via SODIMM + 512 MB soldered (max 1.5 GB total)

• Non-Volatile RAM (NVRAM): 32 KB for critical data retention

• Flash Storage: Up to 1 GB CompactFlash (bootable)

• Interfaces: Ultra IDE (rear I/O), SATA (rear I/O)

3.3 VMEbus Interface

• Compliance: VME64x

• Data Transfer Rate: Up to 80 MB/s

• Address Bus: 64-bit

• System Controller Capability: Programmable arbitration (Round Robin, Priority, Single Level)

• Bus Modes: Release-On-Request (ROR), Release-When-Done (RWD), VME Capture (VCAP)

• Interprocessor Communication: Four 32-bit mailboxes

3.4 Expansion

• PMC Slot: One PCI-X (66 MHz) expansion site (front-panel access)

• P0 Connector: Optional VITA 31.1 interface

4. I/O & Communication Interfaces

4.1 Ethernet

• Primary: 10/100 Mbps (front panel)

• Optional: Dual Gigabit Ethernet (front/rear I/O)

• Feature: Remote Ethernet booting

4.2 Serial Ports

• COM1: Front-panel RS-232

• COM2/3/4: Rear-panel RS-232 (3 ports)

4.3 USB

• USB 2.0: Four ports (2 front, 2 rear)

4.4 Video

• SVGA: Front-panel connector

• DVI-D: Rear-panel digital output (dual-head display)

4.5 Other I/O

• Keyboard/Mouse: Front-panel PS/2 ports

• Real-Time Clock (RTC): Onboard calendar/clock

• Front Panel: Reset switch, status LED indicators

• Watchdog Timer: Software-selectable with system reset

• Timers: Four software-controlled general-purpose timers

5. Physical & Environmental Specifications

• Form Factor: 6U VME Eurocard (single-slot)

• Cooling: Passive (heatsink only, no fan)

• Power Input: +5V DC @ 5A

• Dimensions: 233 mm × 160 mm × 25 mm

• Weight: ~1.2 kg

• Operating Temperature: -40°C to +70°C (industrial grade)

• Compliance: RoHS (VME-7807RC variant)

6. Supported Operating Systems

• Real-Time: VxWorks®, QNX®

• Embedded/Standard: Windows XP, Windows 2000, Linux®

• Legacy: Solaris™

7. Target Applications

• Industrial automation & process control

• Data acquisition systems

• Factory automation & robotics

• Aerospace & defense embedded systems

• Telecommunications infrastructure

• Test & measurement equipment

• Mission-critical industrial control

8. Part Number Interpretation

• VMIVME-7807: Base product family (VMEbus SBC)

• 017807-413000: Specific hardware configuration (CPU speed, memory, I/O)

• 350-0001007807-413000: Unique serial/identification number

• D: Special variant suffix (industrial temperature, extended reliability)

9. Reliability & Compliance

• Designed for 24/7 operation in harsh industrial environments

• Conformal coating optional for high-humidity/chemical exposure

• Compliance with VMEbus standards (VME64x)

• RoHS-compliant version available (VME-7807RC)
