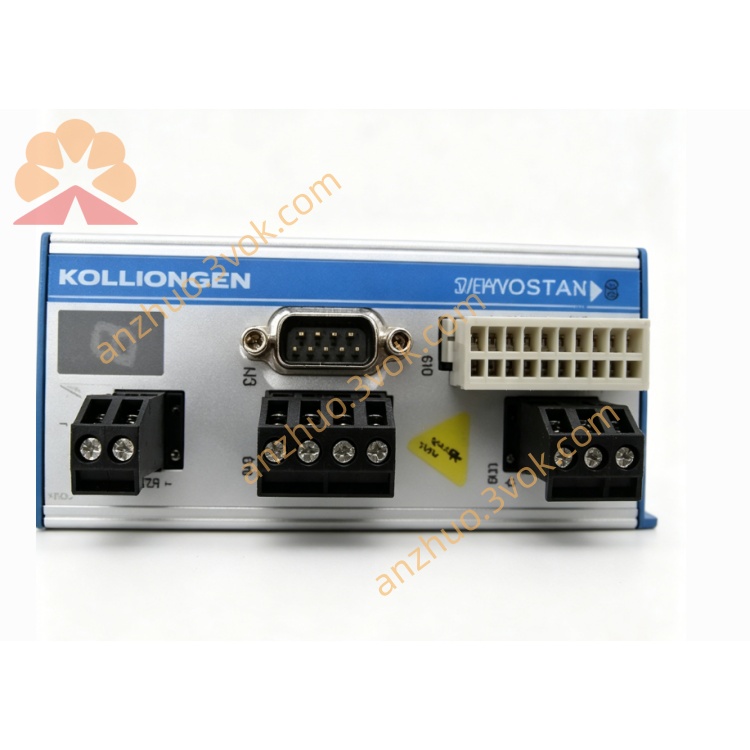

Kollmorgen SERVOSTAR PD/PE 24VDC 5A Compact Digital Servo Drive (Rev H)
1. General Description
2. Model Decoding
PRD: SERVOSTAR low-voltage servo drive series
PE: 24 VDC dedicated input (vs PB = wide voltage)
205: 24 V system, 5 A continuous output
S: Standard feedback (incremental encoder only)
0H: Hardware revision H, standard I/O
10: Standard firmware, no customization
3. Key Specifications
Power Input (DC)
Rated Voltage: 24 VDC ±10%
Input Current: 6 A max
Input Power: 144 VA
Undervoltage Lockout: ~20 VDC
Overvoltage Protection: ~30 VDC
Output (AC to Motor)
Continuous Current: 5 Arms
Peak Current: 10 Arms (2× overload, 500 ms)
Output Voltage: 15 VAC max
Rated Power: ≤130 W
Motor Compatibility: 24 V brushless servos (AKM1x, Silverline S)
Control & Feedback
Control Modes: Torque / Speed / Position
Feedback: Incremental encoder (standard)
Command Interfaces: ±10 V analog, pulse/direction, CW/CCW pulses
Communication: RS-232 / RS-485
Speed Loop Bandwidth: up to 400 Hz
Protection Features
Overcurrent, overvoltage, undervoltage, overtemperature, short circuit
Regenerative braking (external resistor required)
Mechanical & Environmental
Protection Class: IP20
Cooling: Passive, fanless
Operating Temperature: 0 °C to +45 °C
Storage Temperature: −20 °C to +70 °C
Weight: ~530 g
Mounting: Standard cabinet DIN-rail
4. Differences from PRD-PE205E0z-00
S vs E: S = standard encoder-only feedback; E = enhanced (encoder + resolver)
0H vs 0z: 0H = Rev H hardware; 0z = standard I/O variant
10 vs 00: Firmware revision and configuration
5. Applications
24 VDC industrial control systems
Battery-powered AGVs and mobile robots
Laboratory automation and medical devices
Electronic assembly and precision positioning
Small handling and sorting equipment
6. Compatible Motors
Kollmorgen AKM series 24 V low-power servos
Kollmorgen Silverline S series 24 V brushless servos
Other 24 VDC brushless servos ≤130 W
