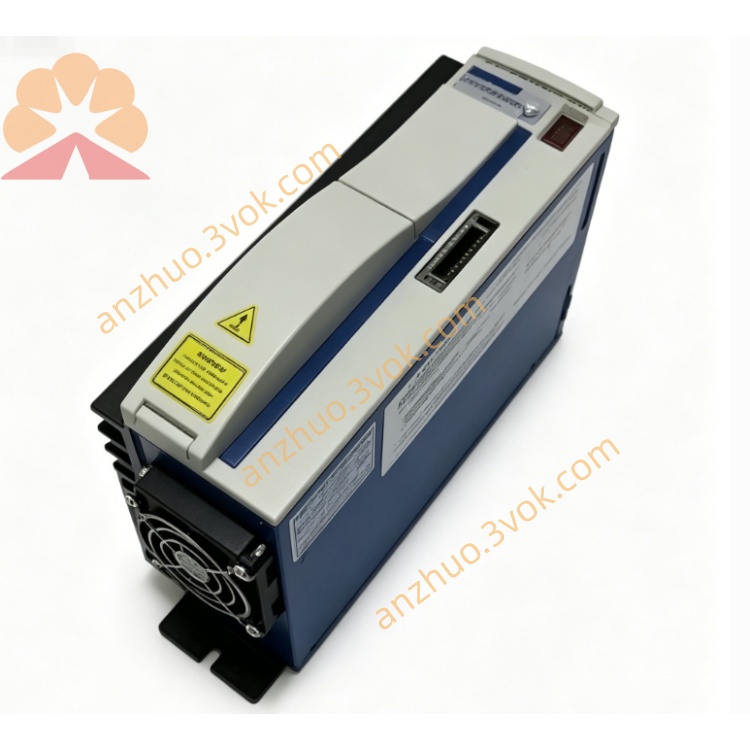

PRD-P306250Z-45

Kollmorgen SERVOSTAR SP Series Digital Servo Drive

1. General Description

2. Model Definition

• PRD: Kollmorgen SERVOSTAR SP servo drive series

• P: Compact Eurocard type hardware platform

• 30: 115 / 230 VAC universal voltage class

• 6250: 6 A continuous current, 2500 meters altitude rating

• Z: Special optimized firmware version

• 45: Custom factory configuration with coated PCB and enhanced environmental adaptability

3. Technical Specifications

Power Input

• Rated Voltage: 115 VAC / 230 VAC

• Input Phase: Single-phase / Three-phase compatible

• Frequency: 50 / 60 Hz

• Voltage Tolerance: ±10%

• DC Bus Undervoltage: 90 VDC

• DC Bus Overvoltage: 430 VDC

Output Performance

• Continuous Output Current: 6 Arms

• Peak Output Current: 12 Arms

• Overload Capacity: 2 times short-time overload

• Matched Motor Power: 1.5 kW ~ 2.2 kW

Control and Feedback

• Control Modes: Torque / Speed / Position mode

• Supported Feedback: Incremental encoder, resolver optional

• Command Interface: ±10 V analog signal, pulse and direction

• Communication: RS-232 / RS-485 serial port

Protection and Function

• Comprehensive protection: Over-current, over-voltage, under-voltage, over-temperature, overload and short circuit

• Built-in regenerative braking function

• Coated PCB design for dust and moisture resistance

Mechanical and Environmental

• Protection Class: IP20

• Cooling Method: Forced air cooling with built-in fan

• Operating Temperature: 0 °C ~ +45 °C

• Storage Temperature: -20 °C ~ +70 °C

• Installation: Standard cabinet Eurocard mounting

4. Key Features

• Compact ultra-thin Eurocard structure, saving cabinet space

• Universal 115/230 VAC wide voltage input

• Z-version optimized firmware for smoother low-speed operation and higher positioning accuracy

• 45 customized version with anti-corrosion coated PCB, suitable for harsh industrial environment

• Multiple control modes and complete fault protection functions

• Stable operation, strong anti-interference capability

5. Compatible Motors

• Kollmorgen AKM series medium and small power servo motors

• Kollmorgen Silverline S / H series servo motors

• Other standard 115/230 VAC brushless servo motors

6. Application Fields

• Small and medium CNC machine tools and engraving equipment

• Automated gantry handling and positioning systems

• Packaging, printing and textile industrial machinery

• Electronic assembly, testing and laboratory automation equipment
