PRD-P303250Z-35

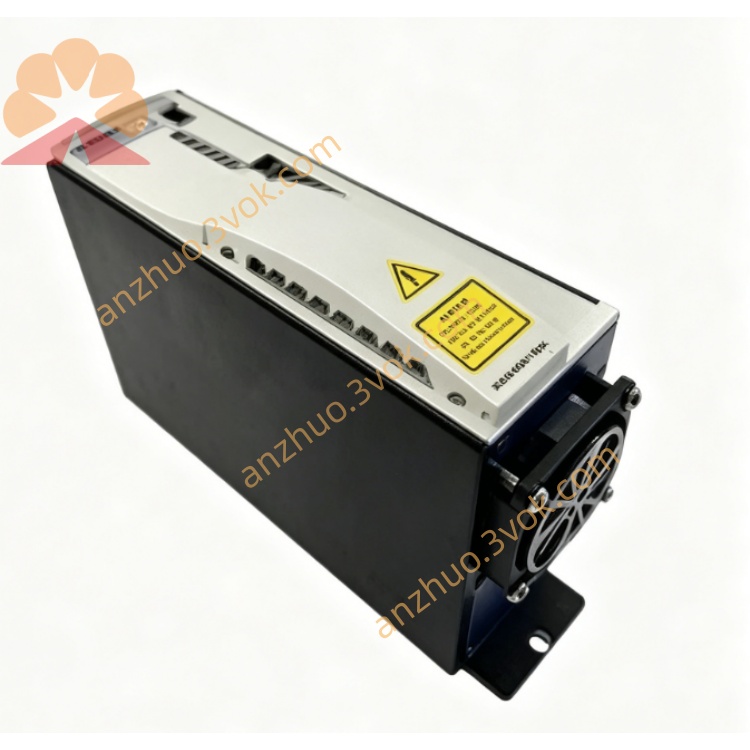

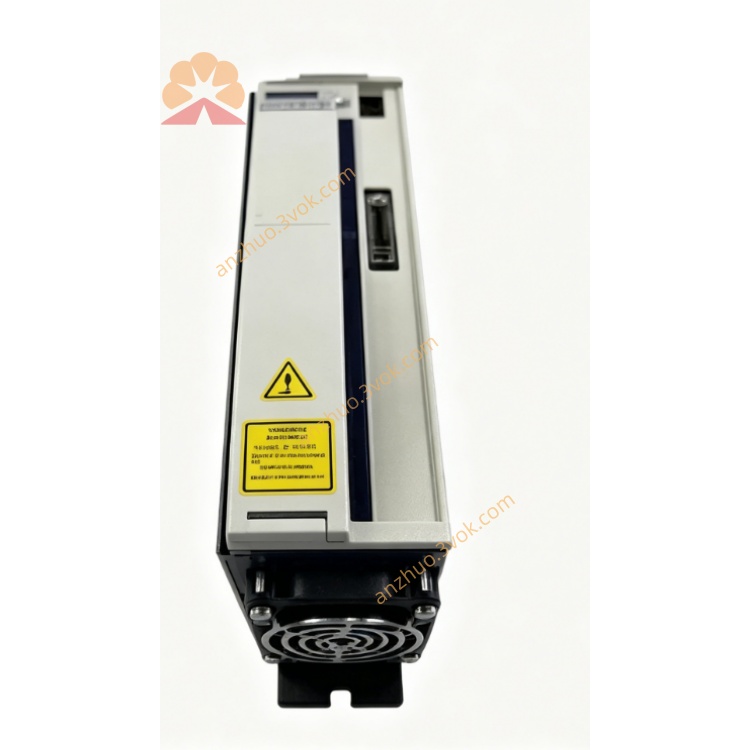

Kollmorgen SERVOSTAR SP Series Compact Digital Servo Drive

1. General Description

2. Model Breakdown

• PRD: SERVOSTAR SP series (compact, low-power)

• P: SP chassis (Eurocard, compact)

• 30: 115/230 VAC universal voltage

• 3250: 3 A continuous / 2500 m altitude rating

• Z: Special firmware variant

• 35: Custom build + coated PCB + integrated blower

3. Key Specifications

Power Input

• Voltage: 115 / 230 VAC, single‑phase

• Frequency: 50/60 Hz

• Input VA: 0.88–1.4 kVA

• DC bus: 90 VDC (undervoltage) / 430 VDC (overvoltage)

Output

• Continuous: 3 Arms

• Peak: 6 Arms (2× overload, 500 ms)

• Rated power: 1.5 kVA

• Matched motor power: 0.5–1.5 kW (230 V)

Control & Feedback

• Modes: Torque / Speed / Position

• Feedback: Incremental encoder (standard); resolver option

• Command: ±10 V analog, pulse/direction

• Communication: RS‑232/485 (no fieldbus)

Protection & Safety

• Overcurrent, overvoltage, undervoltage, overtemperature, short circuit, overload

• Integrated regenerative braking

• Coated PCB for harsh environments

Mechanical & Environmental

• Enclosure: IP20 (cabinet/Eurocard mount)

• Cooling: Integrated blower

• Operating temp: 0 °C to +45 °C

• Storage temp: −20 °C to +70 °C

• Dimensions: 199 × 100 × 12 TE (Eurocard)

• Weight: ~1.2 kg

4. Key Features

• 3 A continuous / 6 A peak for small, high‑dynamic motors

• Ultra‑compact Eurocard format for dense cabinet layouts

• Coated PCB + integrated blower for dust/humidity resistance

• Standard analog/pulse command + RS‑232/485

• 35 custom build with optimized firmware for OEMs

5. Compatible Motors

• Kollmorgen AKM low‑power series (AKM1x / AKM2x, 0.5–1.5 kW)

• Kollmorgen Silverline S series (S‑2xxx)

• Other 115/230 VAC, 0.5–1.5 kW brushless servo motors (incremental encoder)

6. Applications

• Small CNC routers, engraving machines

• Light‑duty gantries, pick‑and‑place

• Semiconductor & electronics assembly

• Medical equipment & laboratory automation

• Packaging, printing & textile small machinery

7. Notes

• Legacy product: SERVOSTAR SP is discontinued; replacement is AKD‑P003 (3 A class)

• Setup software: MOTIONLINK (legacy)
