PRD-B010R00E-0S

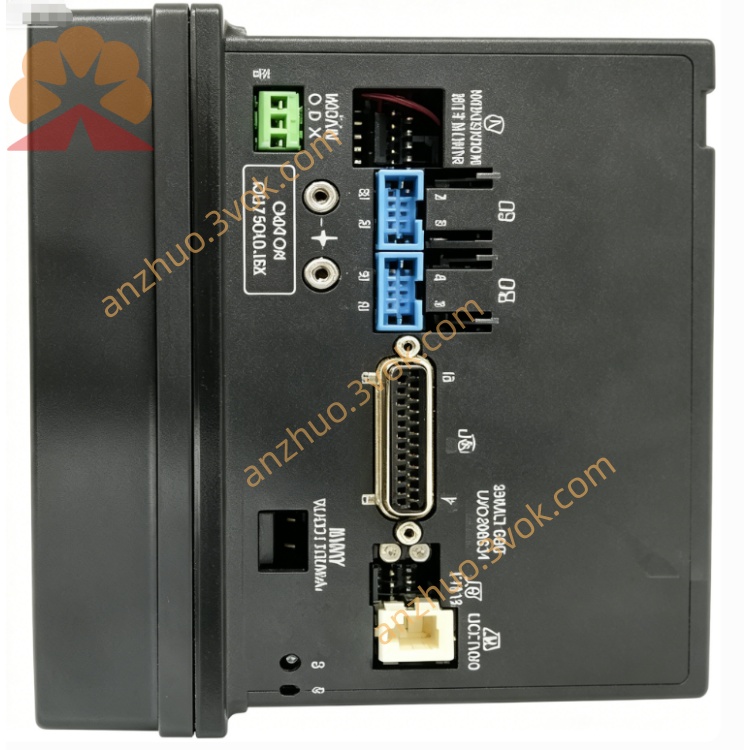

Kollmorgen SERVOSTAR CD Series Digital Servo Amplifier

1. General Description

2. Model Breakdown

• PRD: Product line (SERVOSTAR CD series)

• B: Series variant (standard CD)

• 010: 10 A continuous current

• R: Feedback = Resolver

• 00: Standard I/O / base firmware

• E: 230 VAC hardware (single/three-phase)

• 0S: Special factory config (safety/connector variant)

3. Key Specifications

Power Input

• Voltage: 200–240 VAC, 1φ/3φ

• Frequency: 50/60 Hz

• DC Bus: 90 VDC (undervoltage trip) / 430 VDC (overvoltage trip)

Output

• Continuous: 10 Arms

• Peak: 20 Arms (500 ms, 2× overload)

• Rated power: 3.5 kVA (45 °C)

• Matched motor power: 1–3 kW (230 V)

Control & Feedback

• Modes: Torque / Speed / Position

• Feedback: Resolver (R) (standard); encoder/sine encoder optional

• Command: ±10 V analog, pulse/dir, SERCOS fiber-optic bus

• Communication: RS-232/485, SERCOS

Protection & Safety

• Overcurrent, overvoltage, undervoltage, overtemperature (80 °C trip), short circuit

• Regenerative braking

• STO (Safe Torque Off) (–0S variant)

Mechanical & Environmental

• Enclosure: IP20 (cabinet mount)

• Cooling: Forced air

• Operating temp: 5 °C to +45 °C

• Storage temp: 0 °C to 70 °C

• Heat dissipation: 132 W

4. What’s Special: –0S

• –0S: Not standard –00; typically custom safety wiring, STO enabled, or modified I/O connector pinout.

5. Compatible Motors

• Kollmorgen AKM series (230 V)

• Kollmorgen Silverline H series

• Other 230 VAC brushless servos with resolver feedback

6. Applications

• CNC machine tools

• High-speed packaging

• Robotics

• Material handling

• General automation (1–3 kW, 230 V)

7. Notes

• Legacy product: SERVOSTAR CD is discontinued; replaced by AKD series.

• Use MOTIONLINK software for setup/tuning.
