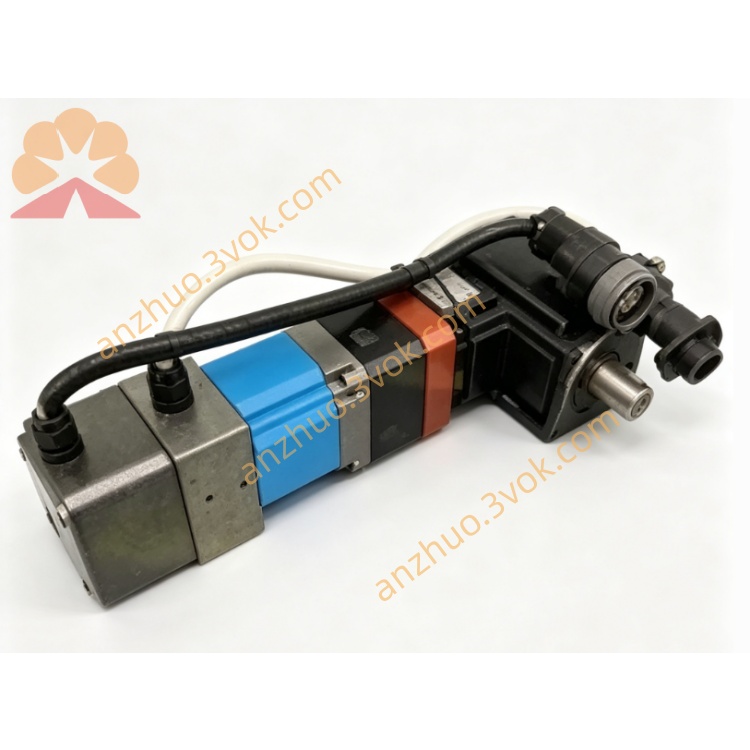

Kollmorgen Silverline Brushless Servo Motor

General Description

Model Definition

• H: Silverline H series brushless servo motor

• 23: NEMA 23 frame size

• 4: Motor stack length and power grade

• H: High voltage winding for 380–480 VAC system

• 0802: Torque and speed specification code

Technical Specifications

Performance Parameters

• Continuous Rated Torque: 8.0 Nm

• Peak Torque: 24.0 Nm

• Rated Speed: 6000 rpm

• Max Speed: 6500 rpm

• Rated Power: 1.1 kW

Electrical Characteristics

• Rated Voltage: 380–480 VAC 3-phase

• Insulation Class: F

• Winding Configuration: High voltage type

Mechanical Structure

• Frame Standard: NEMA 23

• Protection Class: IP65

• Cooling Method: Natural convection

• Shaft: Standard keyway shaft

• Mounting: Flange mounting

Feedback

• Built-in incremental encoder

• High resolution for position and speed closed-loop control

Environmental Conditions

• Operating Temperature: 0 °C to +40 °C

• Storage Temperature: -20 °C to +60 °C

• Relative Humidity: 95% non-condensing

Key Features

• Compact NEMA 23 installation size

• High continuous torque and strong overload capacity

• High voltage design adapts to 380–480 VAC industrial power supply

• IP65 protection for harsh workshop environment

• Low cogging torque, smooth operation

• Maintenance-free bearing design, long service life
