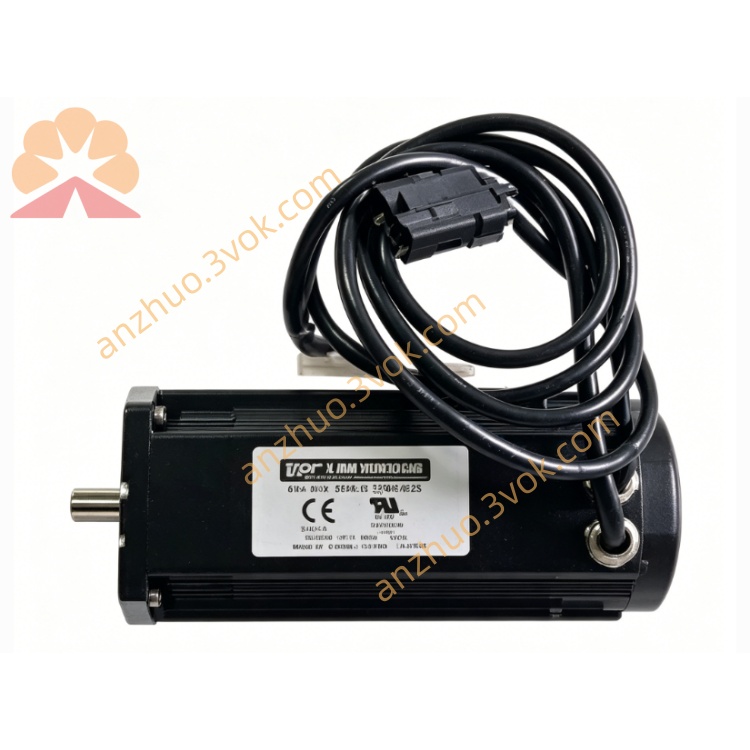

AKM23D-ANMNC-00

Synchronous Servo Motor – English Instruction Manual

1. GENERAL DESCRIPTION

2. MODEL NUMBER DEFINITION

• AKM: Kollmorgen AKM servo motor series

• 23: Frame size 2 (58×58 mm IEC), stack length 3

• D: Winding D (400/480 VAC, 640 VDC max bus)

• A: Standard IEC flange mount (IM B5)

• N: Smooth shaft, no keyway

• M: No holding brake

• N: Standard shaft seal (IP65)

• C: Smart Feedback Device (SFD) encoder

• 00: No special modifications

3. TECHNICAL SPECIFICATIONS

Electrical Data

• Rated power: 0.77 kW

• Rated torque: 0.92 Nm (continuous)

• Stall torque: 1.16 Nm

• Peak torque: 3.84 Nm

• Rated current: 2.19 Arms

• Peak current: 8.8 A

• Max speed: 8,000 rpm

• Torque constant: 0.52 Nm/A

• Winding resistance: 7.2 Ω (line‑to‑line @ 25°C)

• Insulation class: F (155°C)

• Voltage range: 400/480 VAC; 320–640 VDC bus

Mechanical Data

• Flange: 58×58 mm IEC (NEMA 23 equivalent)

• Shaft: 20 mm diameter, smooth (no keyway)

• Protection class: IP65 (dust‑tight, splash‑proof)

• Vibration class: N (DIN EN 60034‑14)

• Brake: None

• Feedback: SFD (Smart Feedback Device), digital, high‑resolution, single‑cable

• Connectors: M23 power + M23 feedback, rotatable

• Weight: approx. 1.8 kg

• Ambient temperature: 0 °C to +40 °C (operation)

• Humidity: 95% rel. humidity, non‑condensing

Shaft Loads

• Max radial load: 145 N

• Max axial load: 60 N

4. KEY FEATURES

• 400/480 VAC high‑voltage winding: Optimized for 640 VDC bus systems.

• SFD single‑cable feedback: Combines power + encoder in one cable; simplifies wiring.

• Low inertia, high dynamic response: Ideal for fast cycling and precise positioning.

• IP65 protection: Suitable for industrial environments (dust, moisture).

• Brushless design: Low maintenance, long service life.

• PTC thermistor protection: Over‑temperature monitoring in stator windings.

• No brake: Reduces cost and length for horizontal‑axis applications.

5. APPLICATIONS

• High‑dynamic positioning systems

• Packaging, printing, textile machinery

• Small CNC machines, robotics, pick‑and‑place units

• Horizontal motion axes (no brake required)

• 400/480 VAC industrial automation systems

6. COMPATIBLE DRIVES

• Kollmorgen AKD / AKD2G series 400/480 VAC servo drives.

7. INSTALLATION & WIRING (SUMMARY)

Mounting

• Use a clean, flat, rigid surface.

• Secure with 4×M5 screws; torque to 4.5–5 Nm.

• Align shaft coupling to avoid radial/axial overloads.

Wiring

• Power + Feedback: SFD single cable to M23 connector; ground shield at drive end.

• EMC: Separate motor cables from control cables; use shielded cables throughout.

8. MAINTENANCE

• Bearings: Lubricated for life; no re‑greasing needed.

• Seals: Inspect periodically to maintain IP65 rating.

• Connections: Check for tightness/corrosion; keep connectors dry.

• Diagnostics: Use Kollmorgen WorkBench software for fault monitoring and tuning.

9. SAFETY NOTES

• Disconnect power before installation/maintenance; motor remains live briefly after stop.

• Ground motor housing properly to avoid electric shock.

• Do not exceed max speed (8,000 rpm) or peak torque (3.84 Nm); risk of damage/injury.

• No internal brake; for vertical axes, add external brake or counterbalance.
