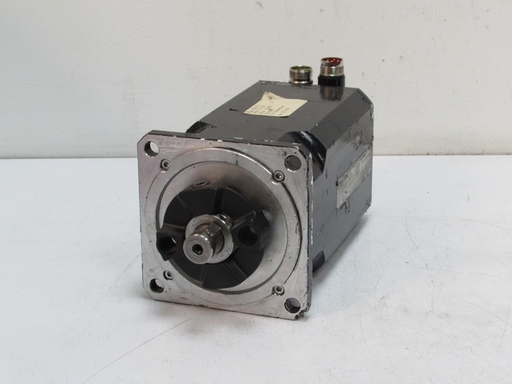

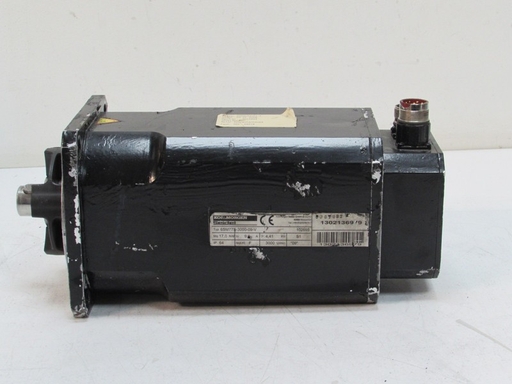

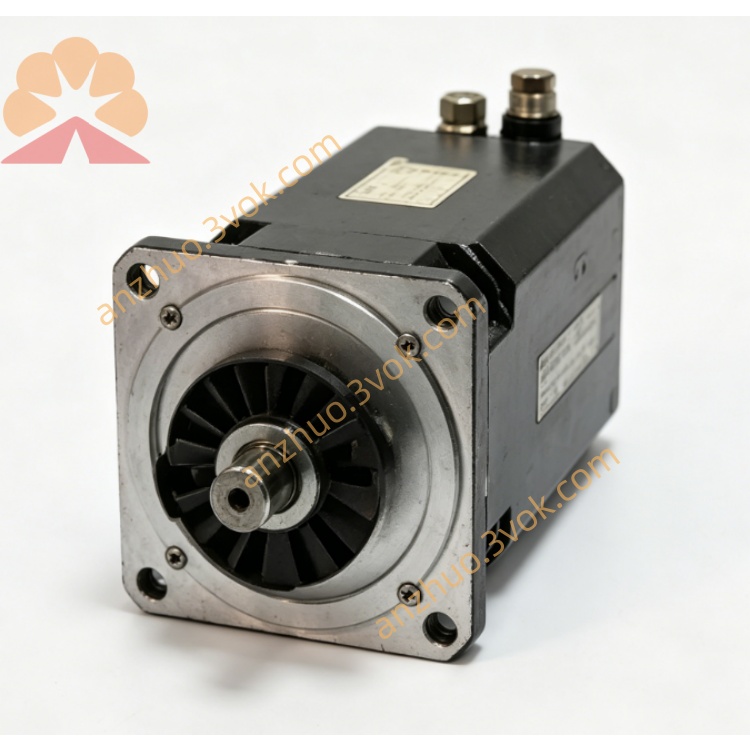

6SM77S-3000-V is a permanent magnet synchronous servo motor by Kollmorgen Seidel, Germany.
Description
6SM77S-3000-V
6SM77S-3000-V is a permanent magnet synchronous servo motor by Kollmorgen Seidel, Germany.
1. Main Parameters
Model: 6SM77S-3000-V
Rated Speed: 3000 rpm
Protection Class: IP64
Flange: Standard square flange
Shaft: With keyway
-V: Special voltage winding / high-voltage version
2. Model Code Explanation
6SM: Seidel servo motor series
77: Stator outer diameter 77 mm
S: Short frame / low inertia
3000: Rated speed 3000 rpm
-V: High-voltage winding (for 400–480 VAC systems)
3. Typical Applications
High-dynamic positioning systems
Packaging, printing, textile machinery
High-speed automation requiring low inertia
400 VAC industrial environments
4. Compatible Drive
Kollmorgen AKD / AKD2G series servo drives (high-voltage variants)
