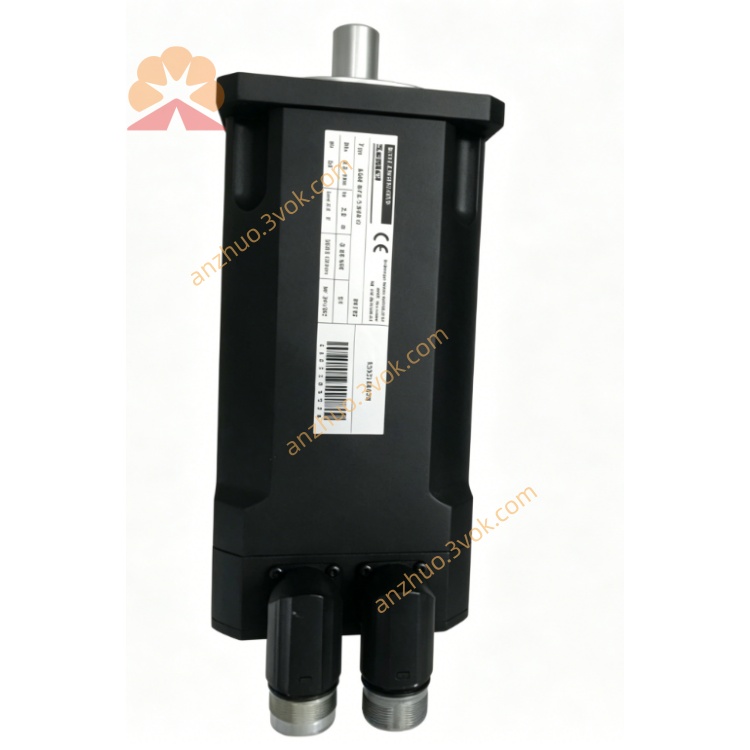

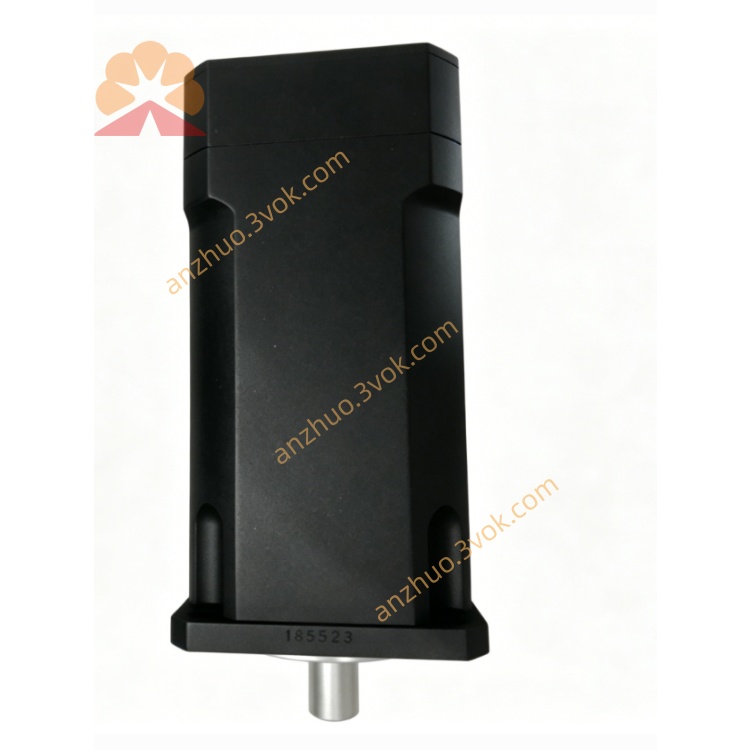

6SM57S‑3.000

1. Main Parameters

• Model: 6SM57S‑3.000 (also 6SM57S‑3000)

• Rated Power: 0.94 kW (940 W)

• Rated Torque: 4.6 Nm

• Rated Speed: 3000 rpm

• Rated Voltage: 330 VAC

• Rated Current: 2.7 A

• Peak Current: 11 A

• Protection Class: IP64

• Flange: 55 mm square (57 mm stator OD)

• Shaft: Standard shaft with keyway

• Weight: approx. 4.5 kg

• Feedback: Resolver (standard)

• Option ‑G: Integrated power‑off brake

2. Model Code Interpretation

• 6SM: Seidel servo motor series

• 57: Stator outer diameter 57 mm

• S: Short frame / low inertia

• 3.000: Rated speed 3000 rpm

• ‑G: Holding brake (spring‑applied, power‑released)

3. Typical Applications

• Precision automation, CNC axes

• Electronic & semiconductor equipment

• Medical devices, packaging machinery

• Medium‑torque, high‑dynamic positioning

4. Matching Servo Drive

• Kollmorgen AKD / AKD2G series servo drives

• Compatible with older S600 / S700 Seidel drives
