2. Type Code Explanation

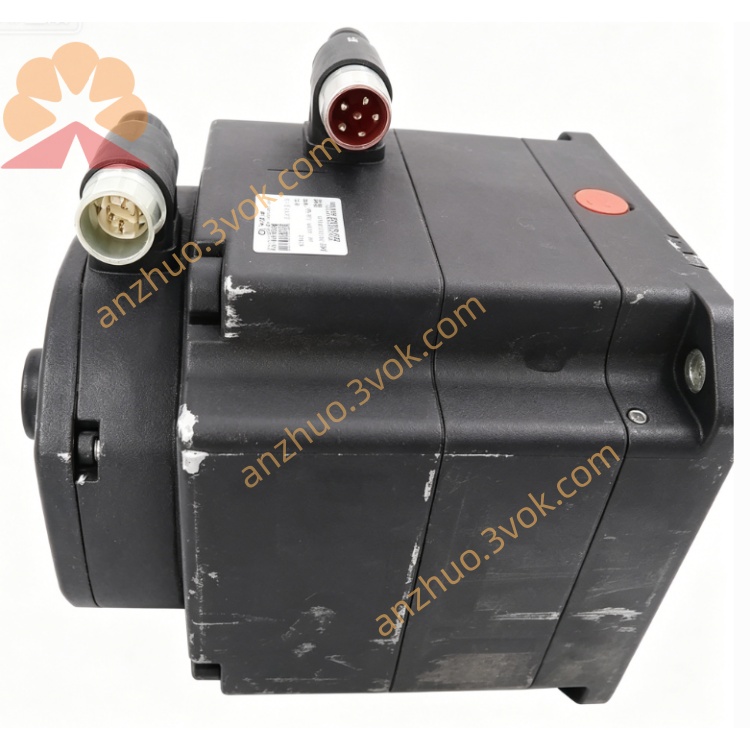

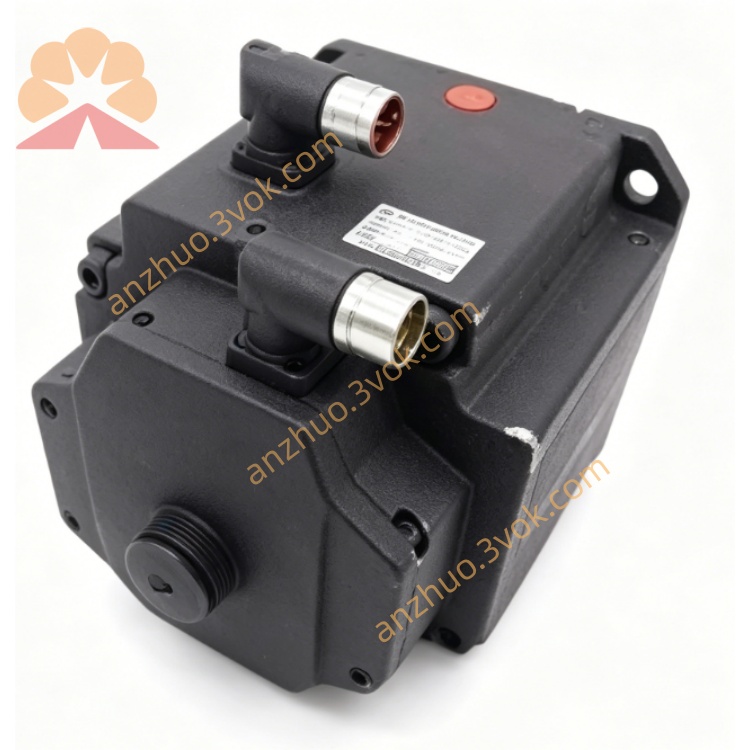

• 1FK7: Compact synchronous servo motor series

• 100: Frame size 100

• 5AZ91: Winding / speed / voltage version

• 1ZZ9: Shaft, flange and mounting configuration

• ZS05: Special option code (custom mechanical/electrical version for KUKA robot axis)

3. Technical Specifications

• Motor type: Permanent magnet synchronous servo motor

• Rated voltage: 3AC 400 V

• Rated speed: 3000 rpm

• Max speed: 4500 rpm

• Rated torque: 4.5 Nm

• Peak torque: 9.0 Nm

• Rated power: 1.4 kW

• Overload capability: 200% short-time overload

• Encoder: Integrated absolute encoder, EnDat interface

• Brake: Integrated holding brake (spring-applied, 24 V DC)

• Shaft: Solid shaft without keyway

• Flange: Standard IM B5 flange mounting

• Insulation class: F

• Protection class: IP65

• Cooling: Natural convection, surface cooling

• Operating temperature: -20 °C ~ +40 °C

4. Mechanical Data

• Frame size: 100

• Mounting: B5 flange, vertical or horizontal installation

• Shaft type: Solid shaft, no key

• Weight: Approx. 6.8 kg

• Vibration grade: R/A

5. Encoder & Feedback

• Encoder type: Absolute rotary encoder

• Interface: EnDat 2.2

• Function: Position, speed and commutation feedback

• No battery required for absolute position after power cycle

6. Holding Brake

• Brake voltage: 24 V DC

• Brake type: Spring-closed, electrically released

• Holding torque: Matched to motor rated torque

• Application: Holding load when power off, prevent axis dropping

7. Application

• KUKA robot external axis and standard axis drive

• Machine tool feed axis

• Handling and packaging automation

• Linear / rotary servo positioning systems

• Compatible with Siemens S120 drive and KUKA KSD1 series drives

8. Installation Instructions

1. Mount motor strictly at B5 flange; avoid mechanical impact on shaft.

2. Align coupling or gearbox precisely to prevent radial/axial overloading.

3. Use shielded power cable and encoder cable, EMC grounding required.

4. Keep ventilation area clear; do not cover motor housing.

5. Check cable bending radius to avoid long-term fatigue damage.

9. Wiring Definition

• Motor power connector: 3-phase U/V/W + PE

• Brake connector: 24 V DC positive / negative

• Encoder connector: EnDat signal, power and shield

10. Safety Instructions

• Disconnect power before wiring or maintenance.

• Wait until motor and drive fully discharged before touching terminals.

• Do not run motor without load test for long time.

• Do not disassemble encoder or brake structure privately.

• Ensure reliable protective earth connection.

11. Maintenance

• Regularly check cable tightness and insulation aging.

• Check motor running noise and temperature rise.

• Verify brake holding performance periodically.

• Keep motor surface clean and dust-free.

12. Common Troubleshooting

• Motor no rotation: Check power wiring, brake release signal, enable signal.

• Overspeed / position deviation: Check encoder cable and EnDat communication.

• Overheat alarm: Check load overload, ventilation blocked or bearing wear.

• Brake not release: Check 24 V brake voltage and wiring.
