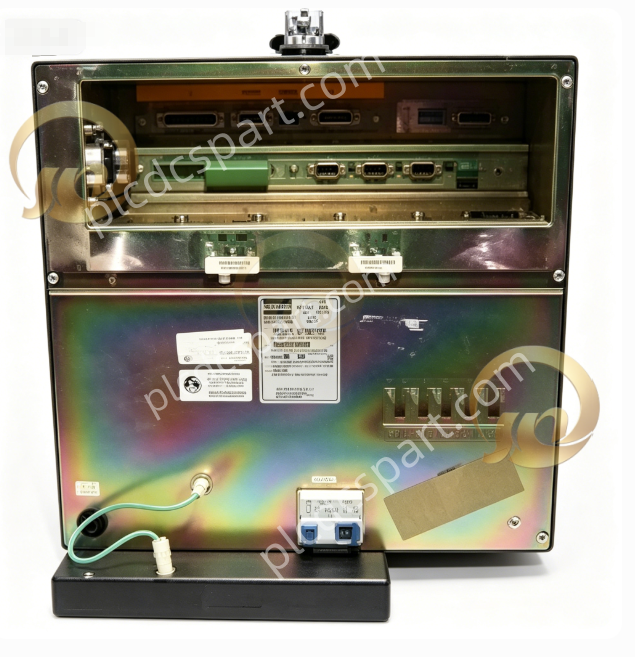

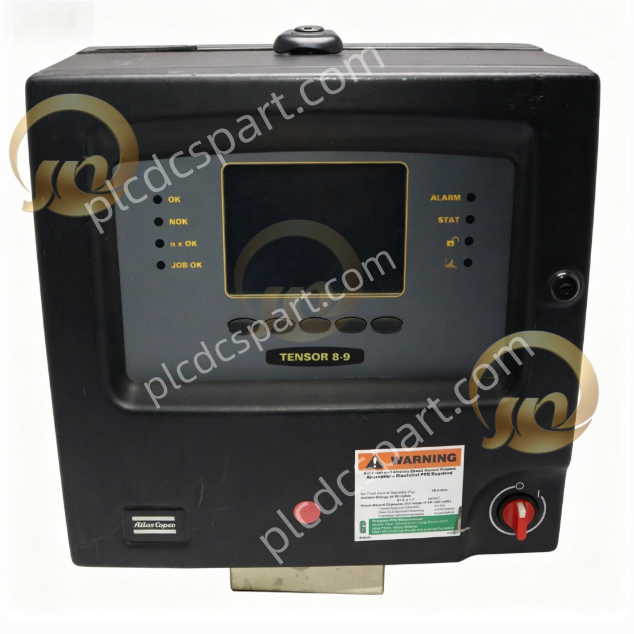

ATLAS COPCO PF3109-G-DN-H

ATLAS COPCO PF3109-G-DN-H is a graphical tightening controller from the Power Focus 3100 series with DeviceNet interface for heavy high-torque fastening applications. It is compatible with Atlas Copco Tensor high-torque nutrunners and delivers stable bus transmission for real-time data exchange with DeviceNet PLC hosts. It supports intuitive curve visualization to display torque-angle profiles for process analysis. This tightening controller adopts cabinet mounting design, and steady bus transmission ensures continuous signal transfer on legacy DeviceNet industrial networks.

The tightening controller stores torque and angle data locally to complete full curve visualization after each fastening cycle. The DeviceNet port of the tightening controller supports simple field wiring layout and maintains consistent bus transmission in traditional automation control systems. Multiple tightening programs can be stored for mixed-model production, and tolerance thresholds of curve visualization can be adjusted to suit thick, high-load bolt joint requirements. The reinforced heavy-duty hardware of the tightening controller sustains reliable operation during long continuous production shifts.

Graphical monitoring capability is the core advantage of ATLAS COPCO PF3109-G-DN-H. The tightening controller keeps precise curve visualization even under frequent program switching. Standard DeviceNet protocol makes the bus transmission compatible with classic DeviceNet master controllers. All tightening parameters can be backed up to shorten production changeover time, and the tightening controller triggers clear alarm prompts once curve visualization captures out-of-torque fastening results. Its wide input voltage range adapts to unstable factory power supply environments.

ATLAS COPCO PF3109-G-DN-H is widely selected for heavy assembly stations and spare replacement. The tightening controller sustains dependable bus transmission without complicated network configuration. Responsive curve visualization helps engineers quickly diagnose fastening anomalies and optimize parameters. It inherits verified control logic of the PF3100 series, and this tightening controller is a reliable choice for trucks, construction machinery and large steel structure fastening work.
