2. Key Specifications

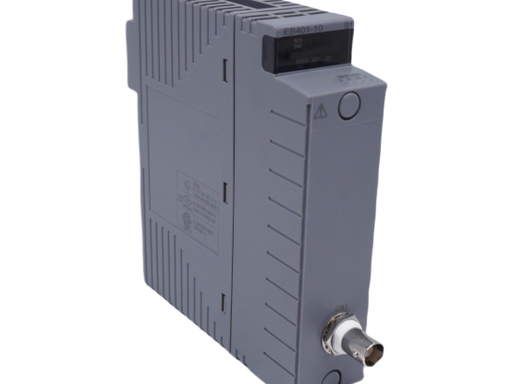

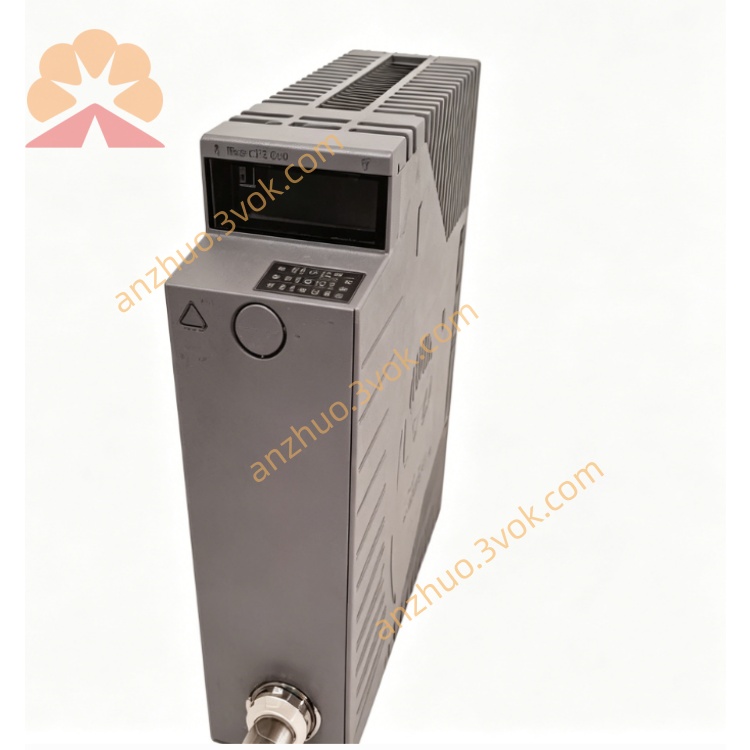

• Model: EB401-10 (S1)

• Function: ER Bus master interface

• Physical Layer: IEEE 802.3 10BASE-2 (coaxial)

• Connector: 1 × BNC

• Communication Speed: 10 Mbps

• Max. Distance: 185 m (with YCB141 cable)

• Current Consumption: 0.7 A (≈6 W)

• Weight: 0.3 kg

• Dimensions (W×H×D): 32.8 × 130 × 144.5 mm

• Installation: DIN-rail / rack-mount

• Enclosure Rating: IP20

• Operating Temperature: 0°C to +55°C

• Storage Temperature: -20°C to +70°C

• Humidity: 5%–95% RH (non-condensing)

• Certifications: CE, UL, RoHS

3. Redundancy & Configuration

• Dual Redundancy: Install two EB401-10 modules in the same host unit for redundant ER Bus operation (automatic failover <100 ms).

• Single Configuration: Use one module in an odd-numbered slot of ANB10/AFF50; cover the adjacent slot with a dummy module (ADCV01).

• Topology: Supports up to 4 ER Bus segments branched from the FCU.

4. Included Accessories

• 1 × T-connector (YCB146)

• 2 × Terminators (YCB148)

5. Diagnostic & Protection

• Self-diagnostics: Real-time monitoring of power, communication, and hardware status.

• LED Indicators: For POWER, RUN, RDY, ERR, COM status.

• Protection: Overvoltage, overcurrent, short-circuit protection.

6. Application

• System: CENTUM CS3000 (R3 and later)

•
