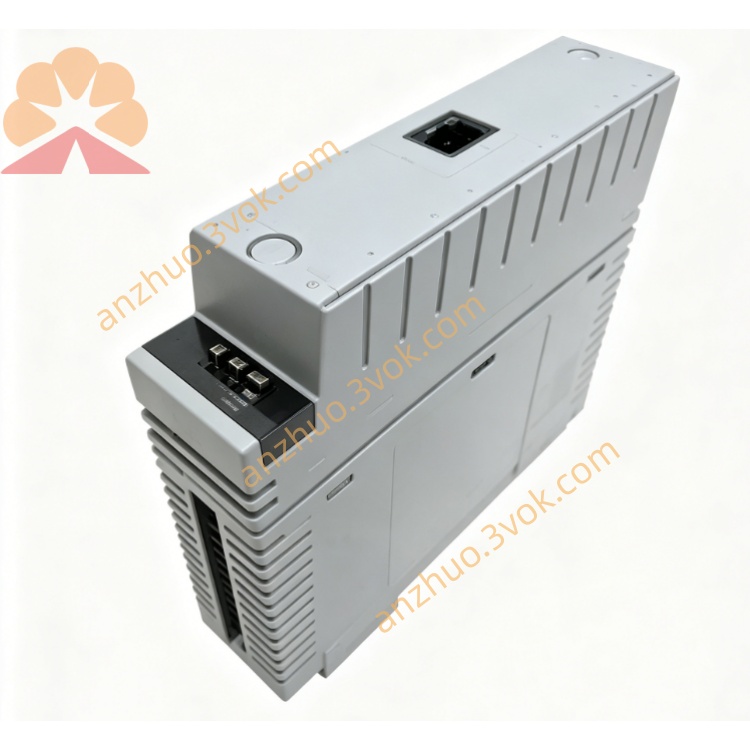

ALE111-S50
General Description
ALE111-S50 is a Yokogawa Ethernet Communication Module used for CENTUM VP DCS system. It provides 10BASE-T Ethernet interface for data communication between FCS and external subsystems, PLC and other network devices. The module adopts rack mounting design, supports hot swap, and is widely used in chemical, power, metallurgy and oil & gas process industries.
Description
Basic Specifications
Model: ALE111-S50Module Type: Ethernet Communication ModuleCommunication Standard: IEEE 802.3 10BASE-TCommunication Speed: 10 MbpsTransmission Mode: Half duplexInterface: RJ45Transmission Cable: Unshielded twisted pairMaximum Transmission Distance: 100 mSystem Compatibility: CENTUM VP, FA-M3 seriesInstallation Rack: ANB10, ANR10, AFF50, AFV series racksPower Supply: Backplane power supplyOperating Temperature: 0 °C to +55 °CStorage Temperature: -20 °C to +60 °CRelative Humidity: 10% to 90% RH, non-condensingWeight: Approximately 0.3 kg
Main Features
Support 10 Mbps Ethernet communication for interconnection between DCS and third-party equipment.Compliant with IEEE 802.3 standard, stable and reliable for industrial network communication.Support hot swapping, module replacement without stopping system operation.Industrial isolation design, strong anti-interference ability, suitable for long-term continuous operation in control room.Compact structure, standard rack installation, easy wiring and maintenance.
Model Suffix Definition
S stands for standard type5 means non-explosion proof configuration0 represents basic standard version
Typical Application
Realize network communication between CENTUM VP DCS and PLC, instrument subsystem and upper monitoring system.Apply to industrial automation control network of electric power, chemical industry, petroleum, metallurgy and pharmaceutical industry.Used for data exchange and remote communication between on-site control stations and engineering stations.
