Basic Specifications

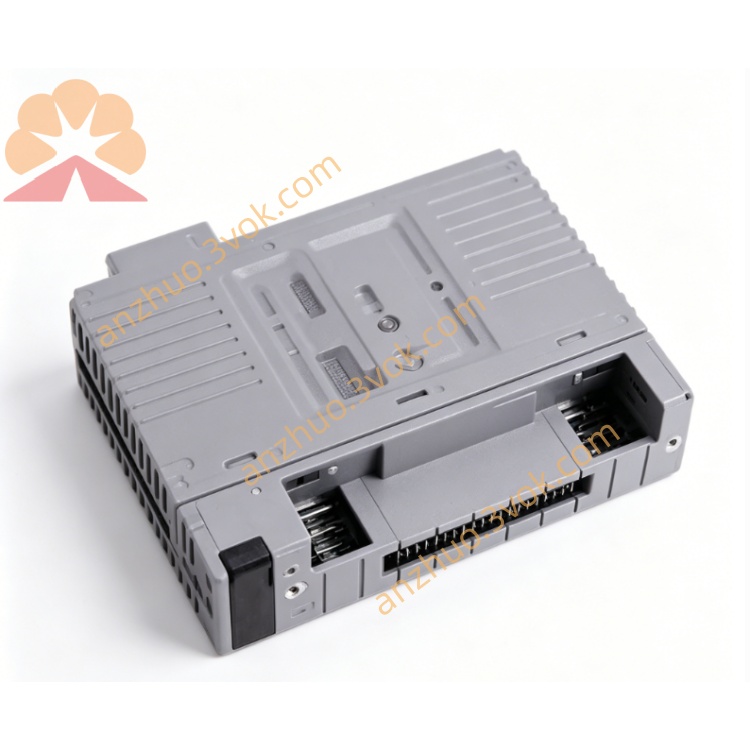

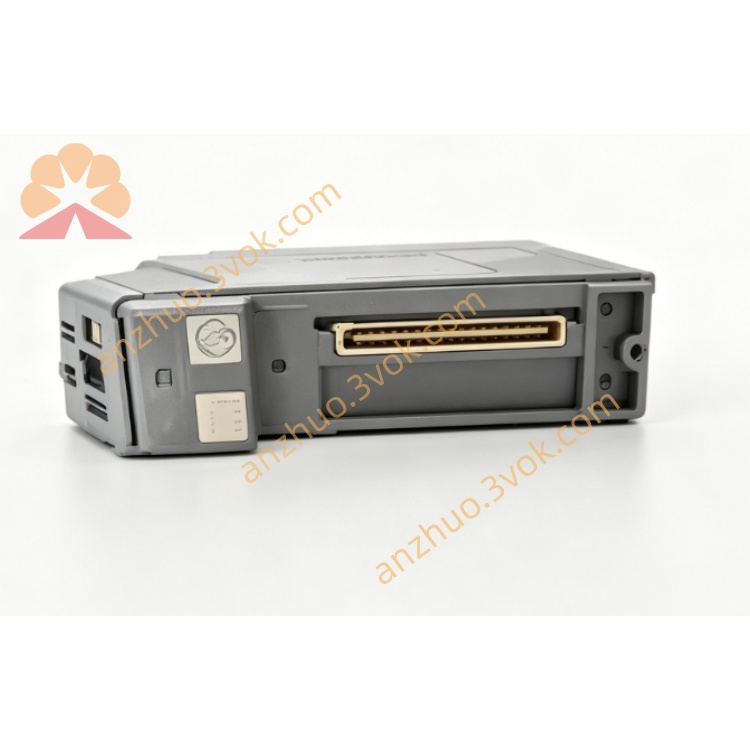

Model: AAI543-H61/K4A00

Type: Analog Output Module

Channels: 16 channels, fully isolated

Output Signal: 4–20mA DC (load 0~750Ω)

HART Protocol: Supported (can communicate with HART intelligent valves / positioners)

Accuracy: ±48μA (full scale ±0.12%)

Update Cycle: 10ms

Isolation Voltage: Output - System 1500V AC / 1 minute

Operating Temperature: -20°C ~ +60°C (wide temperature range)

Redundancy Support: Dual redundancy, standard switching speed

Open Circuit Detection: Alarm when <0.65mA

Power Consumption: 5V → 230mA; 24V→540mA

Dimensions / Weight: 107.5 × 32.8 × 130mm / 0.4kg

Certifications: CE, UL, CSA, ATEX

Model suffix interpretation

H: With HART protocol

6: Wide temperature range (-20~+60°C)

1: Supports redundancy, standard switching

K4A00: Specific configuration / terminal specification (pressure clamp terminal, KS1 cable adapter) Core function

16-channel isolation control output: Precise 4–20mA drive for valves, solenoid valves, actuators, fully isolated and anti-interference.

HART communication: Enables remote parameter setting, diagnosis, and status transmission for HART intelligent valves, reducing on-site maintenance.

Redundancy and fault tolerance: Dual-module redundant configuration, automatic fault switching, zero downtime, suitable for critical control loops.

Wide temperature adaptation: -20°C to + 60°C, suitable for harsh temperature environments such as control rooms and on-site cabinet spaces.

Open-circuit diagnosis: Automatic detection and alarm for output disconnection / abnormal load, facilitating rapid fault troubleshooting.

Comparison with common models

AAI543-H61/K4A00: With HART, wide temperature range, redundancy, high-performance critical loop.

AAI543-H00: With HART, standard temperature range, non-redundant, conventional HART measurement point.

AAI543-S00: Without HART, standard temperature range, non-redundant, low-cost conventional output.

Application scope

DCS system: CENTUM VP/CS 3000, compatible with ANB10S/ANB11S and other FIO nodes.

Process industry: Chemicals, oil and gas, power, metallurgy, pharmaceuticals, etc. critical control loops (such as flow / pressure / level regulation).

Intelligent valve control: Connect HART intelligent positioners, valves, achieving remote operation and maintenance.

Redundancy + wide temperature scenario: No downtime allowed, high reliability system with large temperature fluctuations.

Installation and maintenance

Installation key points

Power off / anti-static installation, DIN rail or backplane installation, torque 0.8–1.2N・m.

Wiring: 4–20mA output to actuators, single-ended grounding of shield layer; redundant mode requires matching redundant modules of the same model.

Power-on self-check: Green LED normal, redundant synchronization, normal HART communication.

Maintenance suggestions

Daily: Check LED, redundant status, loose / corroded wiring.

Quarterly: Clean dust, recheck terminal torque, test redundant switching and HART communication.

Annual: Precision calibration, open-circuit detection function test, aging assessment.

Safety precautions

Only certified electrical personnel operate, comply with safety regulations.

Do not plug or unplug while powered on, prevent module damage and electric shock.

When there is a fault, immediately power off for troubleshooting, redundant faults need to be checked simultaneously on the main and backup modules.

Use Yokogawa original accessories, non-original parts affect performance and safety.
