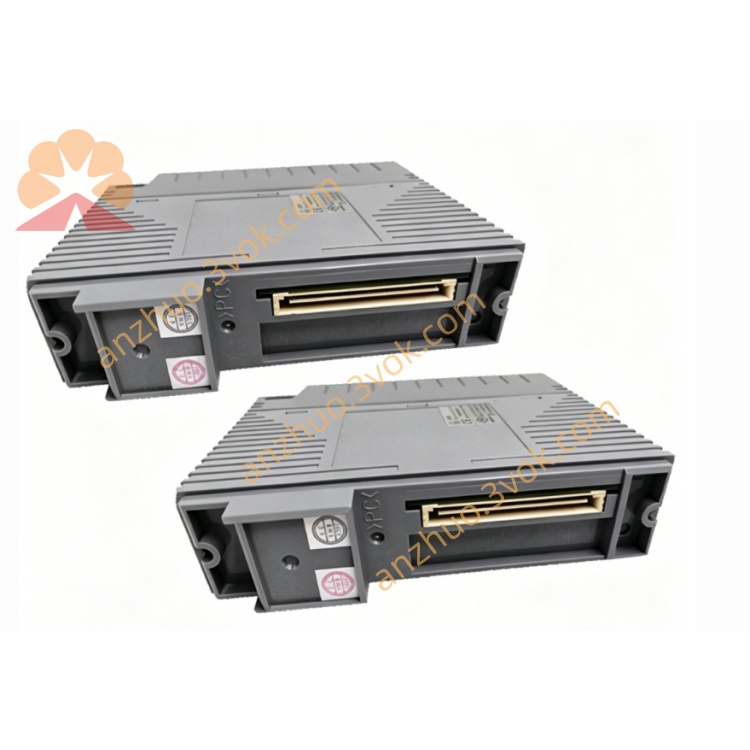

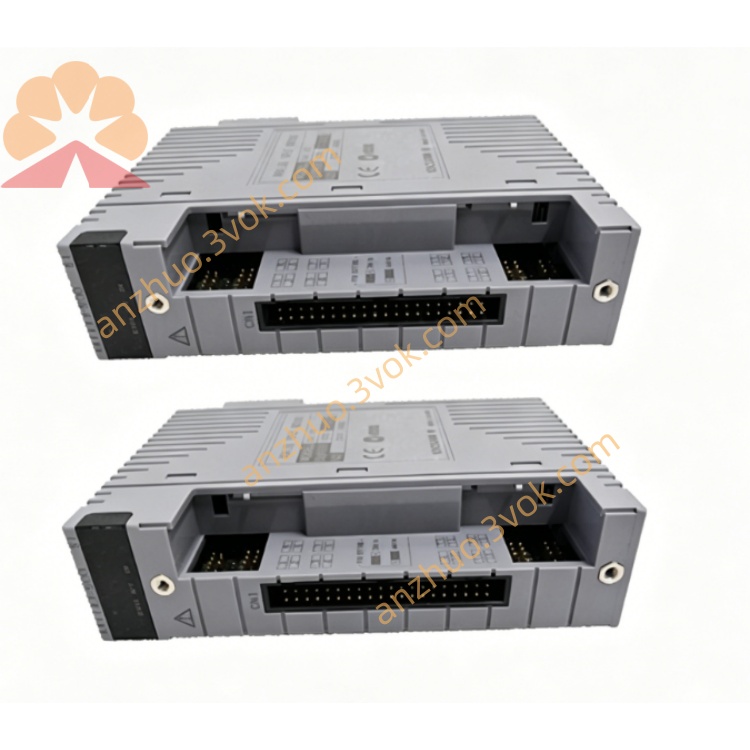

Yokogawa AAI143-S00

General Description

Specifications

• Model: AAI143-S00

• Type: Analog Input Module

• Channels: 16, fully isolated

• Input Signal: 4–20mA DC (max. 24mA)

• HART Protocol: Not supported (key difference from H53)

• Accuracy: ±16μA (typical)

• Update Period: 10ms

• Isolation Voltage: 1500V AC for 1 minute (input-to-system)

• Transmitter Power: 19–25.5V DC (2-wire/4-wire compatible)

• Operating Temperature: -10°C to +55°C (standard industrial)

• Power Consumption: 230mA @5V; 540mA @24V

• Dimensions/Weight: 107.5×32.8×130mm / 0.3kg

• Certifications: CE, UL, CSA

Model Suffix Definition

• S: Standard type

• 0: Basic type (no HART, no explosion protection, no wide temperature)

Key Features

1. High-Density Isolated Acquisition: 16 fully isolated channels for accurate 4–20mA measurement from temperature, pressure, flow, and level sensors.

2. Non-HART Design: Analog-only acquisition with lower cost, ideal for points without remote diagnostics needs.

3. Robust Isolation: High isolation between channels and input-to-system suppresses EMI/RFI for reliability in harsh environments.

4. Fast Response: 10ms high-speed sampling supports closed-loop control and real-time monitoring.

5. Standard Temperature Range: -10°C to +55°C for general control room environments.

Applications

• DCS Systems: CENTUM CS 3000/VP series; seamless integration with Yokogawa platforms.

• Process Industries: Chemical, oil & gas, power, water treatment, metallurgy for general parameter monitoring.

• Sensor Interfacing: Connects 4–20mA transmitters (temperature, pressure, level, flow).

• Cost-Effective Solutions: Dense I/O, no HART diagnostics, budget-sensitive projects.

Installation & Maintenance

Installation

1. Power off; use ESD protection (ground ≥1MΩ).

2. Mount on DIN rail or panel; torque to 0.8–1.2N·m.

3. Wiring: 2-wire/4-wire transmitters; shield ground at one end.

4. Power-on self-test: Green LED = normal; no alarms.

Maintenance

• Daily: Check LED status, loose/corroded terminals.

• Quarterly: Clean dust, verify torque.

• Annual: Calibrate accuracy, assess aging; replace if needed.

Safety Precautions

• Qualified personnel only: Installation, wiring, and maintenance per safety standards.

• No hot swapping: Power off before insertion/removal to avoid damage and shock.

• Alarm response: Power off immediately for faults; do not force restart.

• Genuine parts: Use Yokogawa original components; non-genuine parts void performance and safety.
