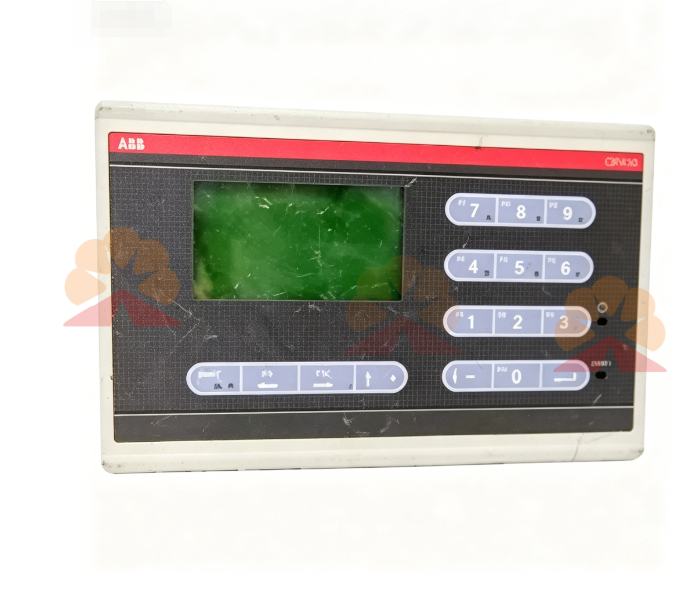

The ABB CP410‑M is legacy text‑graphic operator terminal of ABB CP400 HMI product family, model CP410‑M is frequently used industry writing form, hardware is fully consistent with CP410M, part number 1SBP260181R1001. It is mainly paired with AC500 PLC for small‑and‑medium automation projects. As local human‑machine interaction unit, it converts internal bus data into readable display content for on‑site operators, supporting real‑time process value viewing, operating parameter adjustment, fault alarm query and manual command issuing. It is widely used for spare‑parts replacement and renovation of aging automation equipment.

This HMI adopts 3‑inch monochrome STN‑LCD with LED backlight, display format 20 characters per line, total 10 display lines, fitted with 16 long‑life customizable mechanical function keys. Power input 24VDC ±15%, power consumption below 8VA. Front‑face protection grade reaches IP65 for cabinet door installation, resisting workshop dust and liquid splashing; rear side keeps IP20 protection. Built‑in multi‑functional serial communication interface supports Modbus‑RTU and Modbus‑ASCII protocols for data interaction with PLC, inverters and other automation devices. Project configuration is completed via CP400Soft configuration software, supporting multi‑level password authority management. 4MB Flash memory stores application project, real‑time clock module records alarm time stamp.

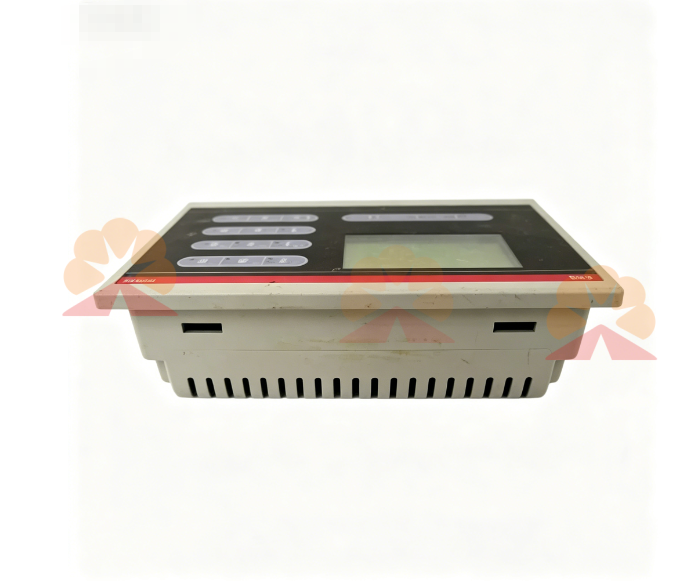

Compact cabinet flush‑mount installation mode is adopted. On‑board LED indicator lamps clearly display power‑on and communication status, helping maintenance technicians rapidly judge communication and hardware faults. Operating ambient temperature ranges 0‑50℃, storage temperature‑10‑60℃, adapting to ordinary industrial workshop environments. When hardware aging failure occurs, technicians can complete disassembly and replacement according to installation specifications. Pre‑compiled project files can be downloaded after swapping without large‑scale modification to control system.

It is widely deployed in packaging machinery, food‑beverage automation, textile equipment and pulp‑paper auxiliary production lines. Typical application scenarios include local operation station for small automation units, hardware renewal for aging equipment and spare‑parts stocking for critical continuous‑running production assets. Once CP410‑M malfunctions, local on‑site monitoring and manual operation functions will be lost, affecting on‑site emergency handling efficiency. Equipping qualified spare operator panels effectively mitigates operation risks caused by HMI hardware faults.

Every ABB CP410‑M undergoes strict pre‑delivery functional tests including power‑on aging test, keyboard key‑life inspection, display performance verification and serial communication simulation test. Products adopt shock‑resistant anti‑static export‑grade packaging with traceable logistics records. Original datasheet is not attached by default; relevant technical documentation can be provided upon request. Mixed consolidated shipment is available alongside other ABB AC500 and CP400 series spare parts for one‑stop spare‑parts procurement for plant operators.
